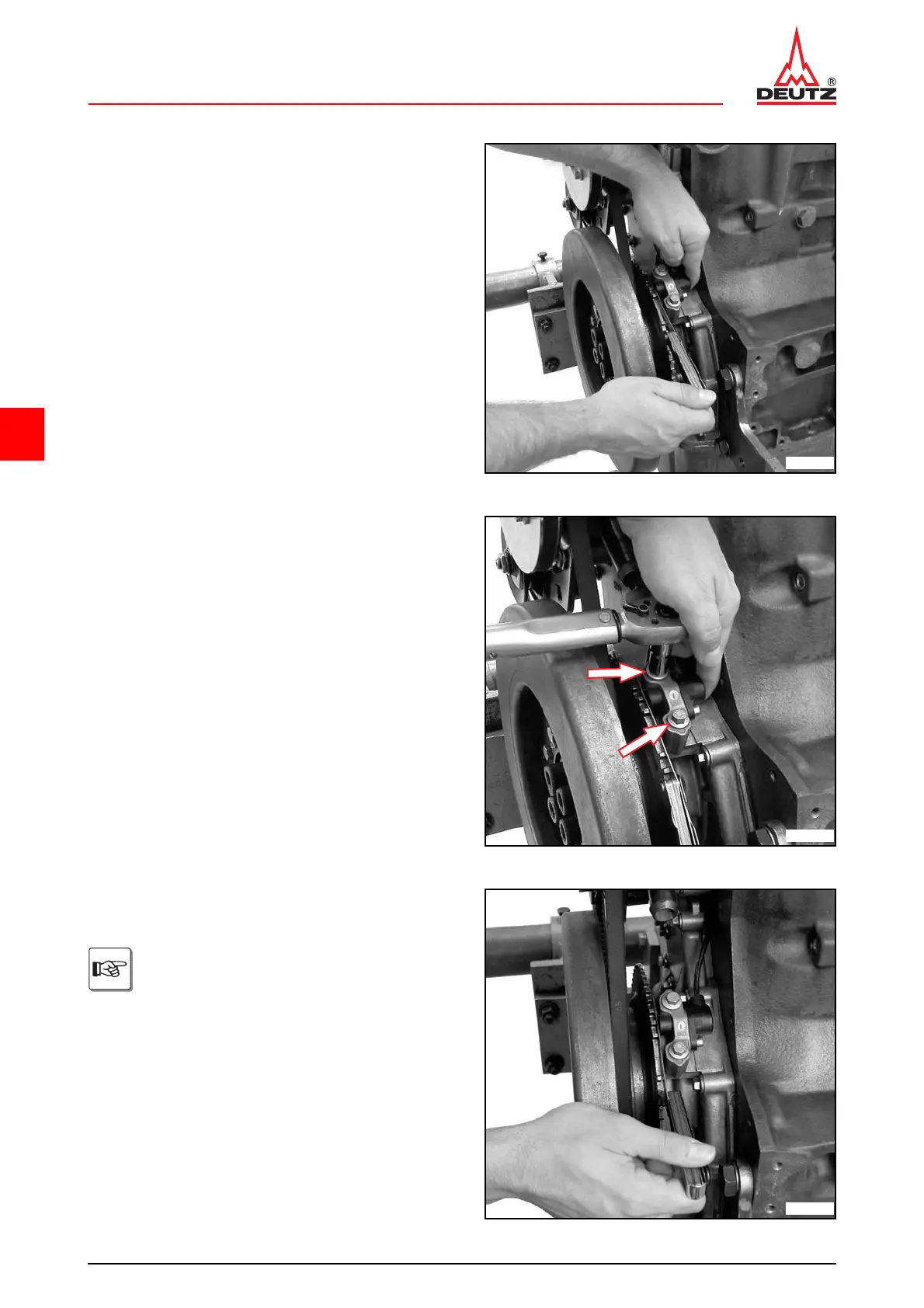

Set gap dimension for impulse transmitter
(crankshaft)
● Push feeler gauge blade between tooth lock washer
and impulse transmitter.
● Press the impulse transmitter lightly against the feel
-
er gauge blade.
 0,6 mm
© 44092-0
+0.1
-0.1
● Press the impulse transmitter lightly against the feel
-
er gauge blade.
● Tighten screws (arrows).
 20 Nm
© 44093-0
● Check gap dimension with feeler gauge blade.
 0,6 mm
The feeler gauge blade must fit between
the tooth lock washer and impulse trans
-
mitter (crankshaft) with low resistance.
© 44094-0
+0.1
-0.1
