Deutz TCD 2013 2V - Page 74

© 02/2010 OBJ_DOKU-21748-001.fm
1/2
6
Crankcase
TCD 2013 2V W 01-05-01
Checking the overhang of the cylinder liner
8190
Standard tools
Special tools:
– Dial gauge 100400
– Measuring device 100750
– W 08-03-01
Checking the overhang of the cylinder liner
● Remove cylinder head.
 W 08-03-01

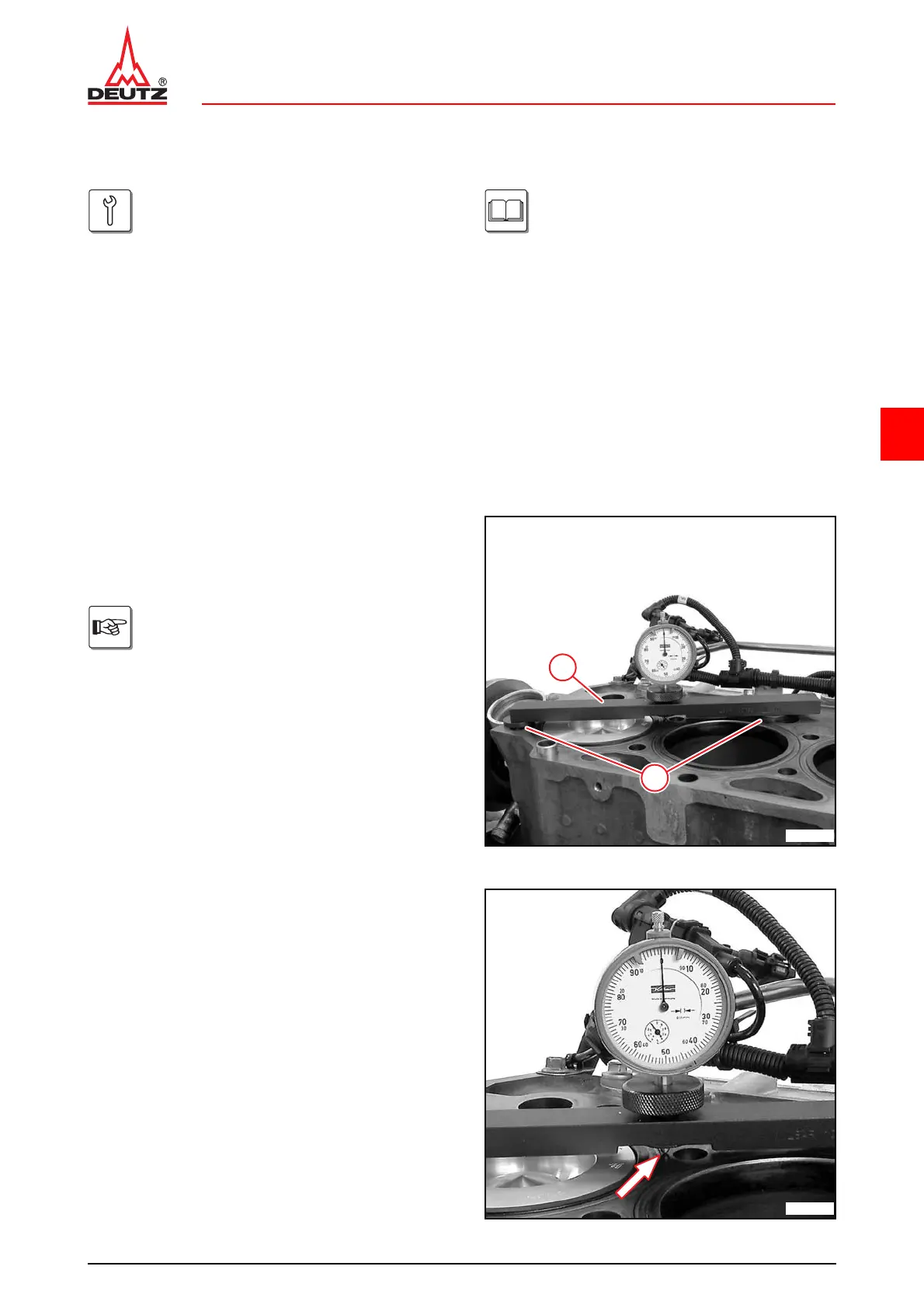

● Place shims (1) and measuring beam (2) on the seal
-
ing surface of the crankcase.
● Insert dial gauge into measuring beam.
● Fix dial gauge with knurled nut.
The cylinder liner must be pressed in the
crankcase to the stop.
1
2
© 44071-0
● Apply stylus of the dial gauge to the crankcase seal
-
ing surface with pre-tension (arrow).
● Adjust dial gauge to "0".
© 44072-0
