Crankcase
TCD 2013 2VW 01-05-01

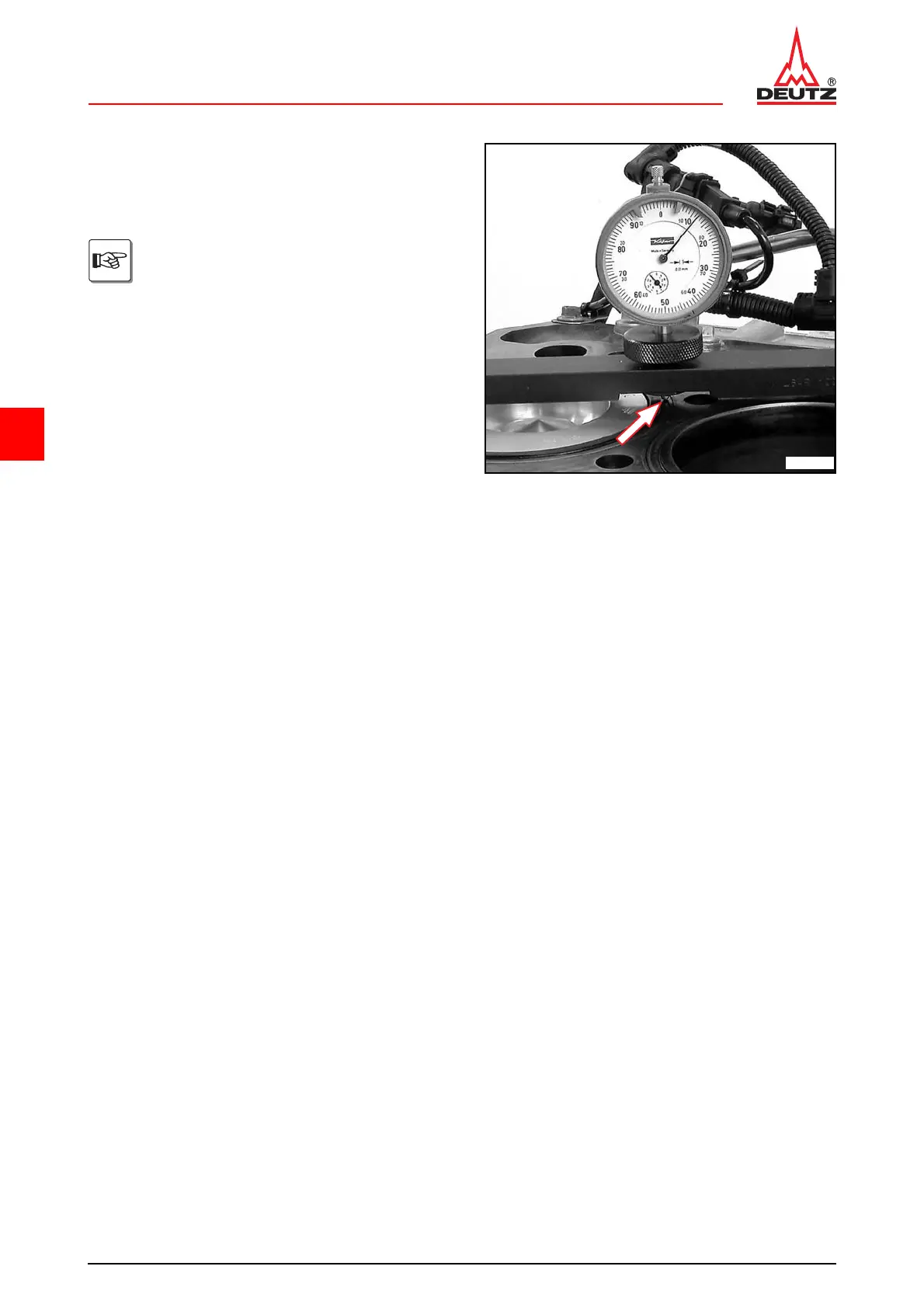

● Move the measuring beam and spacing washers un
-
til the stylus (arrow) is touching the sealing surface of
the cylinder liner.
0,03 - 0,08 mm
● Install cylinder head.
W 08-03-01
Make measurements at at least 3 other
points on the cylinder liner.
When the wear limit is reached, the
cylinder liner must be renewed.
