Crankcase
TCD 2013 2V W 01-13-01
Checking collar contact for cylinder liner
Standard tools:
– Micrometer gauge
– Depth-measuring
appliance
– W 04-01-01
Checking the collar rest for the cylinder liner
● Remove cylinder liner.
 W 04-01-01

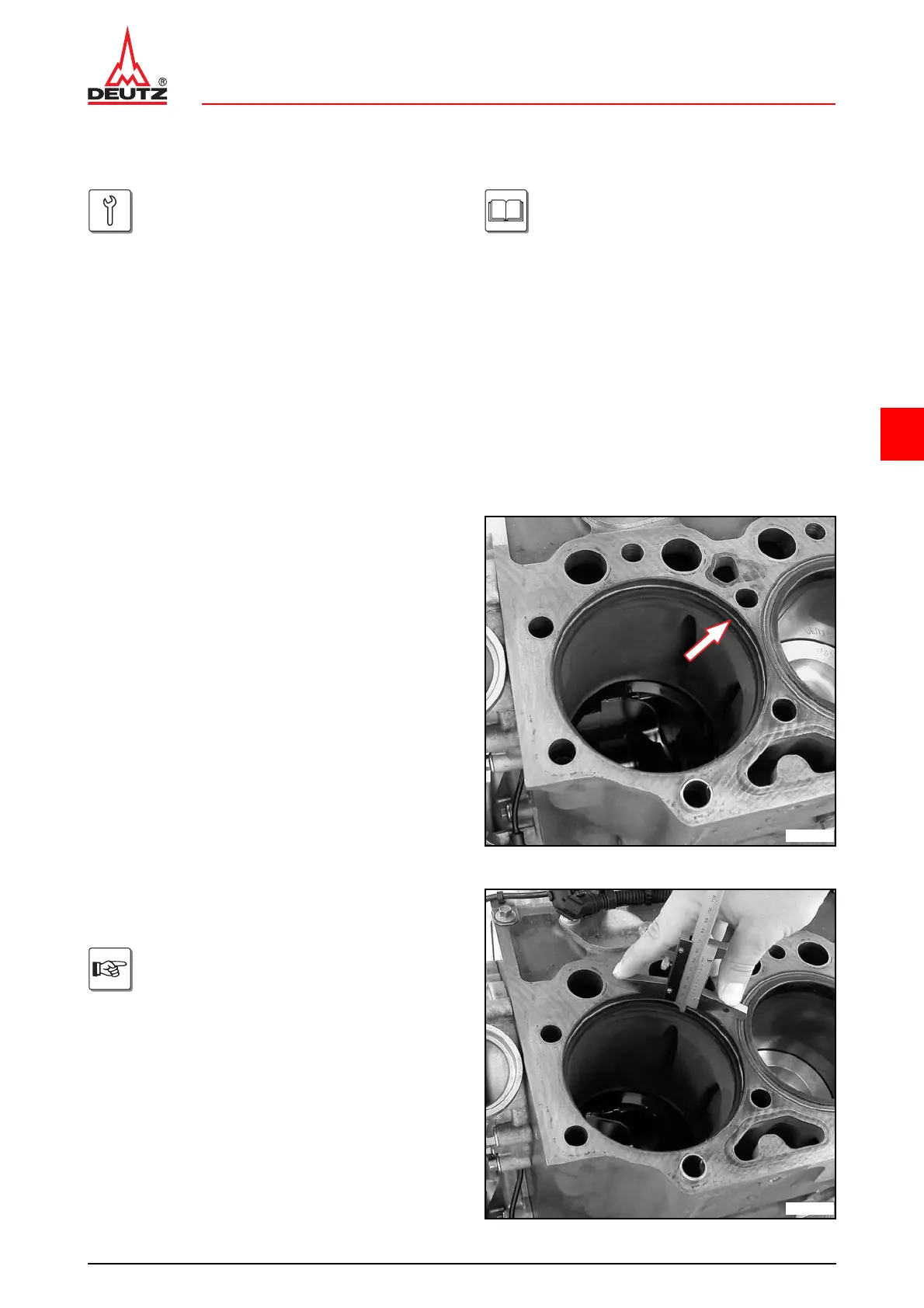

● Visually inspect collar rest (arrow).
● Visually inspect sealing surface.
© 44076-0
● Measure collar rest with depth measuring appliance.
 8,92 mm
Measure collar rest at several points.
© 44077-0
+0.03
-0
