Cylinder liner
TCD 2013 2V W 04-01-01
Removing and installing the cylinder liner
8190
Standard tools
Special tools:
– Extraction tool, universal 150170
– Tension plate 150171
– Assembly lever 150190
– Washer 150191
– Fitting compound
DEUTZ AP1908
– W 01-05-01
– W 01-13-01
– W 04-01-02
– W 06-01-01
Collect leaking operating substances in
suitable vessels and dispose of according
to regulations.
Lubricating oil and coolant must be filled
according to the instructions in the opera
-
ting manual.

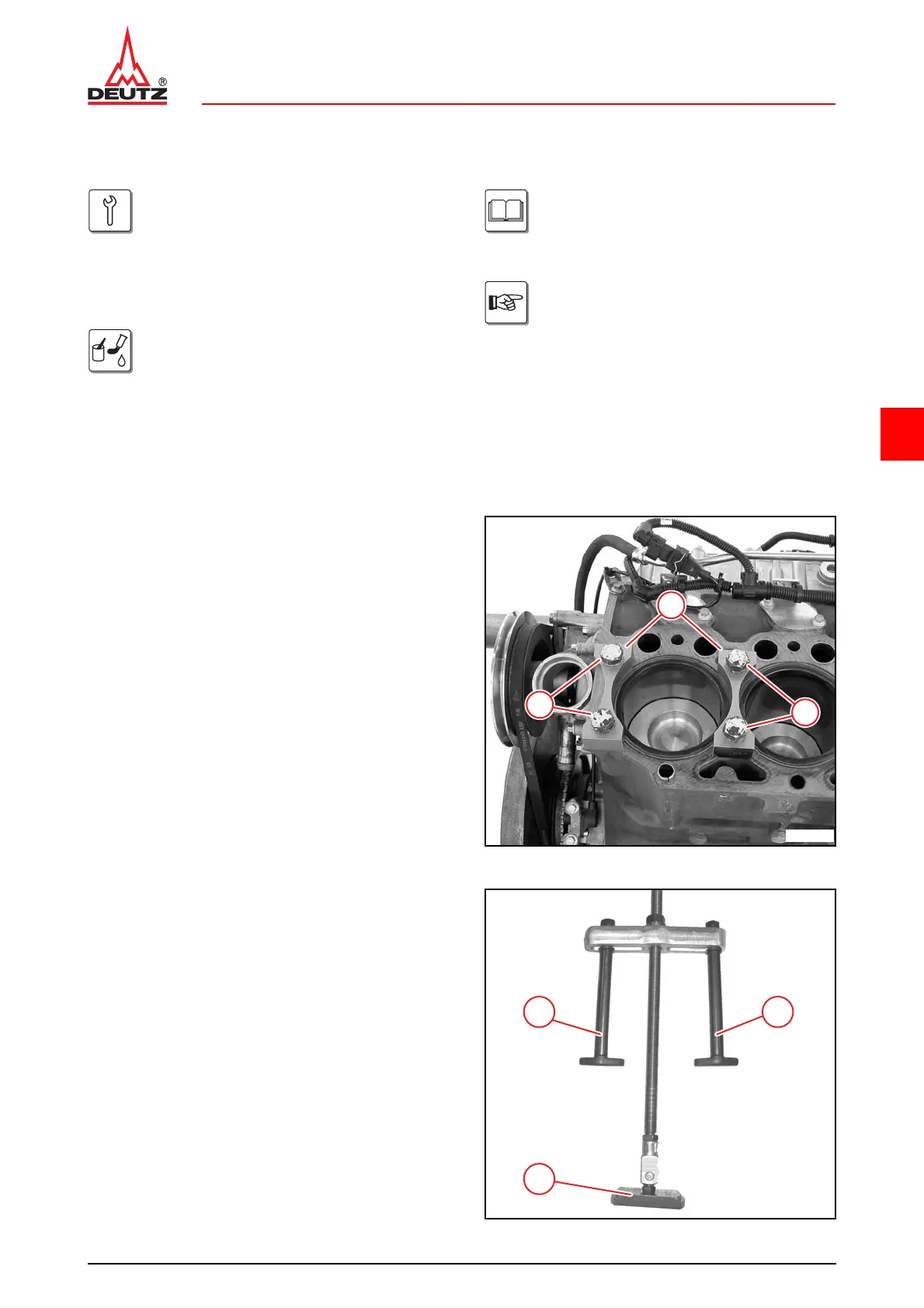

Removing the cylinder liner
● Remove piston and connecting rod.
 W 06-01-01
● Unscrew screws (1).
● Remove the liner holder (2).
1
1
2
© 44260-0
● Pre-mount the disassembly device
– Mount the plate (1) on the disassembly device
– Adapt the counter support (2) according to the di
-
ameter of the cylinder liner.
1
22
© 43564-0
