Cylinder liner
TCD 2013 2V W 04-01-02
Testing the cylinder liner
Standard tools:
– Micrometer gauge
– Internal measuring device
Special tools:
– Dial gauge 100400
– W 04-01-01
– W 06-01-01
– W 08-03-01
The crankshaft bearing covers must be
mounted properly for measuring the
cylinders.

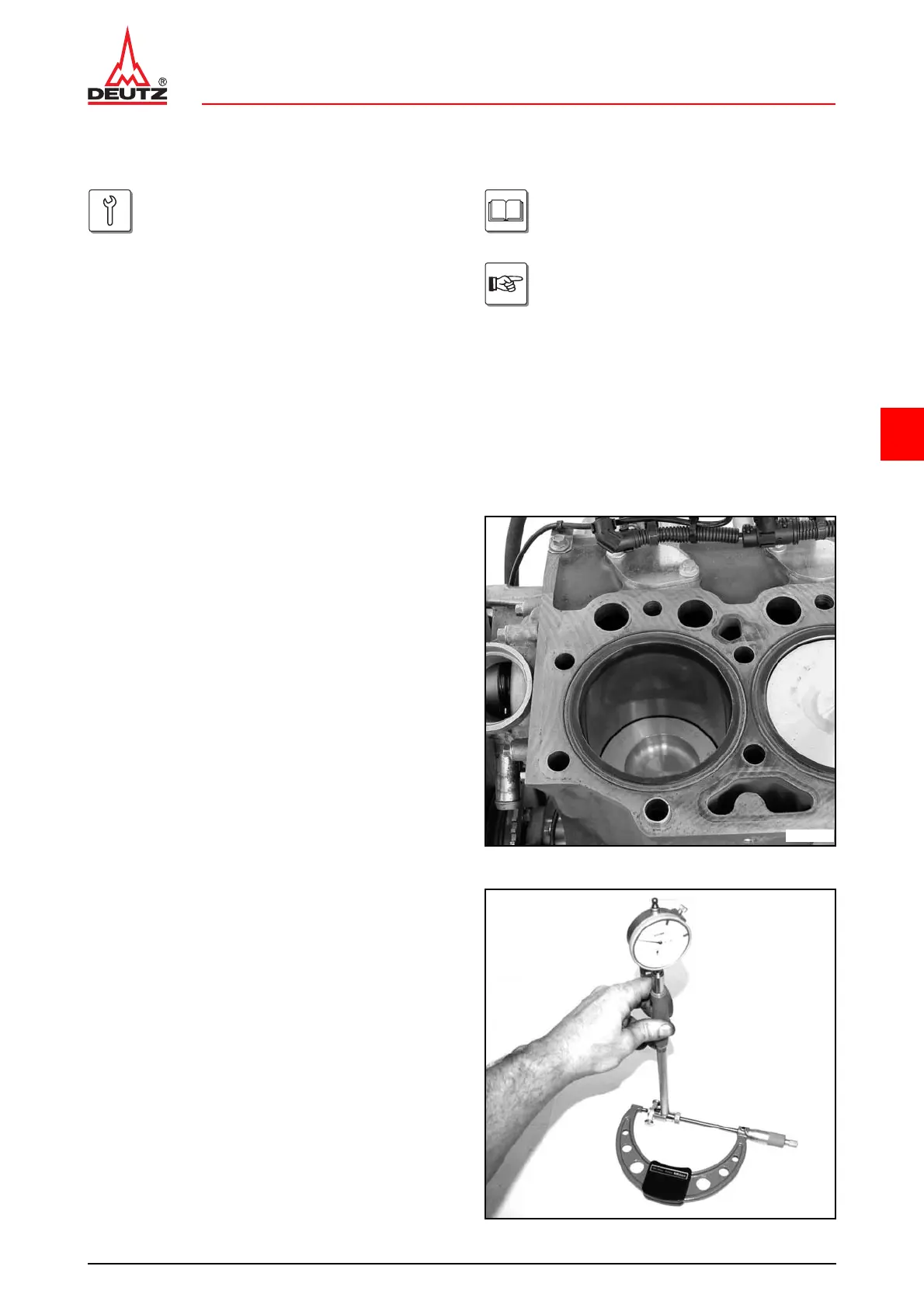

Testing the cylinder liner
● Remove cylinder head.
 W 08-03-01
● Check cylinder liner for visible signs of wear.
● Remove piston and connecting rod.
 W 06-01-01
© 44074-0
● Prepare internal measuring device:
– Mount probe bolt for the appropriate measuring
range in the internal measuring device.
– Mount dial gauge with approx. 1 mm pre-tension in
the internal measuring device.
– Set micrometer gauge to 108 mm.
– Balance the internal measuring device between
the test surfaces of the micrometer gauge and set
the dial gauge at the reversal point of the pointer to
"0".
