Deutz TCD 2013 2V - Page 97

© 02/2010 OBJ_DOKU-21754-001.fm
2/4
6

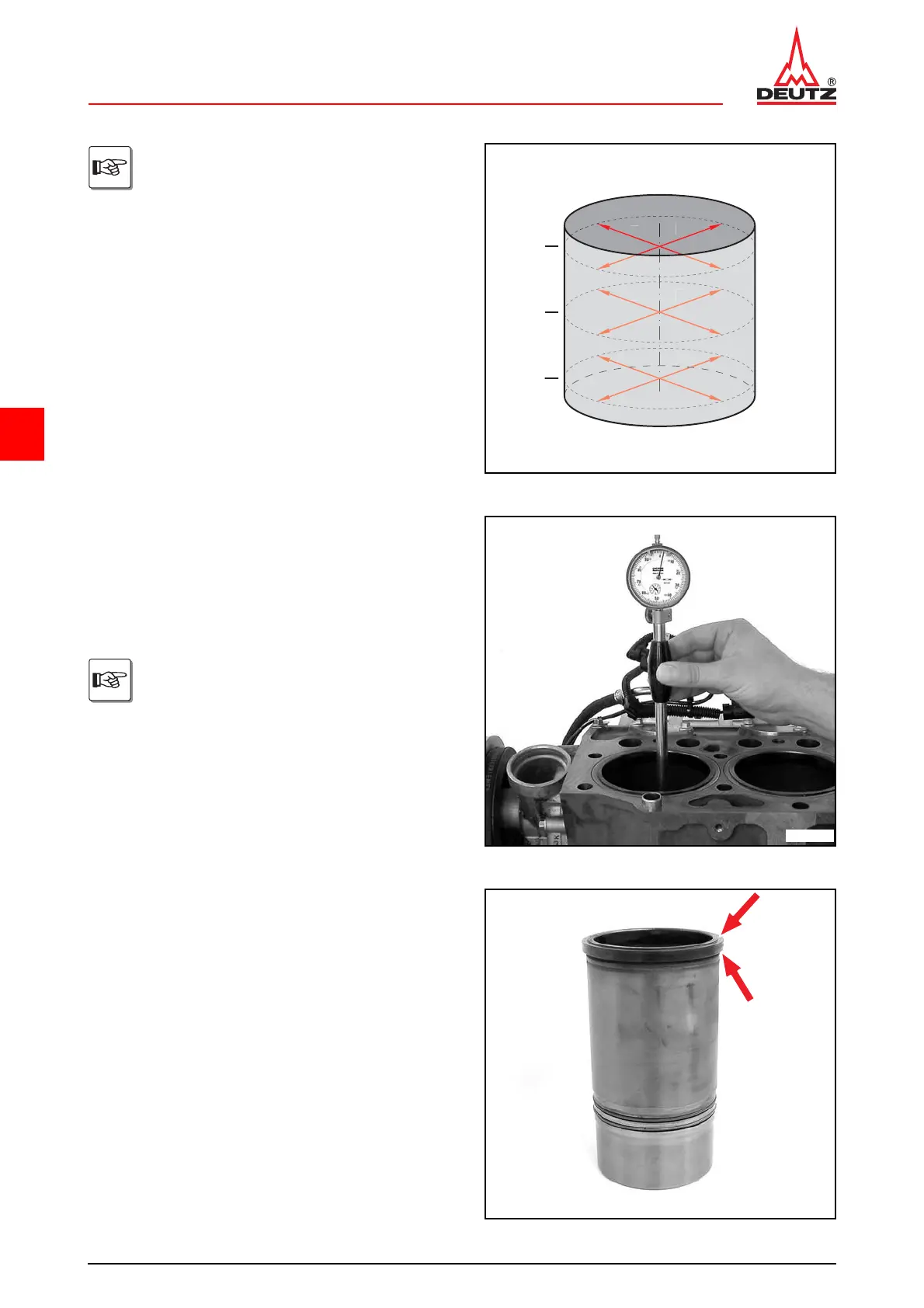

Cylinder liner
TCD 2013 2VW 04-01-02
Diagram for measuring the cylinder
running surface at the points "a" and "b" in
the levels "1" - "3".
1
2
3
a
b
aa
a
bb
b
© 39100-1
● Insert internal measuring device in cylinder.
● Balance the internal measuring device at the given
measuring points and read off the measured value at
the reversal point of the pointer.
● Compare actual value with setpoint value.
 108 mm
● Remove cylinder liner.
 W 04-01-01
When the wear limit is reached, the
cylinder liner must be renewed.
© 44075-0
+0.02
-0
● Visually inspect sealing surfaces (arrows).
© 44078-0
