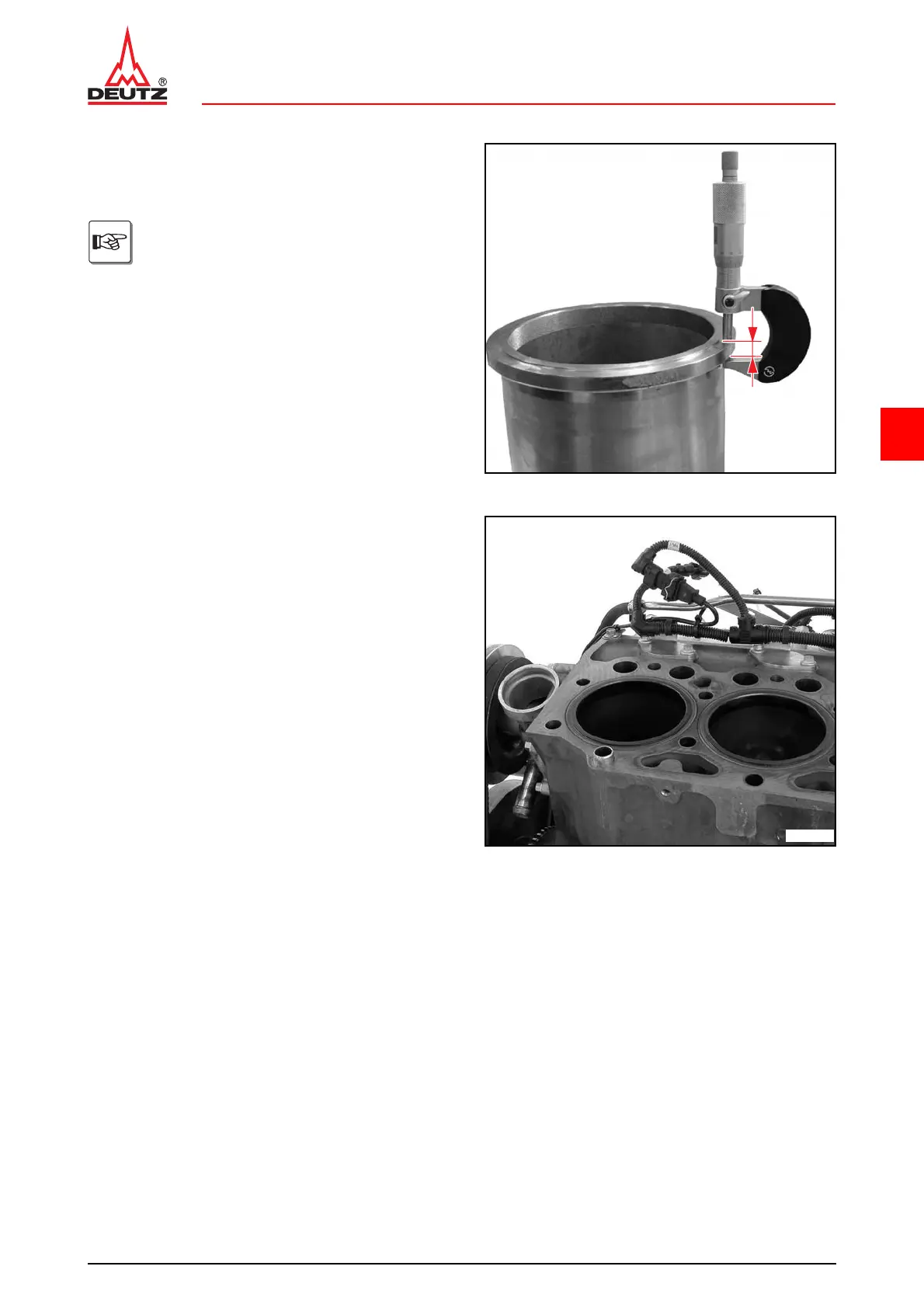

Cylinder liner
TCD 2013 2V W 04-01-02
● Measure collar height in area (X) with micrometer
gauge.
 9mm
Measure collar height at several points.
XXX
© 48168-1
+0
-0.02
● Install cylinder liner.
 W 04-01-01
● Install piston and connecting rod.
 W 06-01-01
● Install cylinder head.
 W 08-03-01
