Cylinder liner
TCD 2013 2VW 04-01-01

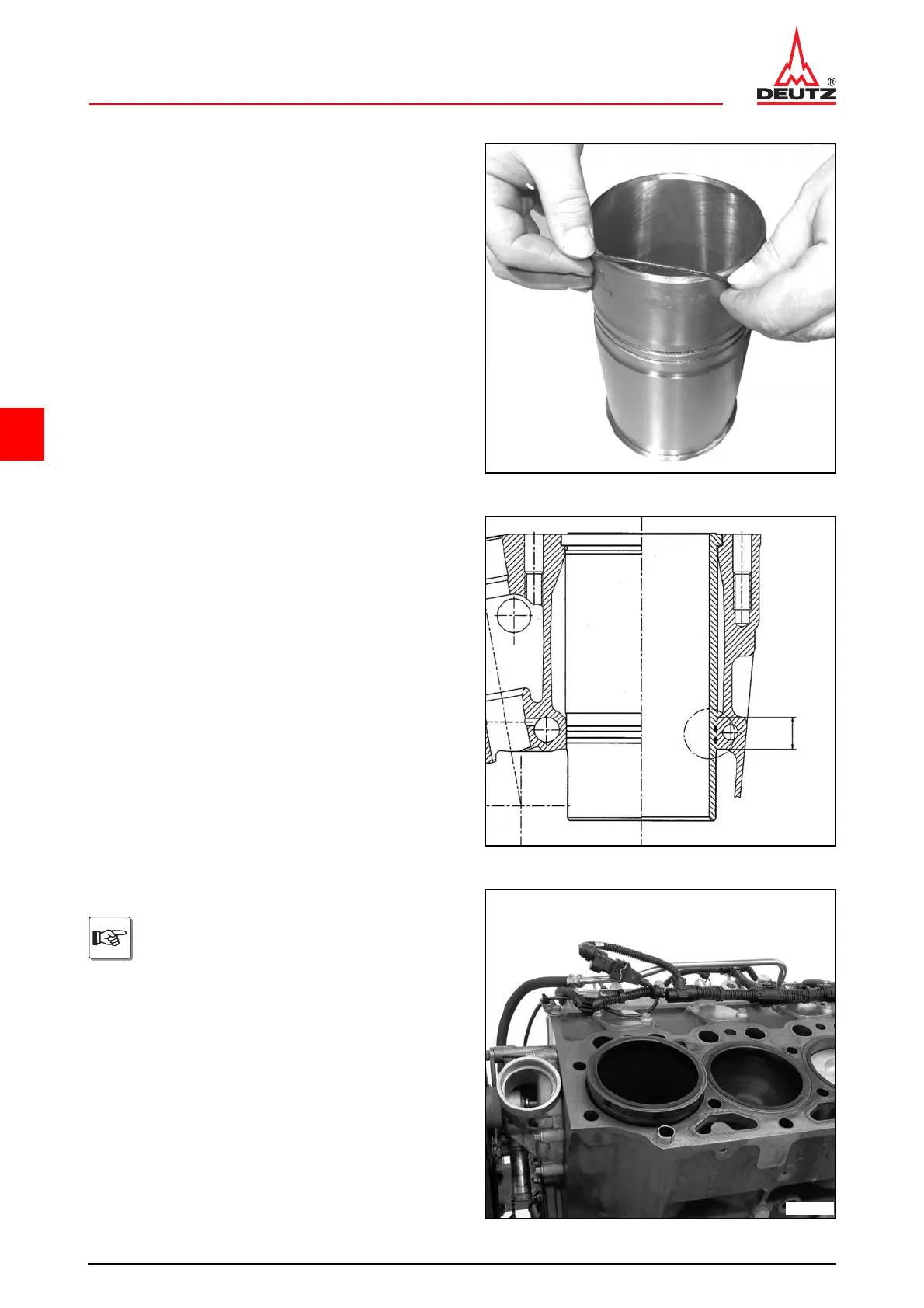

Install cylinder liner
● Check collar contact for cylinder liner.
W 01-13-01
● Clean cylinder liner.
● Insert new O-rings.
● Coat the crankcase and the cylinder liner in area (X)
with lubricating oil.
● Insert the cylinder liner in the crankcase.
Make sure that the liner surface and the
crankcase are absolutely clean before
installing the cylinder liner.
