Installing the carriage
1. The carriage is delivered fully assembled on a piece of rail with short rail
supports to level it. Grease the geat rack before usage. To get it out the box,
remove all other parts from the box and remove the bolts from the rail support.
Get the carriage out of the box including the rail part.
2. When you have a horizontal landing at the bottom,
or top place the rail from the box next to the rail on
the stairs. Put the connecting part in the rail from
the stairs and then push the carriage slow from the
rail part on the other side over the connecting plate,
otherwise the osg will be activaded.
See figure 20 and 23, then go to step 4.
3. When you have a dropnose you have to place the carriage at the top of
the stairs.
3.1To make it easier to get the carriage upstairs you have to remove
the seat. This is possible by removing the four bolts M8x16 DIN 934,
see figure 21.
3.2 Carry the carriage and the seat upstairs.
3.3 When you have a horizontal landing at the top, place the rail from
the box next to the rail on the stairs. Put the connector in the rail from
the stairs and then push the rail from the box on the other side over
the connector. See figure 20 .
3.4 When you have a straight landing at the top, it is the same as
the horizontal landing but than you have to lift the carriage to the right
angle to put the ‘box’ rail on the connecting part (fig. 22).
15

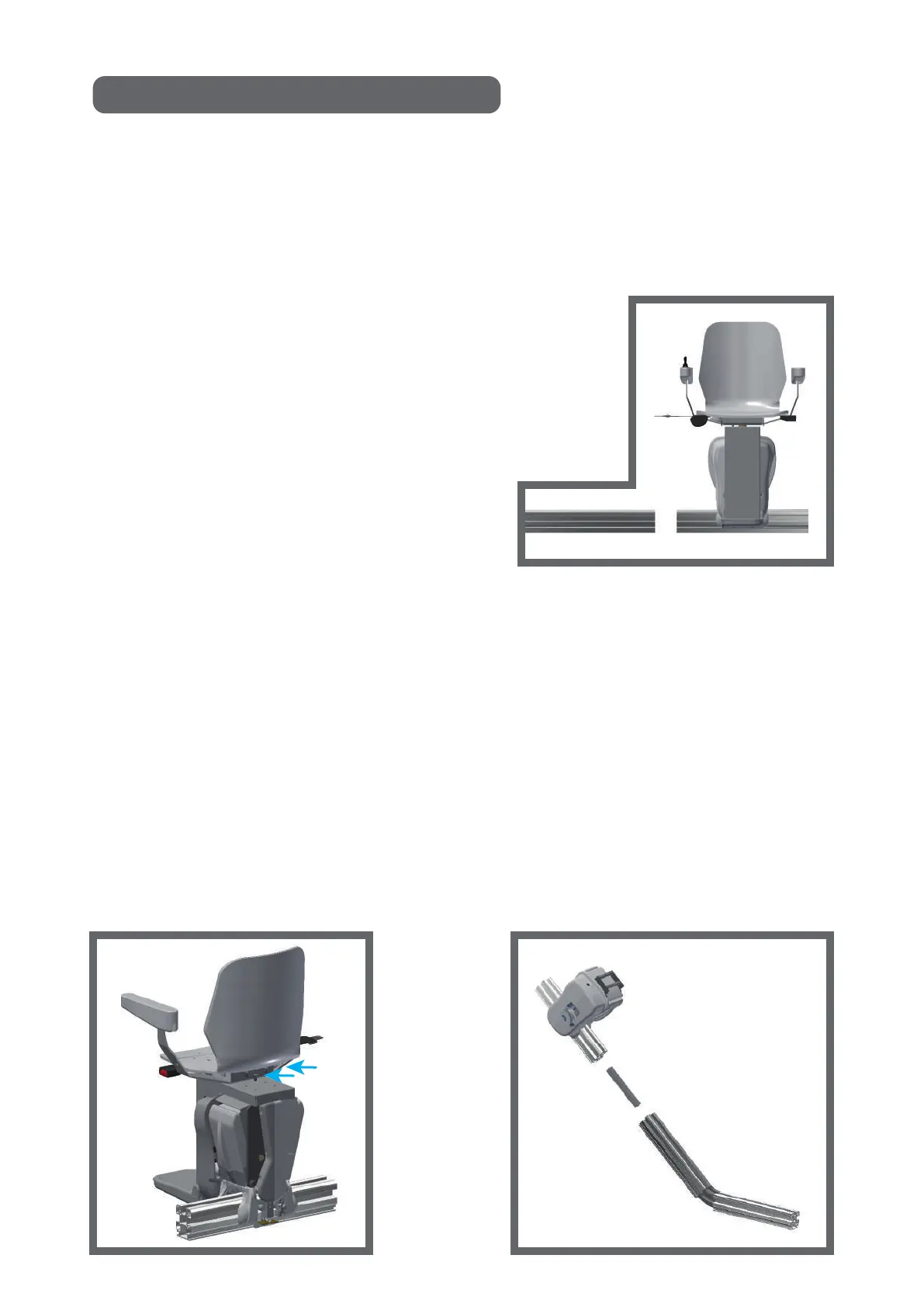

(fig. 20)
(fig. 21)
(fig. 22)
