5. You have to place the charging stations approximately at the beginning and
the end of the rail and at points that is handy for the customer. To place the
charging station on the rail, you have to shove two nuts M8 ISO 4017
in the back slot at each straight part of the rail. The slot is shown in figure 19.
6. Fix the charging station with two bolts M8 ISO 4017, located at
the red arrows in figure 18 and put it in the nuts from step 5.
Make sure that the charging station is located sufficiently
far from the end of the rails, such that the center of the
carriage can reach it.
7. Repeat step 5 and 6 for placing the charging station at the
end of the rail.
8. Plug in the furreles, that are placed on the red and black wire,
that come out at the end of the rail in the charging station.
Fasten the furreles with a screwdriver.
9. When the charging stations are fixed on the right locations,
you can use the connector, that is on the wire from the first charging
station, to plug in the charger. Then the charger can be plugged in
a wall outlet.
10. The last step is to ground the rails. Attach a ring with a wire on a
screw of a rail support. Then attach the wire to a grounding point.
14

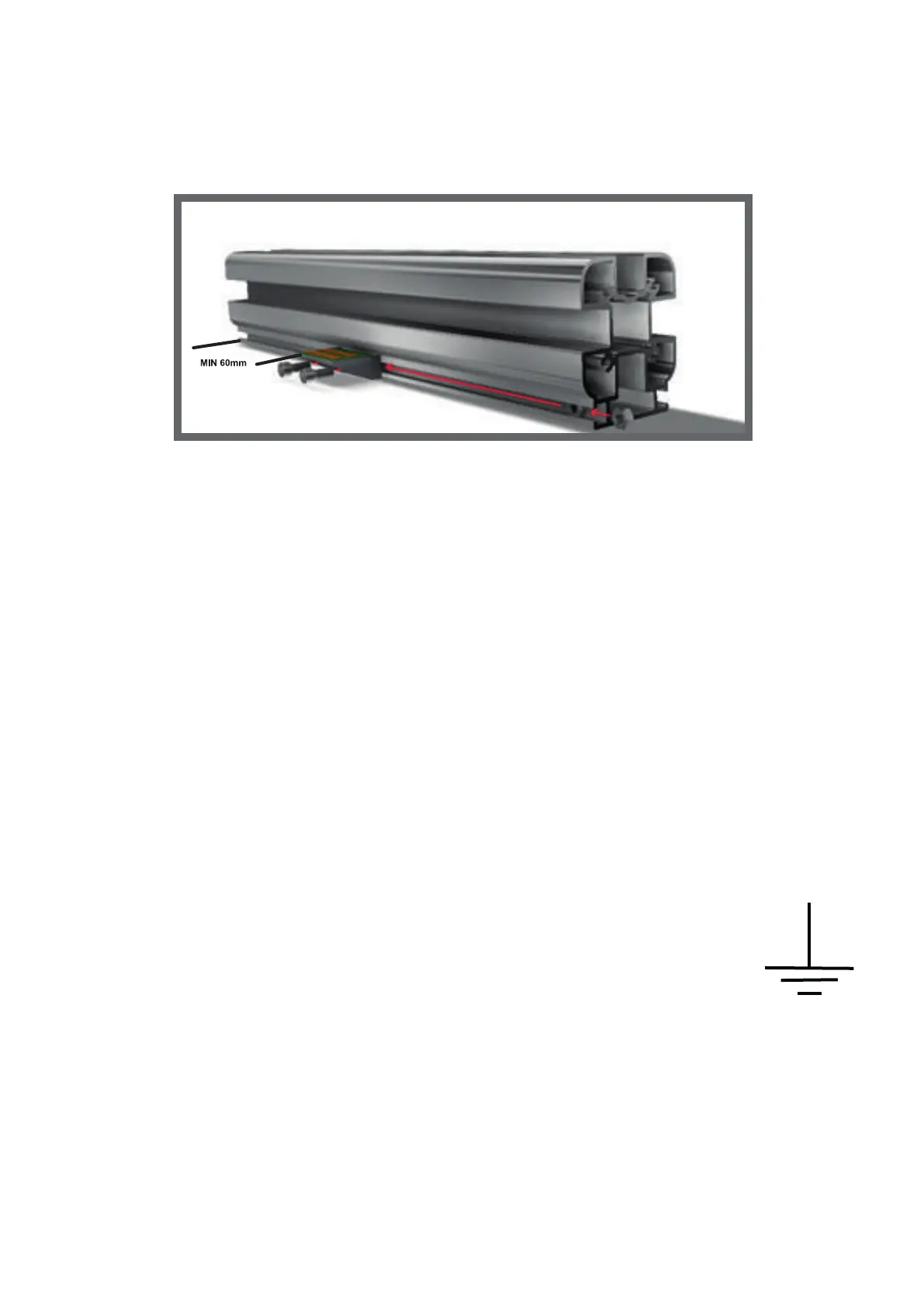

(fig. 19)
