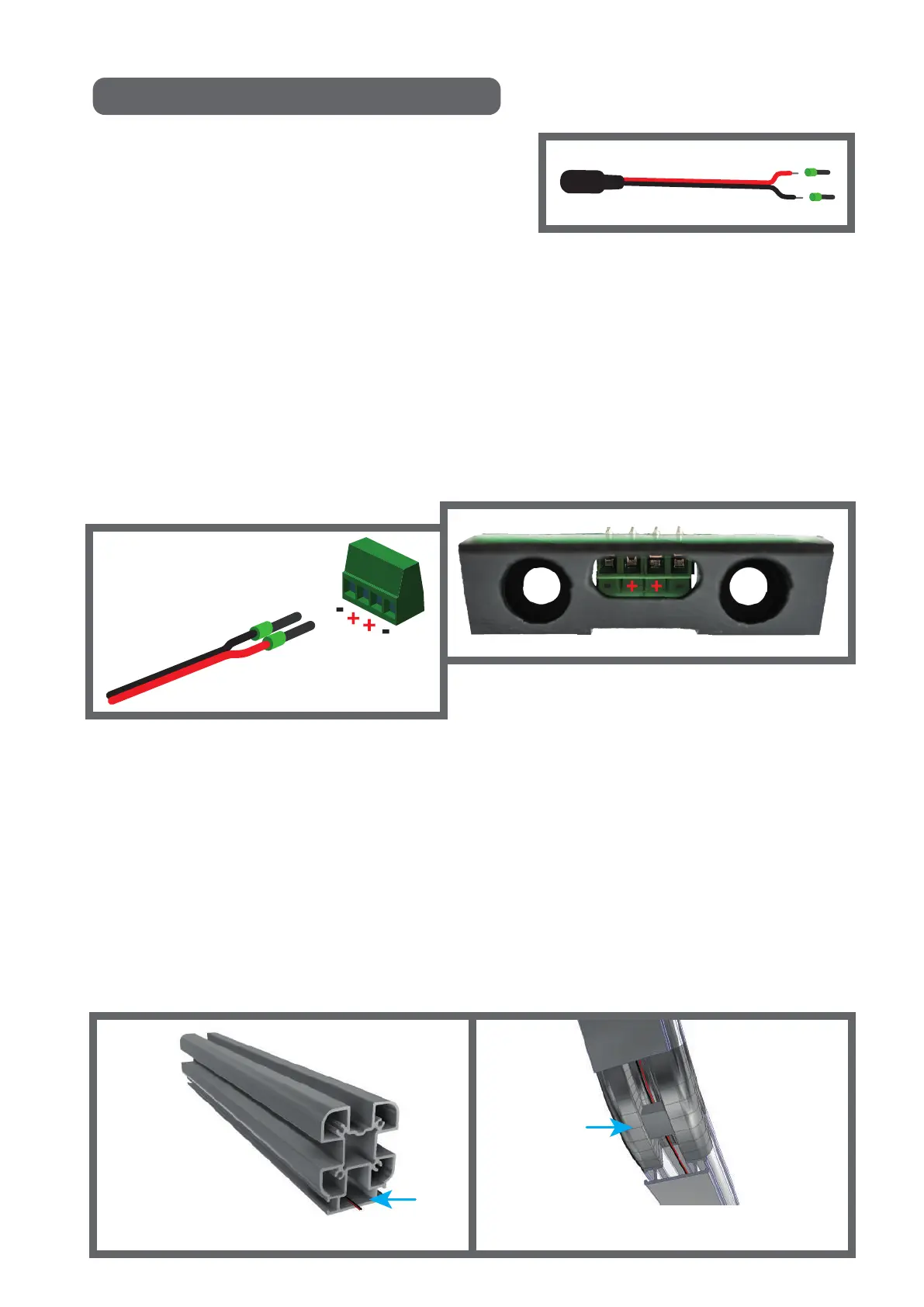

Installing the charging stations
1. Put two ferrules on the black and red wires
with the connector for the charger (fig. 15).
2. Measure the length that is necessary to connect two charging stations
plus 20 cm extra and cut a red and black wire on this length. Put ferrules on
either end.
3. Put the black and red wire with the connector in the first charging
station and use a screwdriver to fasten the wires.
Also put the long black and red wire in the charging station and use a
screwdriver to fasten the wires (fig. 16).
4. The long wires have to go through the complete rail from the beginning
till the end.
In the straight rail you have to put the wires through the bottom (fig. 17).
At the turns you have to mount the wires also at the bottom and use the
rubber blocks to fasten the wires on the rail (fig. 18).
MAKE SURE THAT YOU PUT THE RED WIRE AT THE +
AND THE BLACK WIRE AT THE -
13
(fig. 17) (fig. 18)
(fig. 15)
(fig. 16)
