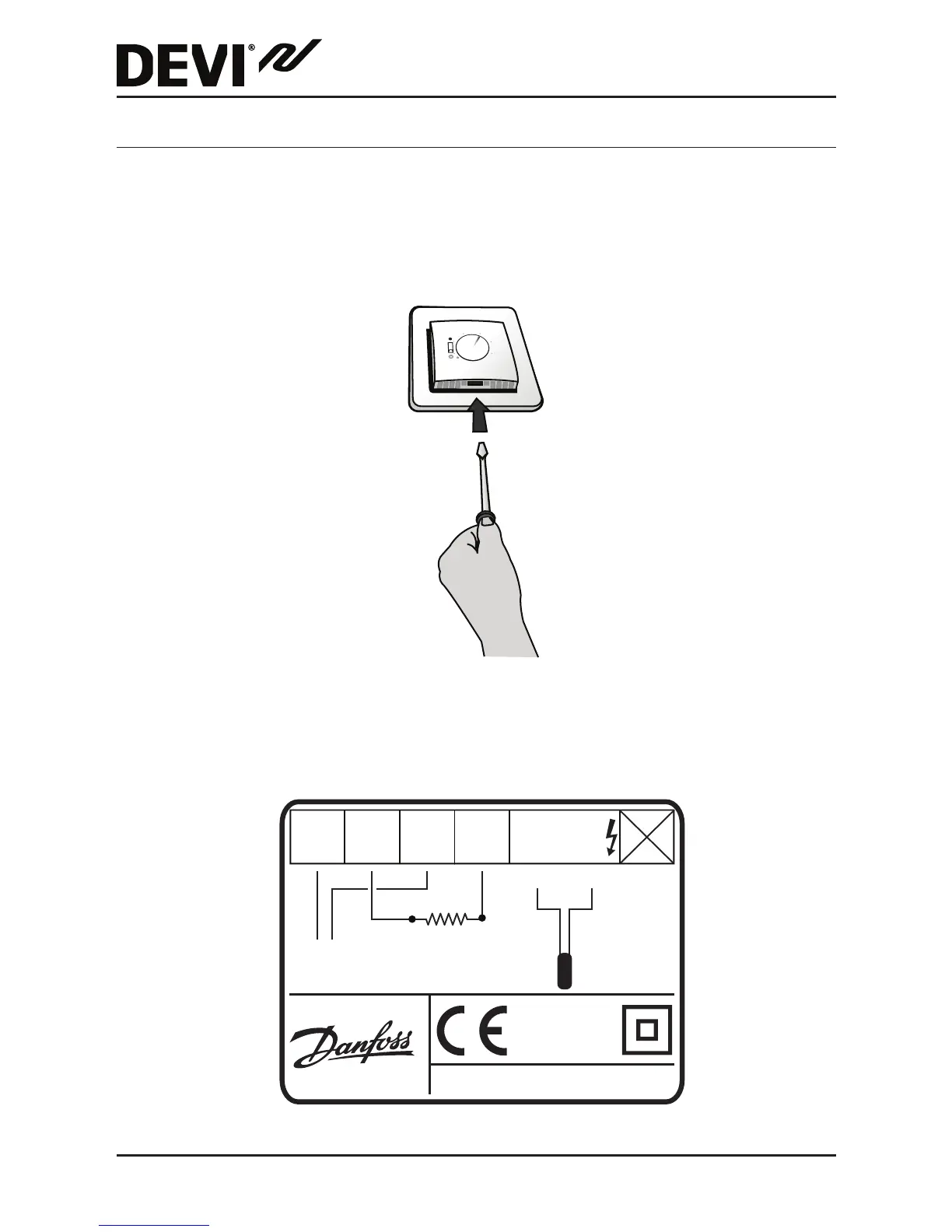

DEVIlink™ FT
Installation Guide6
3 Installation of DEVIlink™ FT
1. To remove the front cover, gently press the release
tabs under the bottom of the thermostat with a screw-
driver. Then remove the front.
15
20
25
30
35
2. Connect the thermostat according to the connection
diagram.
DFT01
Sensor
N L
NTC
N
LOAD
L
LOAD
(Optional)
Mains 220-240V
50-60 Hz
Max. Load
15 (1) A
IP31
-10T30
