ƒ
Always connect the thermostat to continuous power
supply.
ƒ
Do not expose the thermostat to moisture, water, dust,
and excessive heat.
2 Mounting Instructions
Please observe the following placement guidelines:
ƒ
Install the thermostat in an electric cabinet with DIN
rail attachment or a separate DIN attachment accord-
ing to local regulation on IP classes.
ƒ
Do not place the thermostat in a way that it will be ex-
posed to direct sunlight.
Follow the steps below to mount the thermostat:
1. Click the thermostat on to the DIN rail attachment.

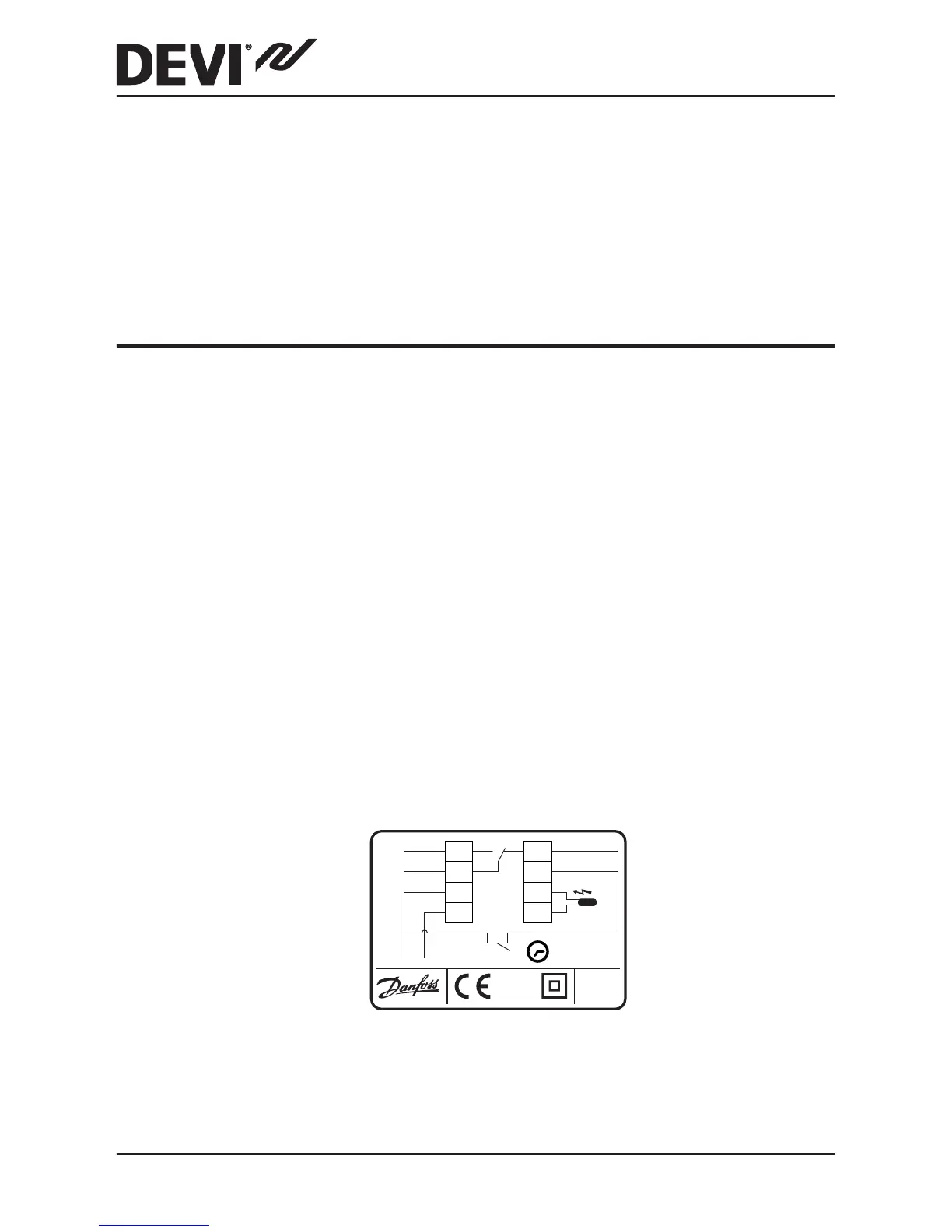

2. Connect the thermostat according to the connection
diagram.
IP20
10T50
8765
N
4321
L
Mains
220-240V~
250V~
16 (1) A
Sensor
D330
+5°C to
+45°C
-5°C
DEVIreg™ 330 (+5 to +45°C)
6 Installation Guide
