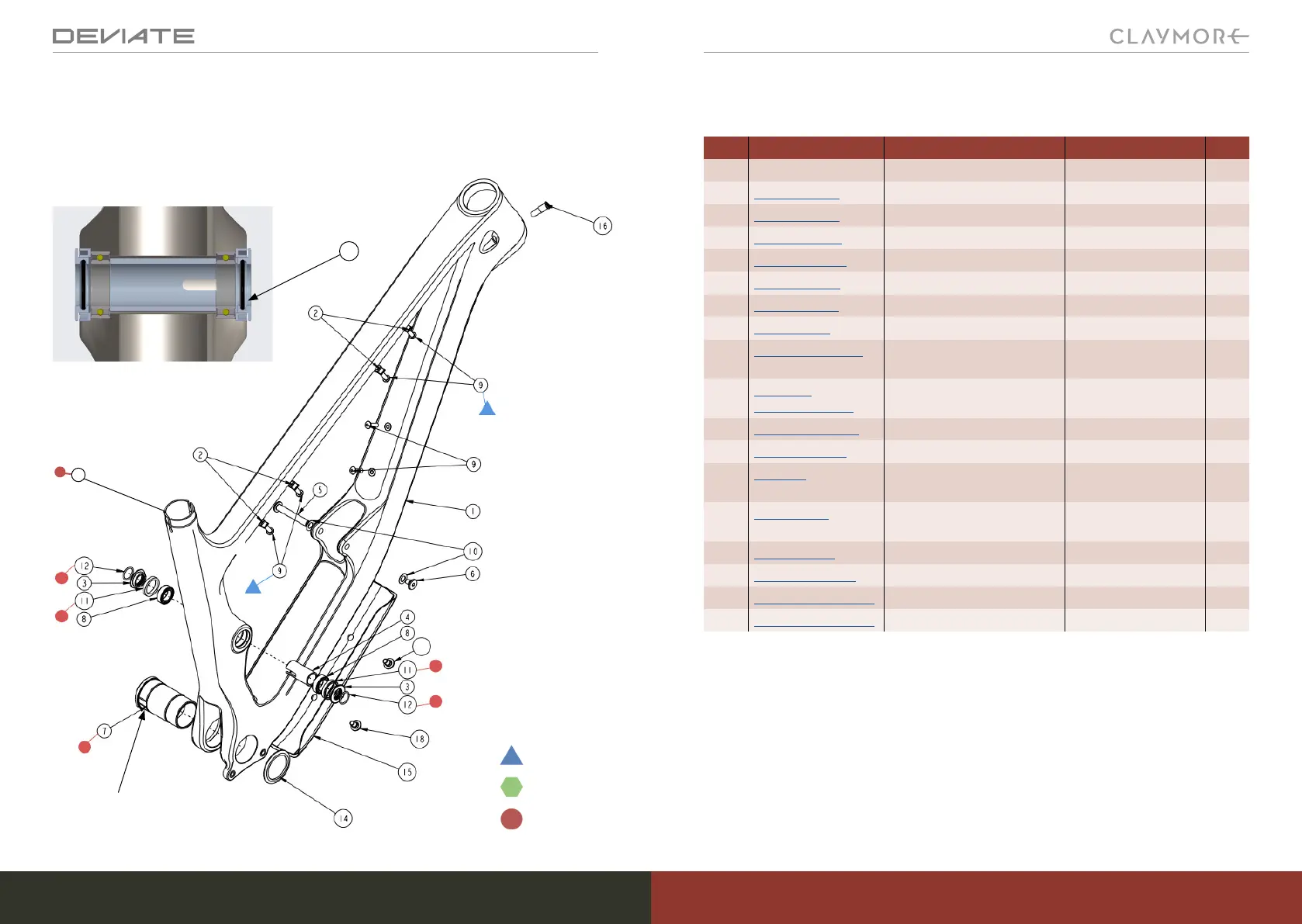

FRONT TRIANGLE ASSEMBLY - DIAGRAM
View page 9 to see the corresponding parts table.
FRONT TRIANGLE ASSEMBLY - PARTS TABLE
View page 8 to see the corresponding diagram.
Item Part Number Name Notes QTY
1 AMP06-F5-XXX Frame - Carbon 1
2
TRP04-F9-010-B Clamp - Cable Gutter 4
3
TRP04-F9-011-B Top Hat - Pivot 2
4
TRP04-S9-035-C Spacer Tube - Main Pivot 1
5
AMP06-F9-013-A Sleeve - Frame Bolt 1
6
TRP04-F9-017-A Bolt - Sleeve Frame 1
7
TRP04-S9-029-F Axle - Bottom Bracket 1
8
3802LLUMAX Enduro Bearing 2
9
BTN_HEAD_M5x18 BUTTON HEAD - M5x18
- SS A2/A4
Torque to 4.5 Nm 4
10
WASHER_
DIN988_8x14x0.5
Washer - DIN988 8x14x0.5 2
11
SEAL_20x26x4_VC SEAL - 20x26x4 VC - NITRILE Apply grease to lips 2
12
O-RING_15x1_5 O-RING - 15x1.5mm - NITRILE Prepare with grease 2
13
CL-FJ21-1 Deviate Seat Clamp Apply grease prior to
seat post installation
1
14
TRP04-F9-024 Washer - BB Replaces 2.5mm
spacer with BB
1
15
AMP06-F9-012 Protection - Downtube 1
16
G10_RCS50-00-35 Grommet (Small) 1
17
WAFER HEAD M6x16 WAFER HEAD M6x16 1
18
WAFER HEAD M6x16 WAFER HEAD M6x16 1
Loctite 243
Loctite 638
Grease
Align flats
during assembly
Cross section on Main Pivot bearings
12
13
17
