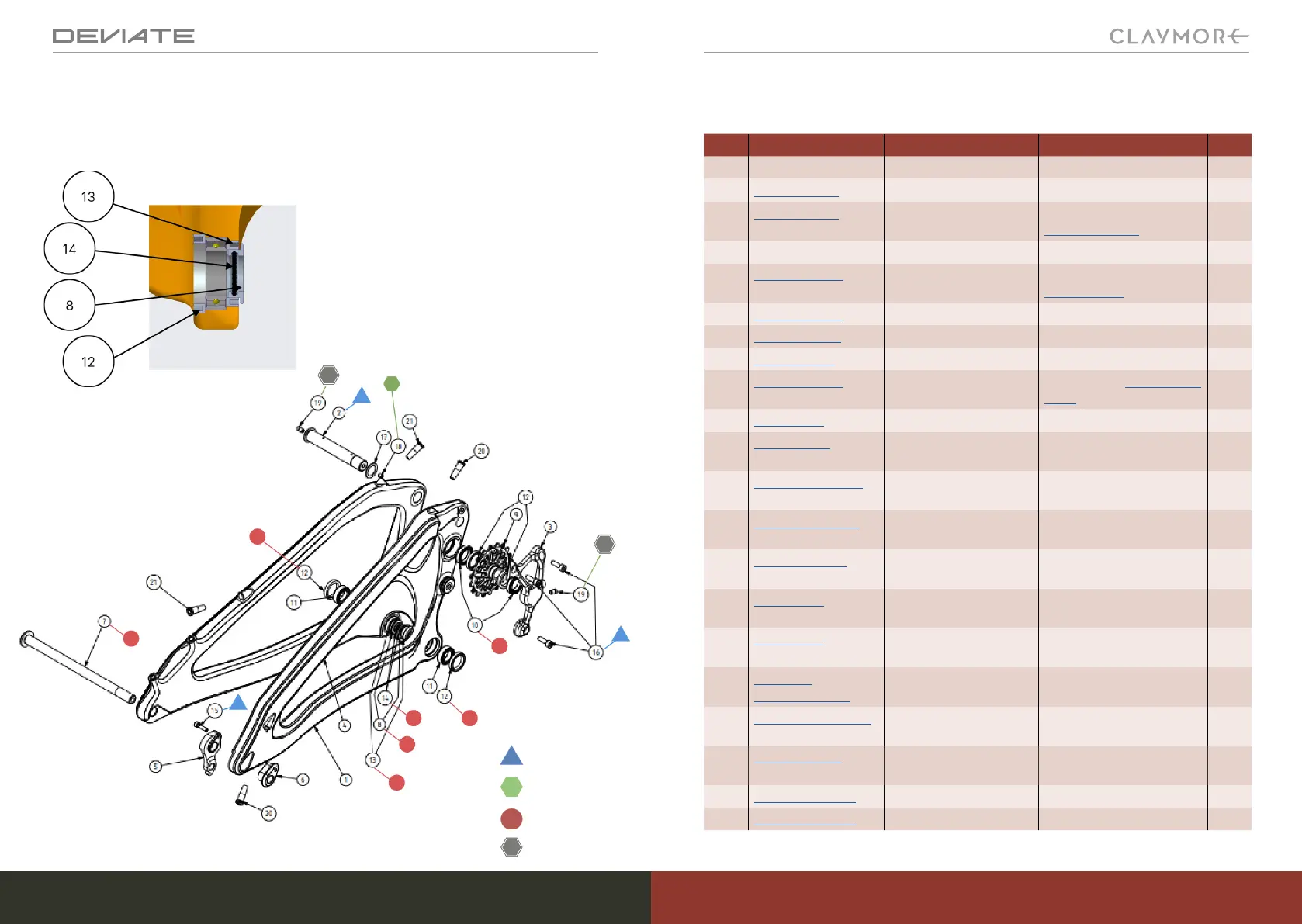

REAR TRIANGLE ASSEMBLY - DIAGRAM
View page 11 to see the corresponding parts table.
REAR TRIANGLE ASSEMBLY - PARTS TABLE
View page 10 to see the corresponding diagram.
Item Part Number Name Notes QTY
1 AMP06-S9-XXX Rear Swing Arm 1
2
TRP04-S9-029-F Axle - Main Pivot Loctite Threads w/243 1
3
TRP04-D9-007-J 52mm Idler Cover 55mm Idler Cover =
AMP06-D9-011-A
1
4 TRP04-S9-063-B Chain stay protector 1
5
TRP04-D9-008-C Drop Out - 12x148 UDH Hanger =
411H0300001
1
6
TRP04-D9-009-B Insert - Rear Axle 1
7
TRP04-S9-022-A Rear Axle 148x12 Torque to 10Nm 1
8
AMP06-F9-020 Top Hat - Pivot Small Fit o-ring 12x1.5 w/grease 2
9
TRP04-D9-006-D 52mm Idler - 18T 55mm Idler = AMP06-D9- 1
012-B
1
10
61803_2RS1 BEARING - 61803 2RS 2
11
3802LLUMAX ENDURO BEARING 3802
LLU MAX
2
12
SEAL _20x26x4_VC SEAL - 20x26x4 VC
- NITRILE
Prepare with grease 4
13
SEAL_16x22x4_VC SEAL - 16x22x4 VC
- NITRILE
2
14
O-RING_12x1_5 O-RING - 12x1.5MM
- NITRILE
Replaces 2.5mm spacer
with BB
2
15
CAP_M4x16 CAP HEAD - M4x18
- SS A2/A4
Torque to 2 Nm 1
16
CAP_M5x16 CAP HEAD - M5x16
- SS A2/A4
Loctite 243, Torque 2Nm 3
17
WASHER_
DIN988_15x21x1
WASHER - DIN988
- 15x21x1 - SS
1
18
GRUB_SCREW-M5x5 GRUB SCREW - M5x5
- SS A2/A4
Loctite Threads w/243 1
19
ZERKS_FITTING 10-32 UNF Flush Straight
Slotted
Loctite Threads w/638 2
20
G10_RCS60-00-45 Grommet (Large) 2
21
G10_RCS50-00-35 Grommet (Small) 2
Cross section on
link bearings
Loctite 243
Loctite 638
Grease
Grease Port
