DEVIATE CLAYMORE - Quick Reference Spares

1312
Deviate Claymore User Manual v1.8 12.12.23Deviate Claymore User Manual v1.8 12.12.23

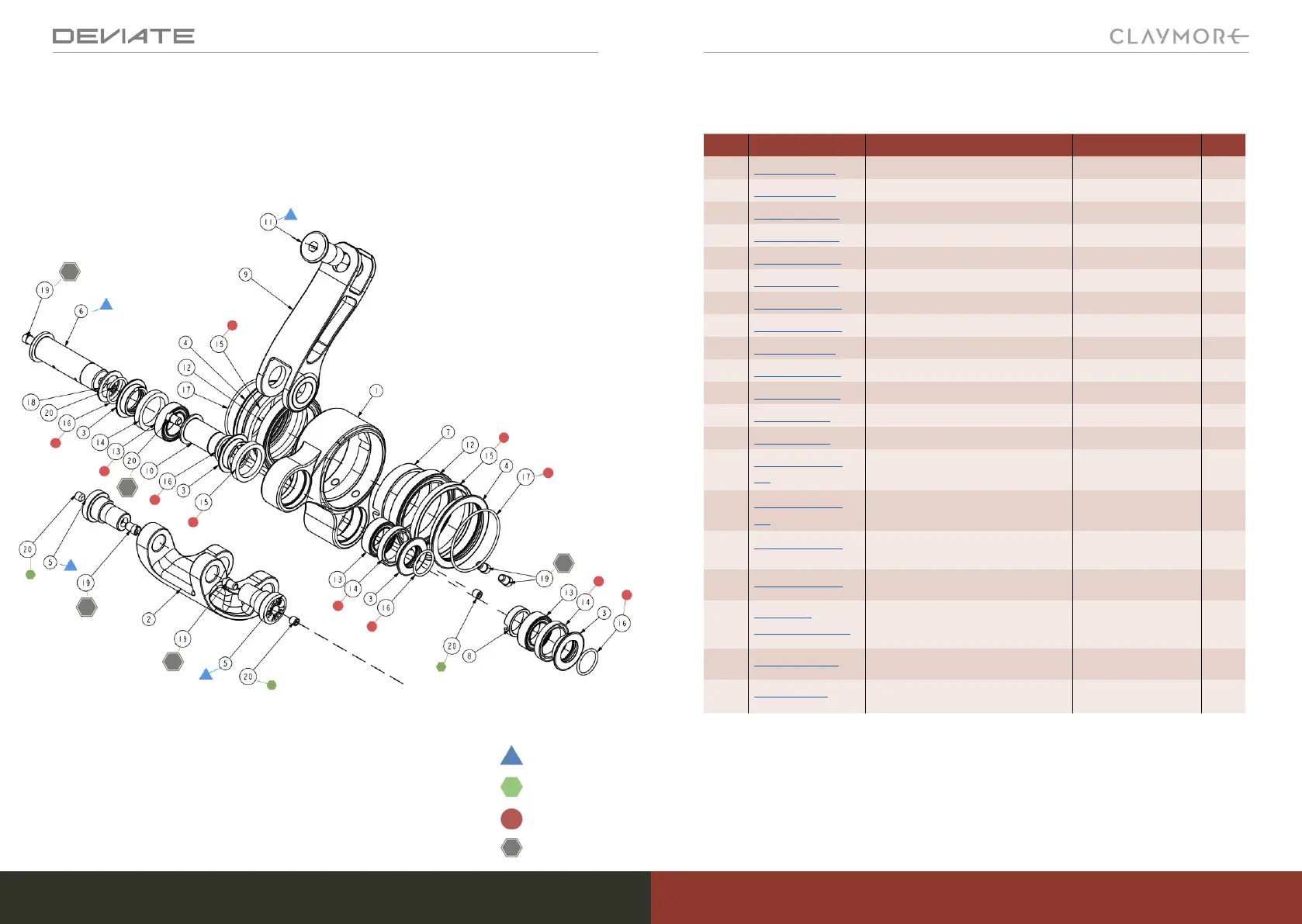

ROCKER - DIAGRAM
View page 13 to see the corresponding parts table.
ROCKER - PARTS TABLE
View page 12 to see the corresponding diagram.
Item Part Number Name Notes QTY
1
AMP06-S9-004 Rocker - 165mm 1
2
AMP06-S9-005 Link - 165mm 1
3
TRP04-F9-011-B Top Hat - Pivot 4
4
TRP04-F9-013-B Top Hat - BB 2
5
TRP04-S9-045-D Axle Bolt - Swingarm Link Tighten to 20Nm 2
6
TRP04-S9-030-F Axle - Swing Arm Link Tighten to 30Nm 1
7
TRP04-S9-036-C Spacer Tube - BB 1
8
TRP04-S9-037-C Spacer Tube Rocker 1
9
AMP06-S9-006 Shock Extender - 165mm 1
10
TRP04-S9-046-A Sleeve - Extender Tighten to 12Nm 1
11
TRP04-S9-049-B Sleeve - Shock Fitted for transport 1
12
6808LLUMAX Enduro Bearing 6808 LLU MAX 2
13
3802LLUMAX Enduro Bearing 3802 LLU MAX 3
14
SEAL_20x26x4_
VC
Seal - 20x26x4 VC Apply grease to lips 4
15
SEAL_45x52x4_
VC
Seal - 45x52x4 VC Apply grease to lips 2
16
O-RING_15x1.5 O-RING - 15x1.5MM - NITRILE Prepare w/grease 4
17
O-RING_40x1.5 O-RING - 40x1.5MM - NITRILE Prepare w/grease 2
18
WASHER_
DIN988_15x21x1
WASHER - DIN988 - 15x21x1 -SS 1
19
ZERKS FITTING 10-32 UNF Flush Straight Slotted 6
20
GRUB_M5X5 GRUB SCREW - M5x5 - SS A2/A4 4
Loctite 243
Loctite 638
Grease
Grease Port
