DeviceWell HDS7105S - Interface Introduction; Interface Specification; Size

23
SWITCHER

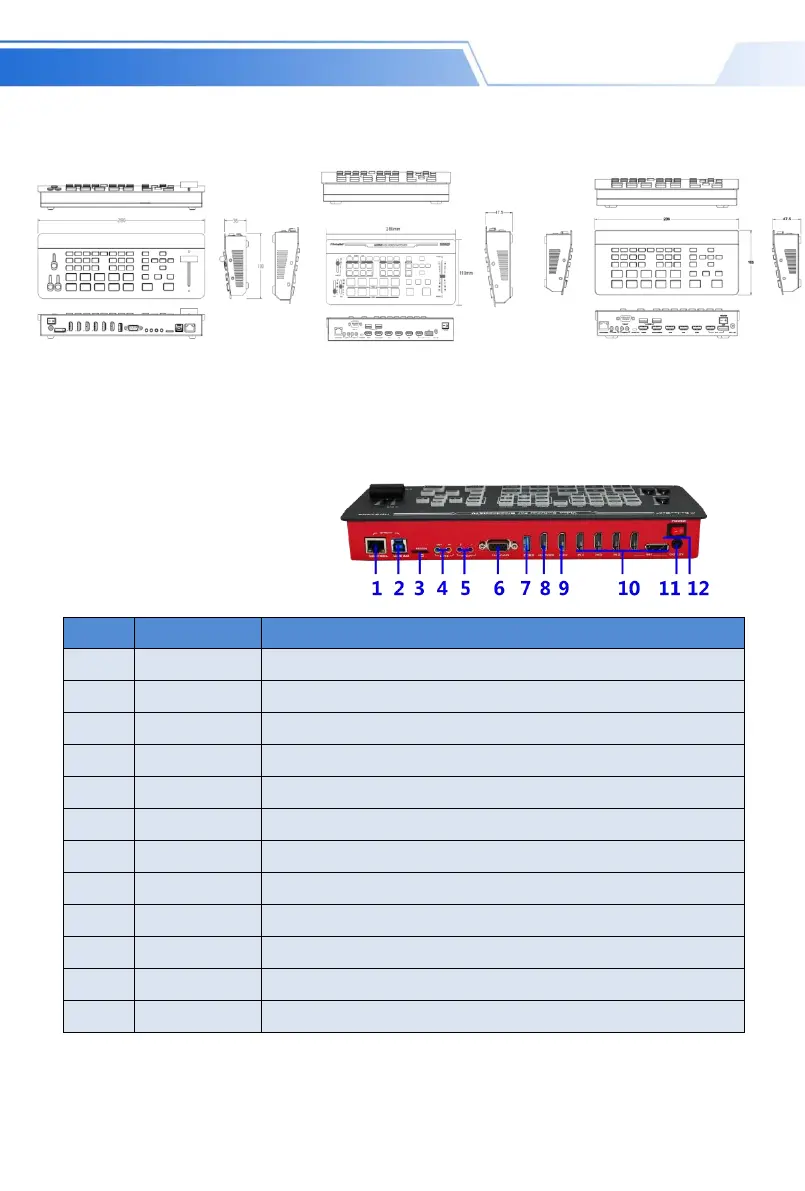

2.2 Size
HDS7305 Size：280mm*110mm*36mm, HDS7105P Size：280mm*110mm*47.5mm, HDS7105/HDS7105S Size：236mm*105mm*47.5mm
3. Interface Specification
The Switcher interface is shown below.
NO.
Definition
Description
1
Stream out
RTMP network port push stream
2
USB3.0 Stream
USB3.0, UVC stream
3
TF card
TF card recording
4
LINE IN/OUT
3.5mm Stereo audio in/out
5
MIC IN
2-CH microphone input
6
TALLY/GPI
wireless intercom system（DB-15）/GPI control
7
DCB2
DCB 2control (device cascade/wireless tally/external keyboard) + video expansion
8
MULTIVIEW
HDMI Multiview output
9
HDMI OUT
PGM live output
10
HDMI IN/DP IN
4-CH HDMI+1-CH DP input，The first input can be switched to DP input
11
DC 12V
Power input
12
Power switch
Power switch button
3.1 Interface Introduction
