Page 14 SB-2-586-E
ITW Finishing Equipment Americas
DeVilbiss has authorized distributors throughout the world. For technical
assistance or the distributor nearest you, see listing below.
U.S./Canada Technical Service Office:
195 Internationale Blvd., Glendale Heights, IL 60139
Toll-Free Telephone: 1-800-992-4657 (U.S.A. and Canada only)
Toll-Free Fax: 1-800-368-8401
DeVilbiss Worldwide Sales and Service Listing: www.devilbiss.com
WARRANTY
This product is covered by DeVilbiss' 1 Year Limited Warranty.
1/11 ©2011 Illinois Tool Works Inc. All rights reserved. Printed in U.S.A.

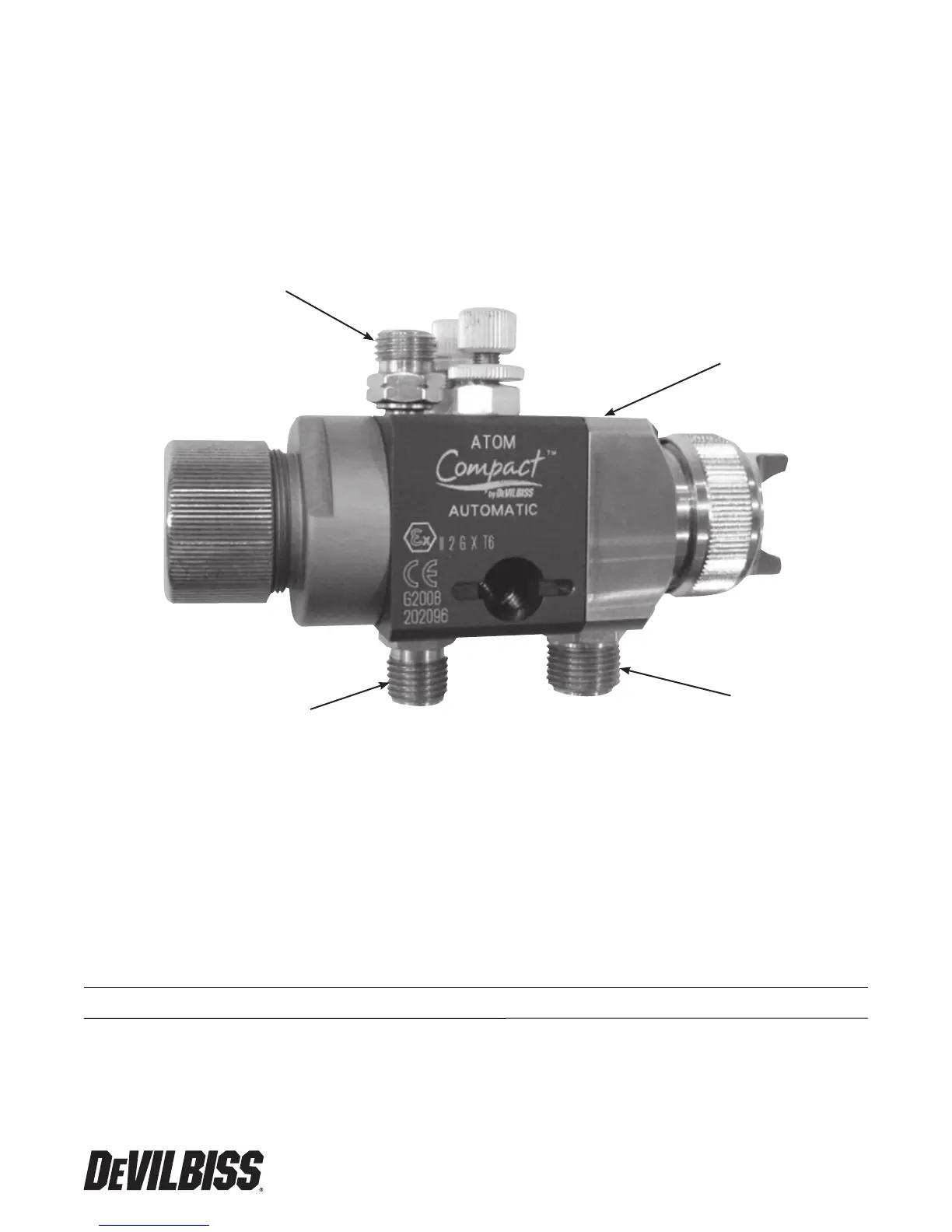

6-532 FITTING KIT for COMPACT-I AUTOMATIC SPRAY GUN
1/4" NPS (M) CONNECTOR FOR
CYLINDER AIR
FLUID AND FAN/ATOMIZING AIR PORTS ARE 1/4" BSPP(f) THREAD
CYLINDER AIR PORT IS 1/8" BSPP(f) THREAD
BSPP = BRITISH STRAIGHT PIPE PARALLEL
NPS FITTINGS KIT
COMBINED FAN AND ATOMIZING AIR
1/4" NPS AIR AND 3/8" NPS FLUID FITTINGS
REMOVE PLUG AND INSERT
3/8" NPS (M) CONNECTION
FOR RECIRCULATION
3/8" NPS (M)
CONNECTION
FOR FLUID SUPPLY
1/4" NPS (M) CONNECTOR
FOR COMBINED FAN AND
ATOMIZATION AIR
