REPLACEMENT OF PARTS (CONTINUED)
FAN & ATOM AIR VALVE (13)
PISTON (15), O RING (16) & (14)
Unscrew the rear housing (19) at the back of the
gun body counter clockwise, pull out the needle
(18).

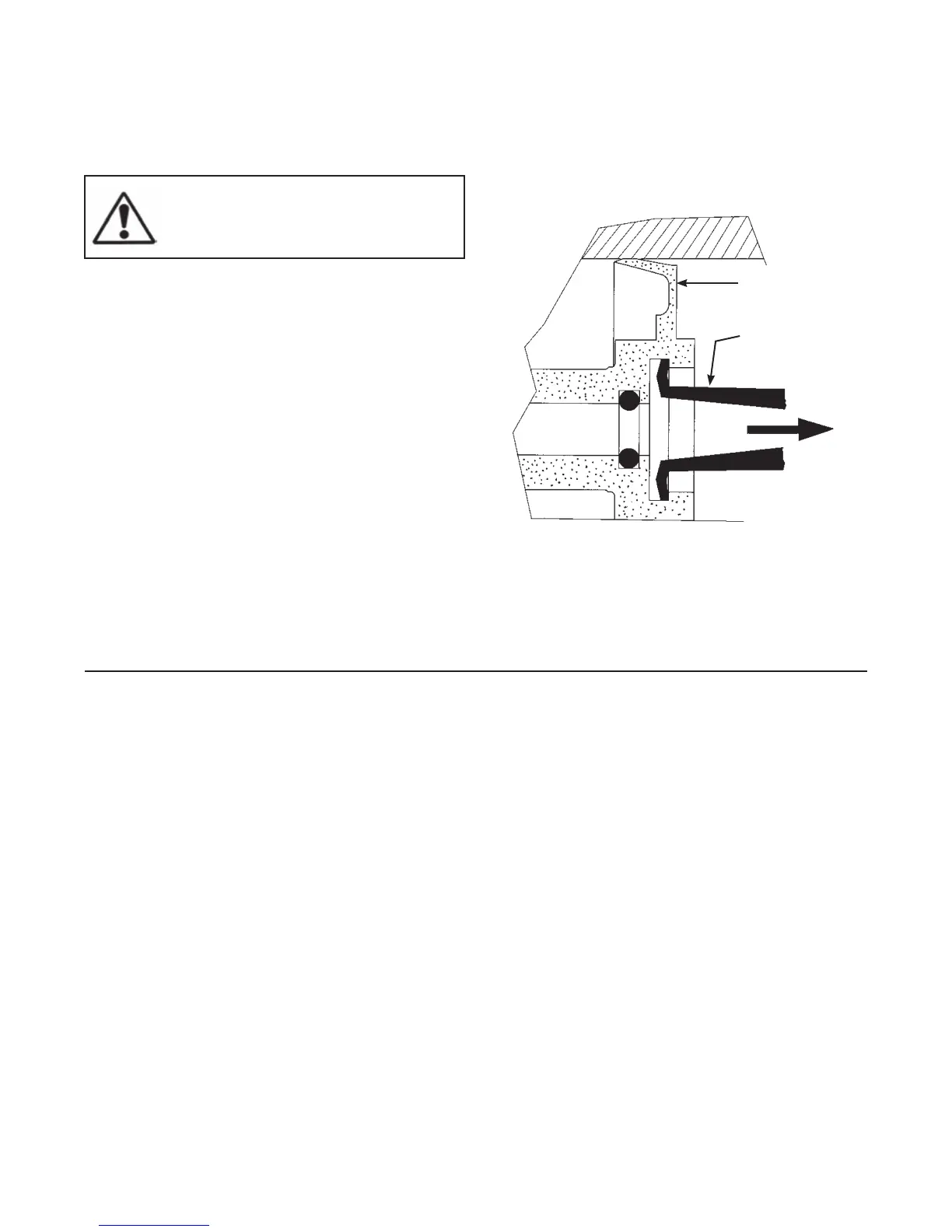

Use bent nose pliers so to pull out the piston which
has a 12 mm internal groove for this purpose.
It is recommended to replace the o-ring (14) into the
gun body as soon you disassemble the Piston.
If necessary, when replacing the piston, slightly
lubricate the piston lip with petroleum jelly before
fitting into the gun body.
Before assembling, check the air valve
is in fully open position by unscrewing
it counter-clockwise.
