DeVilbiss FTV560V - Part Number Description

13  ENG

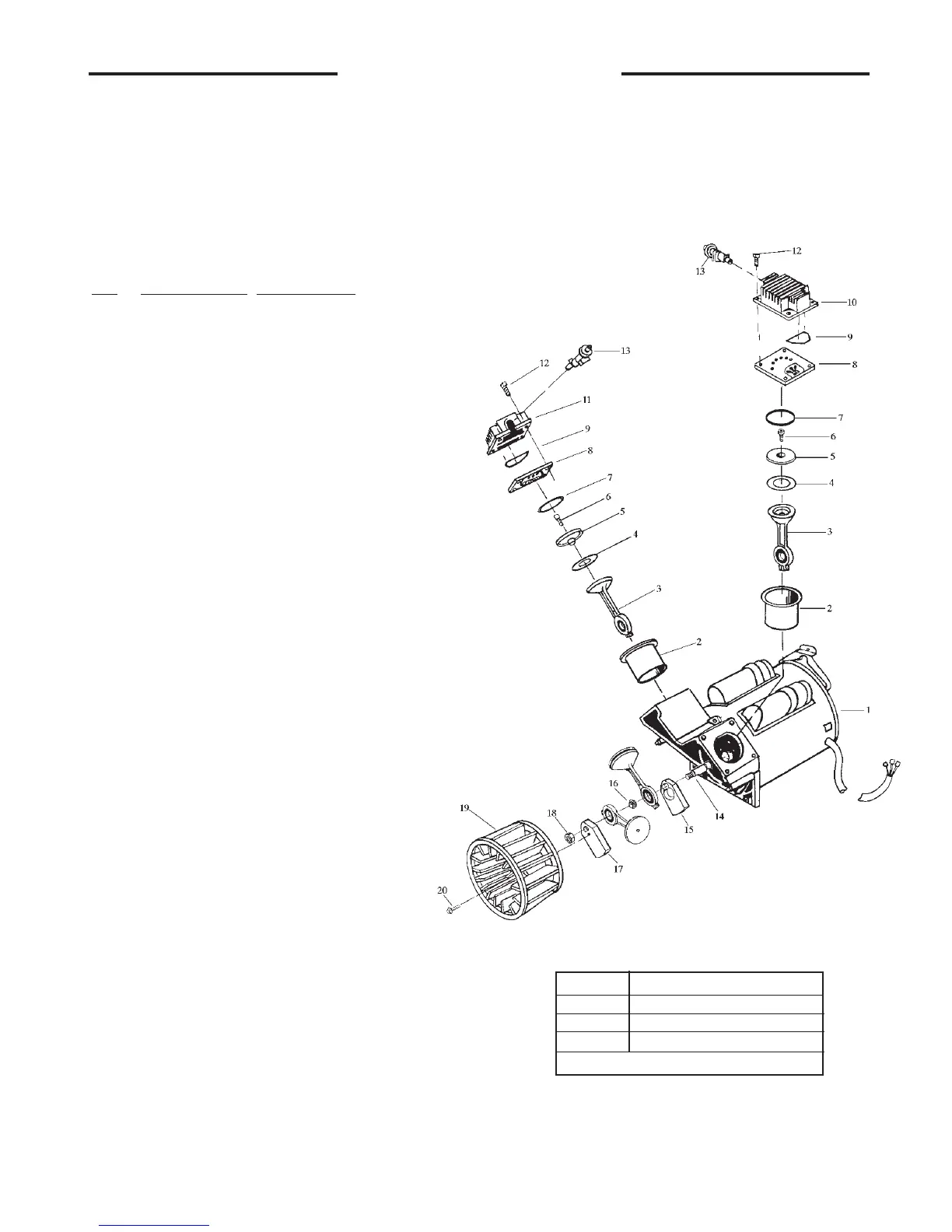

KEY
NO. PART NUMBER DESCRIPTION
1 MO-9074 Motor
2 ----- Sleeve, Cylinder (2 used)
3 ----- Connecting Rod (2 used)
4 ----- Compression Ring (2 used)
5 ACG-29 Connecting Rod Cap (2 used)
6 SSF-3158-1 Screw, 10-24 x .75 (2 used)
7 SSG-8156 O-ring (2 used)
8 AC-0032 Valve Plate Assembly (2 used)
9 ACG-45 O-ring, Perm Lube Head (2 used)
10 AC-0037 Head, Right
11 AC-0038 Head, Left
12 SSF-927 Screw, THD Forming 1/4-20 X 1.25
(8 used: Torque 7-10 ft.-lbs.)
13 ACG-11 Muffler, Intake (2 used)
14 ACG-8 Pin, Eccentric
15 ACG-6 Counter Balance, Inner
16 ACG-9 Washer
17 ACG-7 Counter Balance, Outer
18 ACG-23 Nut (Torque 85-100 ft.lbs.)
19 ACG-22 Fan
20 39124607 Screw, Self Tap 1/4 x 5/8
(Torque 75-90 in.-lbs.)
* Keys 2 , 3, 4, 5, 6, 7, & 9 can only be purchased in Connecting
Rod Kit KK-5081.
+ Keys 2, 4, and 6 can be purchased in Cylinder\Compression
Ring Kit K-0058.
12
18
20
TORQUEKey #
*TORQUE WRENCH MUST BE USED
7 to 10 FT. LBS.
85 to 100 FT. LBS.
75 to 90 IN. LBS.
* +
*
*+
*
*+
*
*
