FIGURES, DIAGRAMS, AND VIEWS

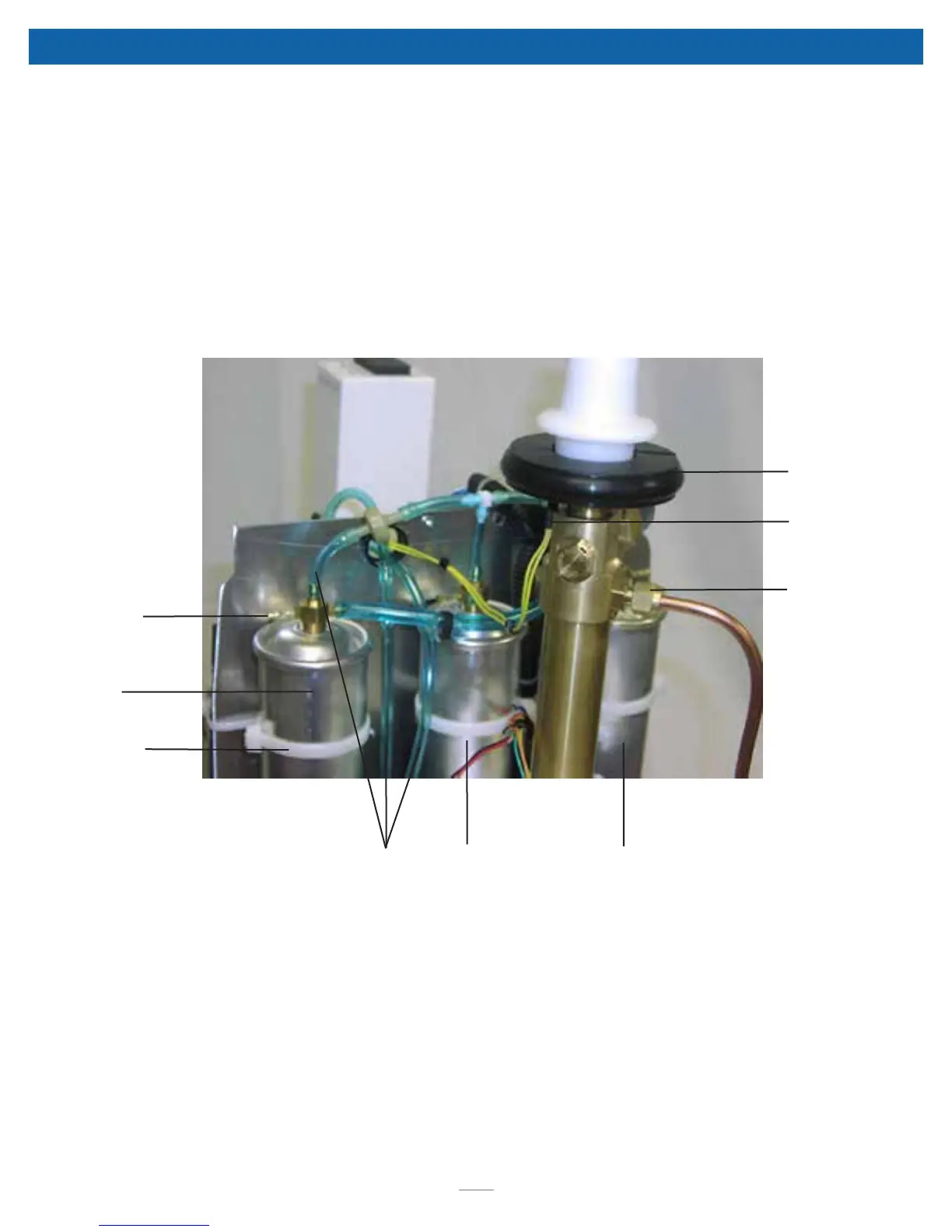

FIGURE 11 - INTERIOR, BEDS AND ACCUMULATOR TANK
Sieve Bed
Test Point
Left Sieve
Bed
Cable Tie
Support Grommet
Cylinder Detect
Switch
O2 Inlet to
2nd Stage
Right
Sieve Bed
Accumulator
Tank
Tubing 1/8” ID
