Page 4 SB-2-243-F

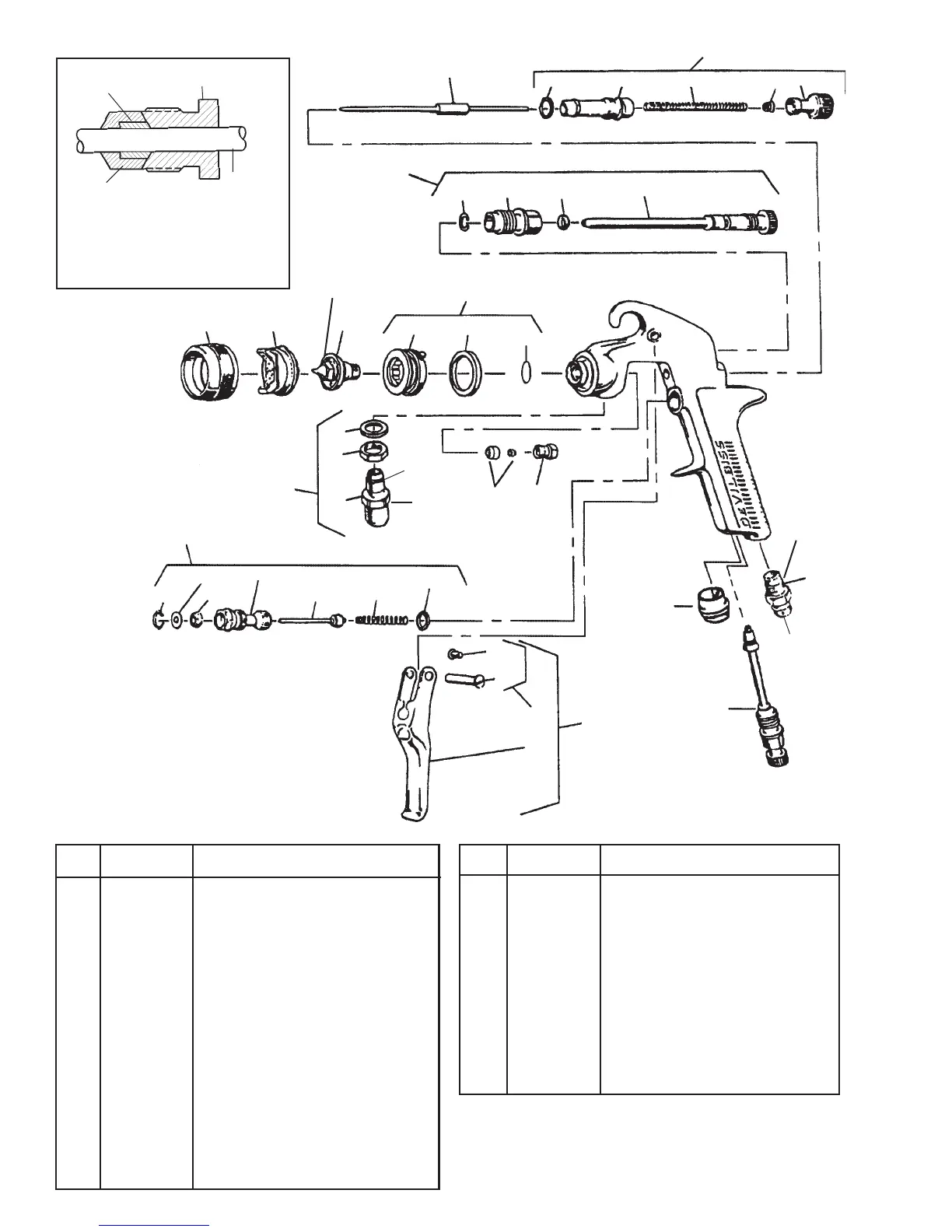

PARTS LIST
Ref. Replacement Individual
No. Part No. Description Parts Req.
1MSA-1 Retaining Ring (Delrin) ................. 1
2 See Chart 1 Air Cap ............................................ 1
3 See Chart 2 Fluid Tip .......................................... 1
•4 JGD-14-K10 Seal (Kit of 10) (Polyethylene) ...... 1
•#
5 SSG-8182-K5 O-Ring (Kit of 5) (Buna-N) ............. 1
6 See Chart 1 Baffle, Seal & O-Ring Kit ............... 1
7MSV-3-K10 Gasket Kit (Kit of 10) (blue) ........... 1
8 --- Locknut ........................................... 1
9 --- Fluid Inlet Adapter 3/8" NPS(m) ... 1
10 JGA-4044 Fluid Inlet & Nut Kit ....................... 1
•11 JGA-14-K25 Snap Ring ....................................... 1
•12 JGA-15-K25 Washer ........................................... 1
•#13 JGS-26-K25 "U" Cup ........................................... 1
•14 JGS-431-K25 Air Valve ......................................... 1
•15 MBD-12-K25 Spring ............................................. 1
•#16 JGS-72-K10 Gasket (Kit of 10) (Teflon) ............. 2
17 JGS-449-1 Air Valve Assembly ....................... 1
•18 --- Screw .............................................. 1
19 --- Trigger Bearing Stud ..................... 1
20 JGS-478 Stud & Screw Kit ........................... 1
(Kit includes 5 screws & 3 studs)
21 JGS-477-1 Trigger, Stud & Screw Kit ............. 1
(Kit includes 1 each)
Ref. Replacement Individual
No. Part No. Description Parts Req.
•#22 JGV-463-K3 Fluid Needle Packing Kit (Kit of 3) ...... 1
23 34411-122-K10 Fluid Needle Packing Nut (Kit of 10) .. 1
24 JGA-132 Plug ....................................................... 1
25 JGA-4005 Air Adjusting Valve (Optional) ............ 1
26 MSA-3 Connector 1/4" NPS ............................. 1
•27 --- Retaining Ring ..................................... 1
•#28 SSG-8069-K25 O-Ring Kit (Kit of 25) (Viton) .............. 1
29 JGA-497-1 Air Valve Assembly - Horn .................. 1
30 See Chart 2 Fluid Needle ......................................... 1
31 --- Gun Body Bushing .............................. 1
•32 MBD-19-K10 6# Spring (Kit of 10) ............................. 1
MSA-4-K10 4# Spring (Kit of 10) (optional) ........... 1
33 --- Spring Pad (included with #32) .......... 1
34 JGS-16 Fluid Needle Adjusting Screw ............ 1
35 JGA-4041 Bushing, Spring & Knob Kit ................ 1
• These parts included in primary service Gun Repair Kit
■
KK-4987-2.
This kit should be kept on hand for service convenience.
# A quantity of necessary parts is included in Minor Repair Kit
KK-5034 for gun repair.
∆ Two Piece Packing covered by U.S. Patent No.
5,209,501.
Other patents pending.
■ Government NSN No. 4940-01-046-9919 = KK-4987-2
Torque to
20-25 ft. lbs.
26
Air Inlet
1/4" NPS(M)
Torque to
15 ft. lbs.
∆
22
23
24
25 (Optional)
17
11
13
10
9
8
Fluid Inlet
3/8" NPS(M)
*
18
19
20
15
21
1
2
Torque tip to
20-25 ft. lb.
5
6
3
7
30
27
29
28
16
31
32
33
34
35
12
14
16
*Apply thread sealant (i.e. Loctite #242,
med. strength blue or equal) to these
threads .
4
(Ref. No. 22) Needle Packing
Assembly Detail (2 piece packing)
+ Tapered edge faces out towards
packing nut.
+Inner Teflon
Piece
Fluid Packing Nut
Outer U.H.M.W.
Poly. Piece
Fluid
Needle
∆
*
