10- ENG
D28803
OPERATING INSTRUCTIONS
BASIC ELEMENTS OF A PRESSURE WASHER
High Pressure Pump (located inside the shroud): Increases the pressure of the
water supply.
Engine: Drives the high pressure pump.
High Pressure Hose: Carries the pressurized water from the pump to the gun
and wand.
Spray Gun: Connects with wand to control water flow rate, direction, and
pressure.
Quick Connect Wand: Wand is equipped with a female quick connect coupler on
the end. This allows the user to quickly change out high-pressure nozzles for
different spray patterns and change to the soap nozzle for low pressure and
chemical/soap applications. See How To Use Wand paragraph in this section.
Chemical Hose (not shown): Feeds cleaning agents into the pump to mix with
the pressurized water. See How To Apply Chemicals/Cleaning Solvents in
Operation section of this manual.
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING

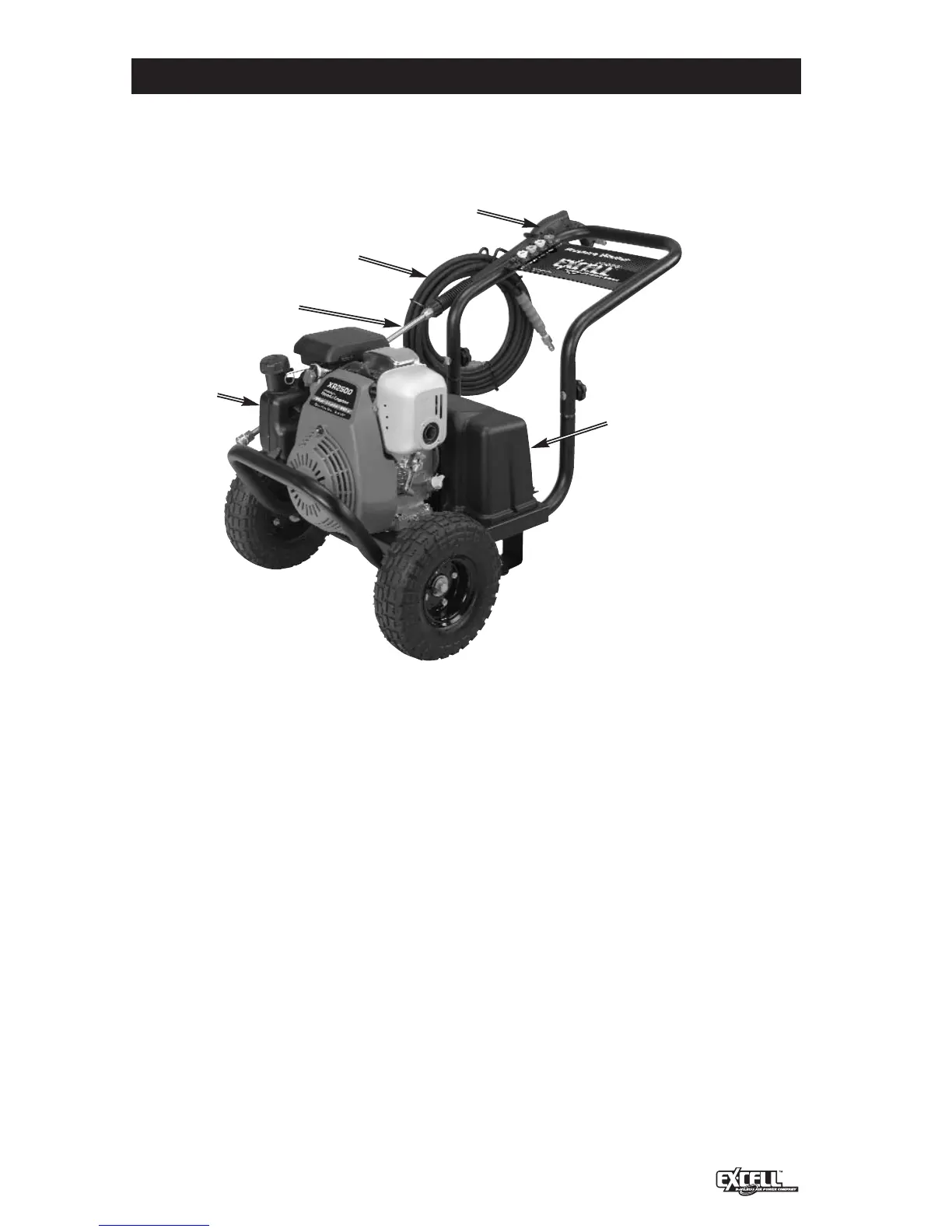

YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Engine
High
Pressure
Hose
Spray
Gun
Quick
Connect
Wand
High
Pressure
Pump
