DeVilbiss XR2500 - Assembly Instructions

8- ENG
D28803

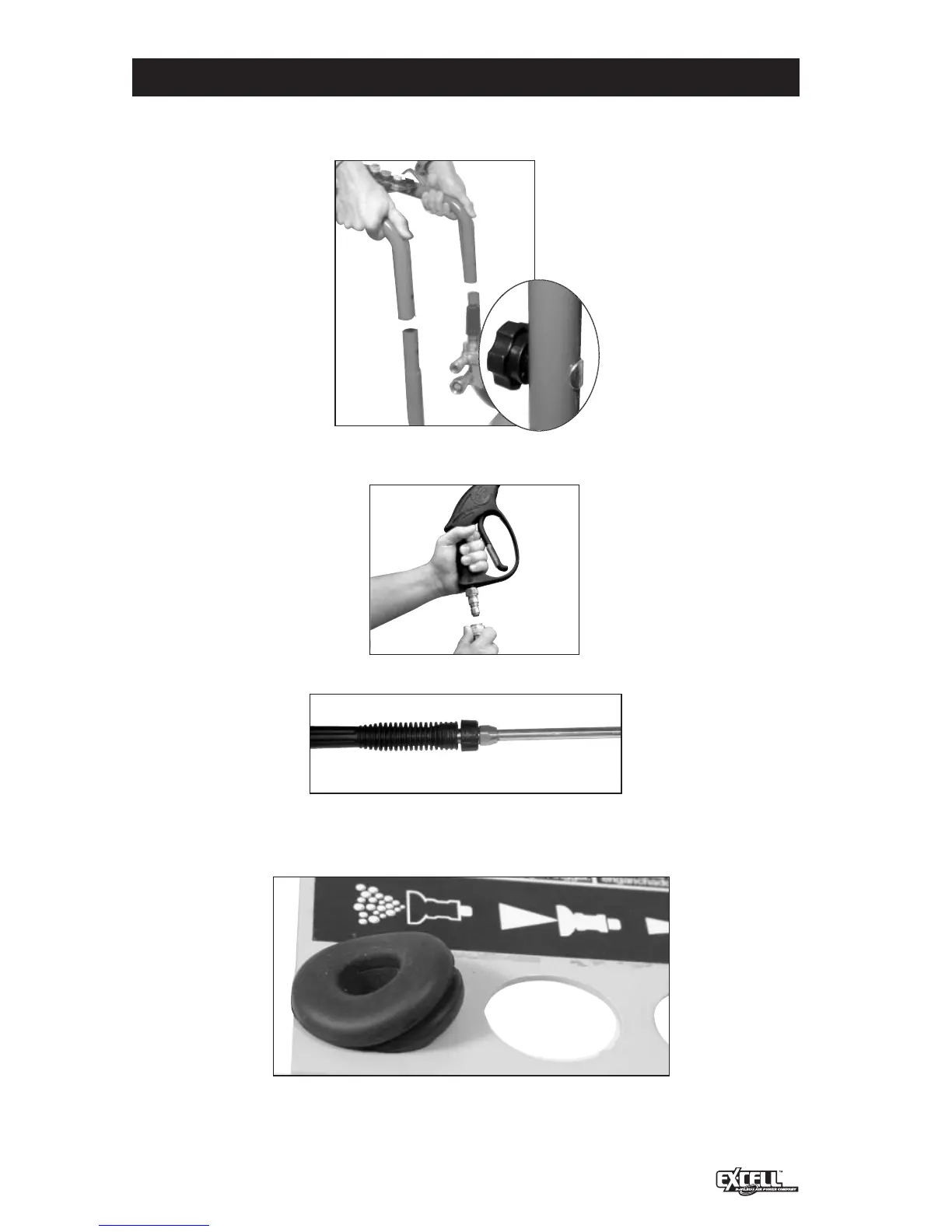

ASSEMBLY INSTRUCTIONS
3. Connect wand to gun. Tighten securely.
2. Attach high pressure hose to gun. Tighten securely.
1. Place handle assembly onto frame and connect handle to frame.
4. To Assemble Quick Connect Grommets:
a. Squeeze grommet and place into hole, fitting groove to rim.
