Devolo dLAN 1200+ User Manual

dLAN network 18
devolo dLAN 1200+
4 dLAN network
4.1 Security in the dLAN
Before you can use the dLAN 1200+ in your dLAN
network, first you have to connect it to other dLAN
devices as a home network. Two specific pieces of
information are especially important for this:
b Shared use of a dLAN password results in a
delimited dLAN network.
b Shared use of the dLAN password serves as
access control to the dLAN network as well as
the encryption, and thereby the interception
protection, of the transmitted data.
The dLAN password can be set in different ways:
b Automatically using the encryption button
(see 4.2 dLAN network encryption at the
touch of a button)
b Manually using the devolo Cockpit program
(see 3.5 Installation of devolo software).
4.2 dLAN network encryption at
the touch of a button
To encrypt a dLAN network, in which all associated
devices are equipped with an encryption button,
simply press the encryption button that is located
on the device. Pressing this button will encrypt
your dLAN network with a randomly generated
password.
Adapters cannot be configured while in
Standby mode.
The following section contains exact instructions
on the basis of possible network scenarios:

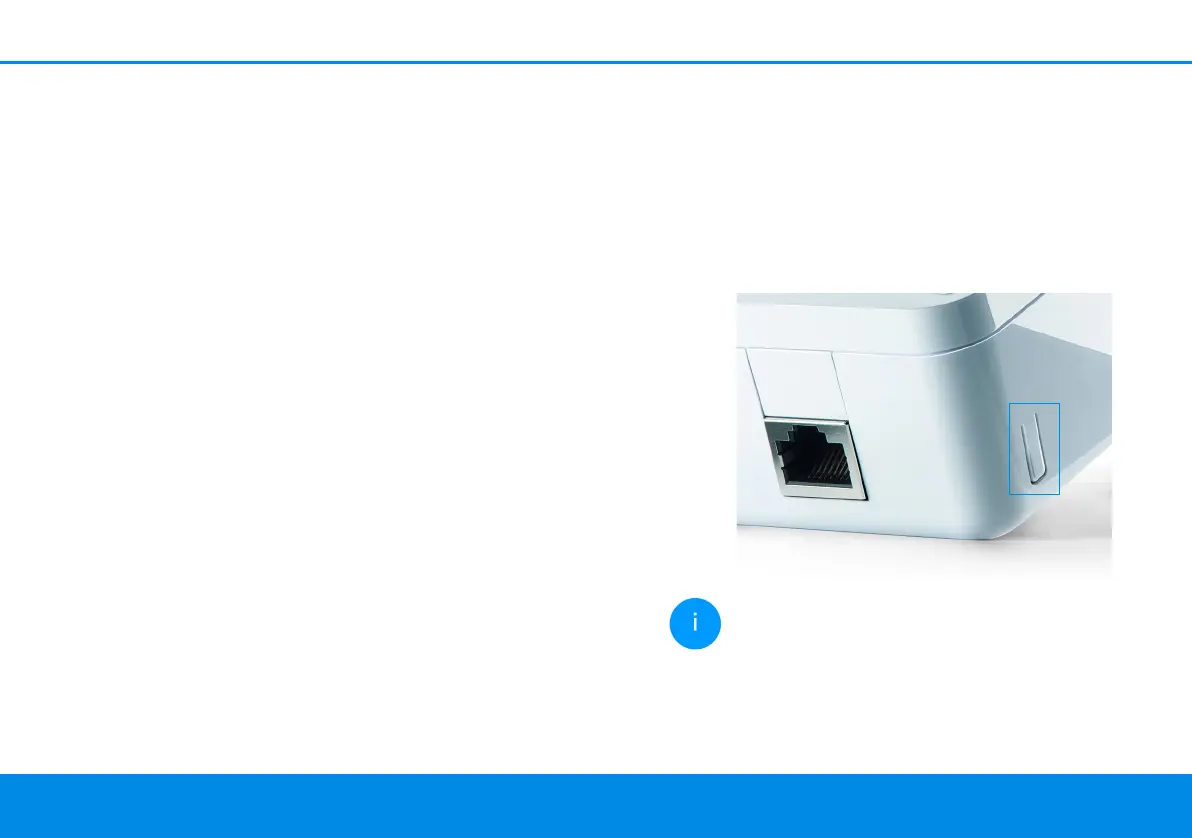

Fig. 5

Devolo dLAN 1200+ Specifications

General

Wi-Fi	No
Modulation	1024-QAM, 256-QAM, 4096-QAM, 64-QAM, BPSK, OFDM, QPSK
Power plug	-
Ethernet LAN	Yes
Damping filter	2 - 68 MHz
Security algorithms	128-bit AES
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Filter characteristics	-22 - -45 dB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	1200 Mbit/s
Maximum operating distance	400 m
Ethernet LAN interface type	Gigabit Ethernet
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Certification	CE Class B
Product color	White
Current	13 A
AC input voltage	196-250 V
AC input frequency	50 Hz
Power consumption (standby)	0.7 W
Power consumption (typical)	3 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	42 mm
Width	66 mm
Height	130 mm
Package depth	190 mm
Package width	115 mm
Package height	81 mm
Package weight	380 g
