Devolo dLAN 1200+ User Manual

Appendix 22
devolo dLAN 1200+
5 Appendix
5.1 Bandwidth optimization
To significantly improve the transmission capacity
of the network, we recommend that you comply
with the following "connection rules":
b Plug the device directly into a wall socket.
Avoid multiple sockets.
b You should connect all additional network
devices that are connected to a multiple socket
to the mains power supply via the electrical
socket integrated into the dLAN 1200+.
b To take full advantage of the filter function of
the dLAN 1200+ and to improve data transmis-
sion in the network, always plug the multiple
socket into the electrical socket of the
dLAN 1200+.

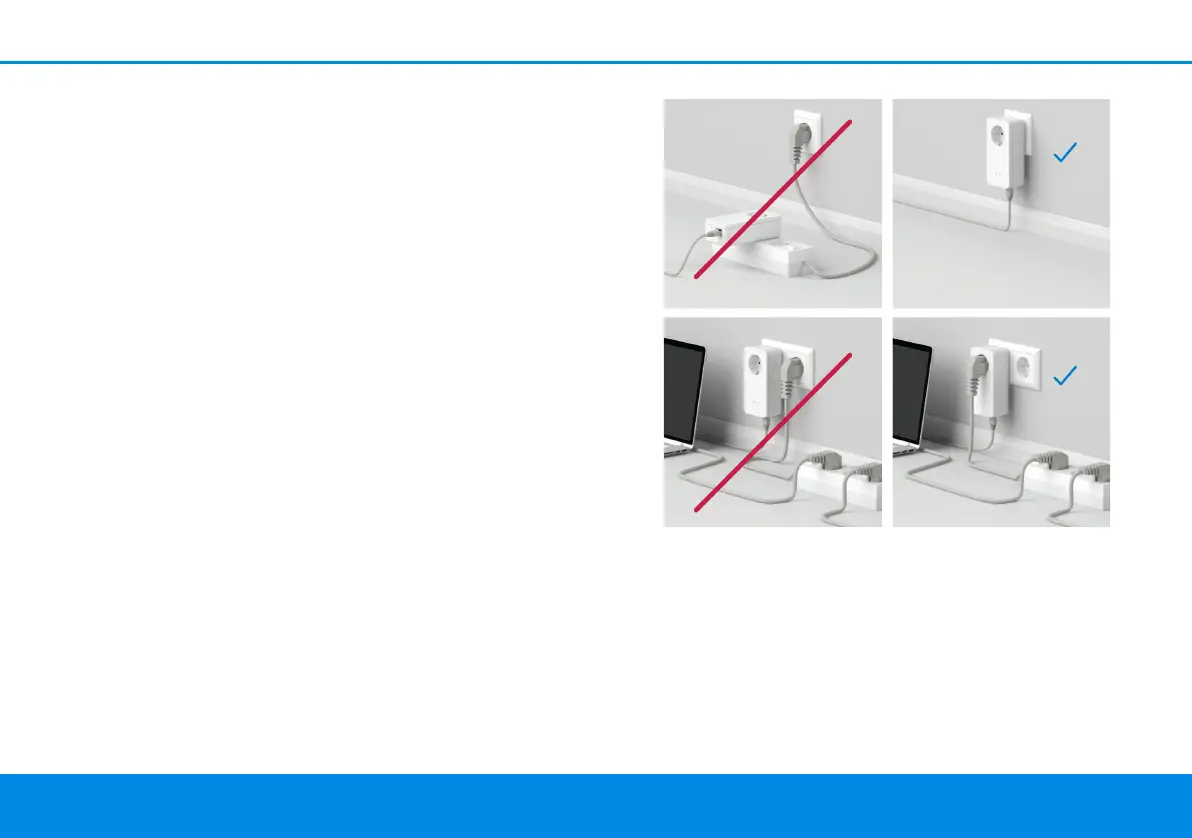

Fig.9: Bandwith optimization

Devolo dLAN 1200+ Specifications

General

Wi-Fi	No
Modulation	1024-QAM, 256-QAM, 4096-QAM, 64-QAM, BPSK, OFDM, QPSK
Power plug	-
Ethernet LAN	Yes
Damping filter	2 - 68 MHz
Security algorithms	128-bit AES
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Filter characteristics	-22 - -45 dB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	1200 Mbit/s
Maximum operating distance	400 m
Ethernet LAN interface type	Gigabit Ethernet
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Certification	CE Class B
Product color	White
Current	13 A
AC input voltage	196-250 V
AC input frequency	50 Hz
Power consumption (standby)	0.7 W
Power consumption (typical)	3 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	42 mm
Width	66 mm
Height	130 mm
Package depth	190 mm
Package width	115 mm
Package height	81 mm
Package weight	380 g
