DeWalt D25012 - COMPONENTS (Fig. 1); Intended Use

5
English
FIG. 1
H
A
C
D
G
I
E
F
B
D25013
J
A
D25023
C
D
G
E
F
B
H
J
BPM ............. beats per minute .....................earthing
IPM ............... impacts per minute terminal
RPM ............. revolutions per
..................... safety alert
minute symbol
sfpm ............. surface feet per minute
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
Motor
Be sure your power supply agrees with the nameplate marking.
Voltage decrease of more than 10% will cause loss of power and
overheating. D
EWALT tools are factory tested; if this tool does not
operate, check power supply.

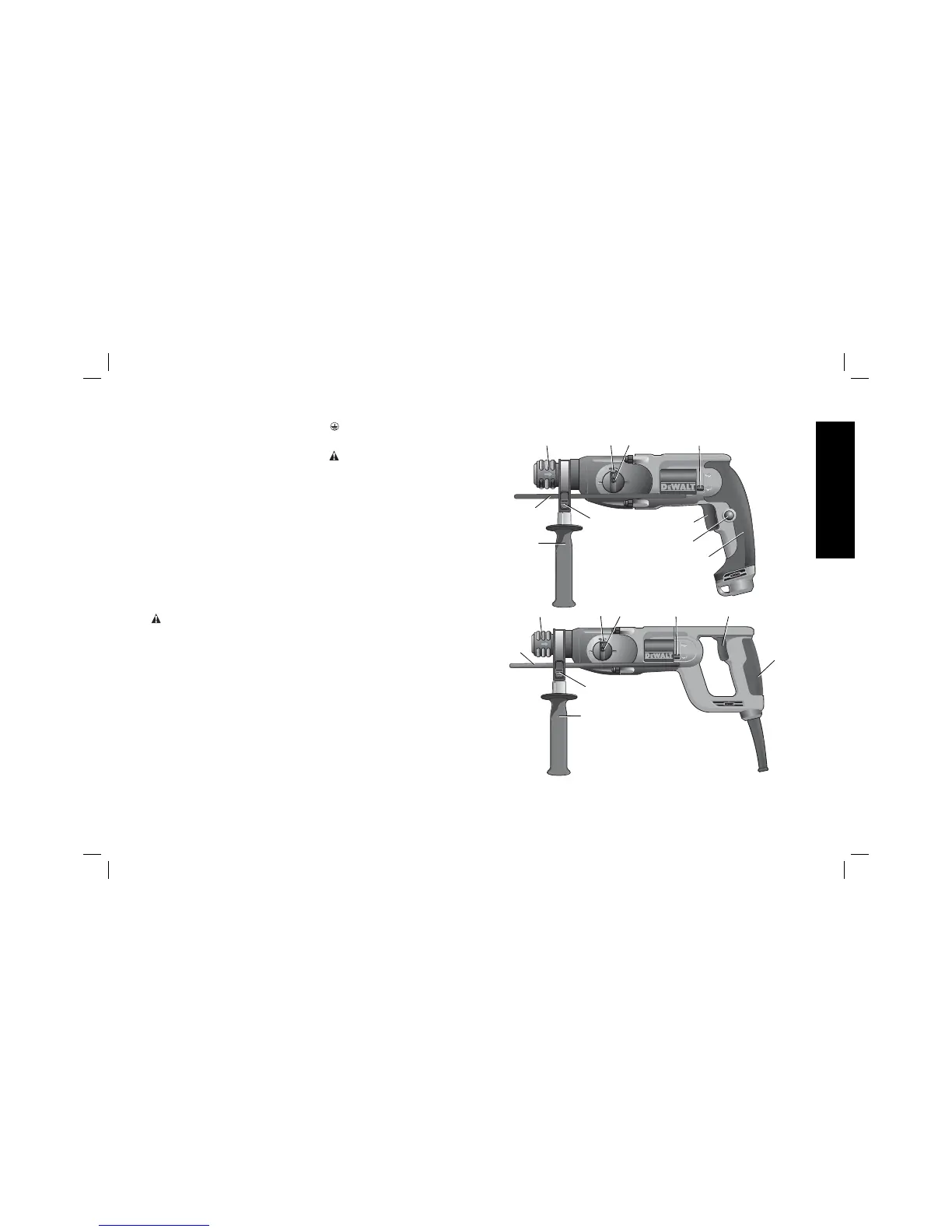

COMPONENTS (Fig. 1)
WARNING: Never modify the power tool or any part of it. Damage
or personal injury could result.
A. Variable speed trigger switch
B. Main handle
C. Side handle
D. Depth rod
E. SDS Plus
®
chuck
F. Mode selector button
G. Mode selector
H. Reversing lever
I. Lock-on button
(D25012, D25013 only)
J. Depth rod release button
INTENDED USE
These heavy-duty rotary hammers have been designed for professional
drilling and hammerdrilling, screwdriving and light chipping at various
work sites (i.e., construction sites). DO NOT use under wet conditions
or in presence of flammable liquids or gases.
These heavy-duty rotary hammers are professional power tools. DO
NOT let children come into contact with the tool. Supervision is
required when inexperienced operators use this tool.
