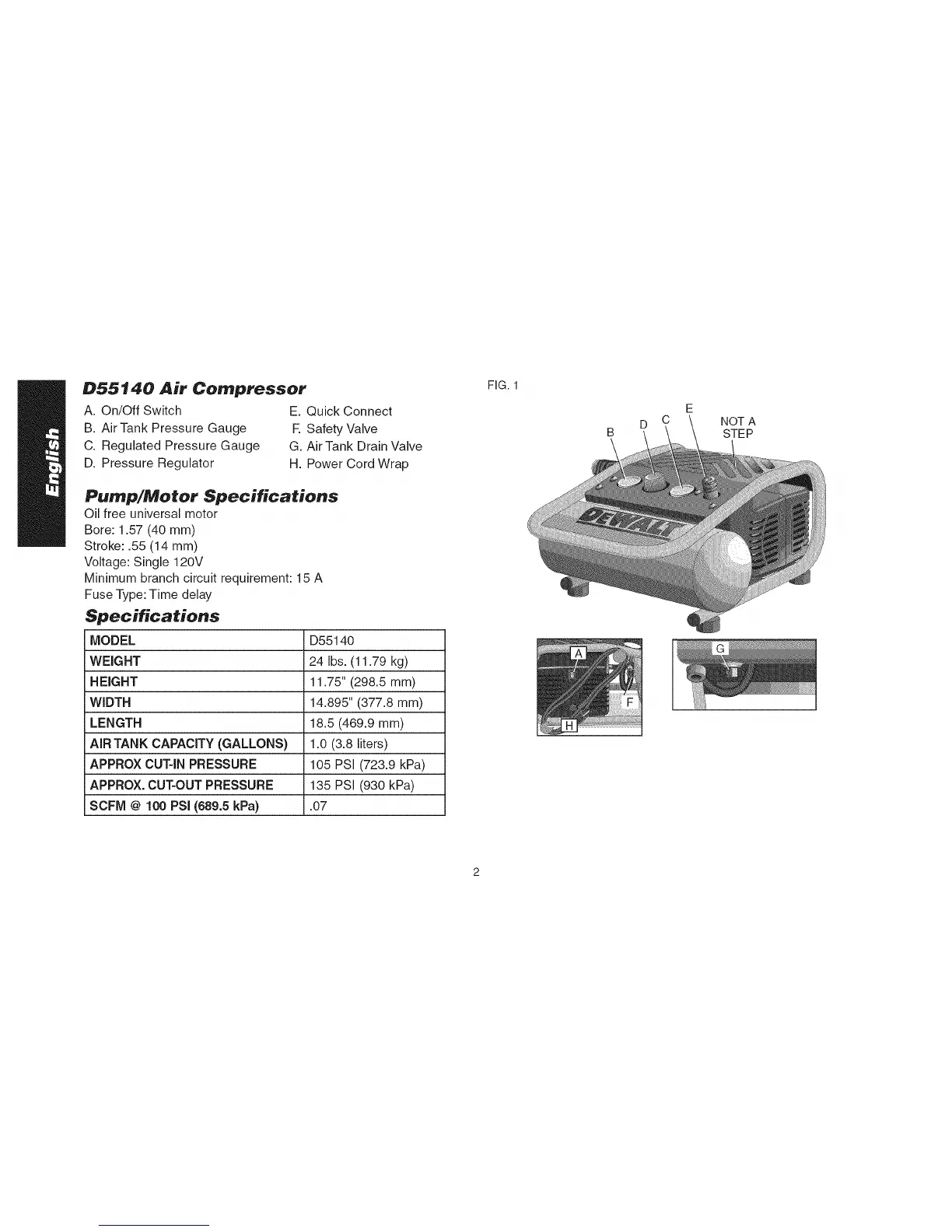

D55140 Air Compressor
A. On/Off Switch E. Quick Connect
B. Air Tank Pressure Gauge R Safety Valve
C. Regulated Pressure Gauge G. Air Tank Drain Valve
D. Pressure Regulator H. Power Cord Wrap
Pump/Motor Specifications
Oil free universal motor
Bore: 1.57 (40 mm)
Stroke: .55 (14 mm)
Voltage: Single 120V
Minimum branch circuit requirement: 15 A
Fuse Type: Time delay
Specifications
MODEL D55140
WEIGHT 24 Ibs. (11.79 kg)
HEIGHT 11.75" (298.5 mm)
WIDTH 14.895" (377.8 mm)
LENGTH 18.5 (469.9 mm)
AIR TANK CAPACITY (GALLONS) 1.0 (3.8 liters)
APPROX CUT-IN PRESSURE 105 PSI (723.9 kPa)
APPROX. CUT-OUT PRESSURE 135 PSI (930 kPa)
SCFM @ 100 PSI (689.5 kPa) .07
FIG. 1
NOT A
STEP
