• Equipareaofoperationwitha
fireextinguisher.
• Donotoperatemachinewith
missing,broken,orunautho-
rizedparts.
WARNING: RiSK OF FALLING
WHAT CAN HAPPEN HOWTO PREVENTIT
A portable compressor _ Always operate compressor
can fall from a table, in a stable secure position to
workbench, or roof causing prevent accidental movement
damage to the compressor of the unit. Never operate
and could result in serious compressor on a roof or
njury or death to the other elevated position. Use
operator, additio nal air hose to reach
high locations.
A CAUTION: RISK FROM NOISE
WHAT CAN HAPPEN HOWTO PREVENT IT
Under some conditions and • Always wear certified safety
duration of use, noise from equipment: ANSI S12.6
this product may contribute (S3.19) hearing protection.
to hearing loss.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE

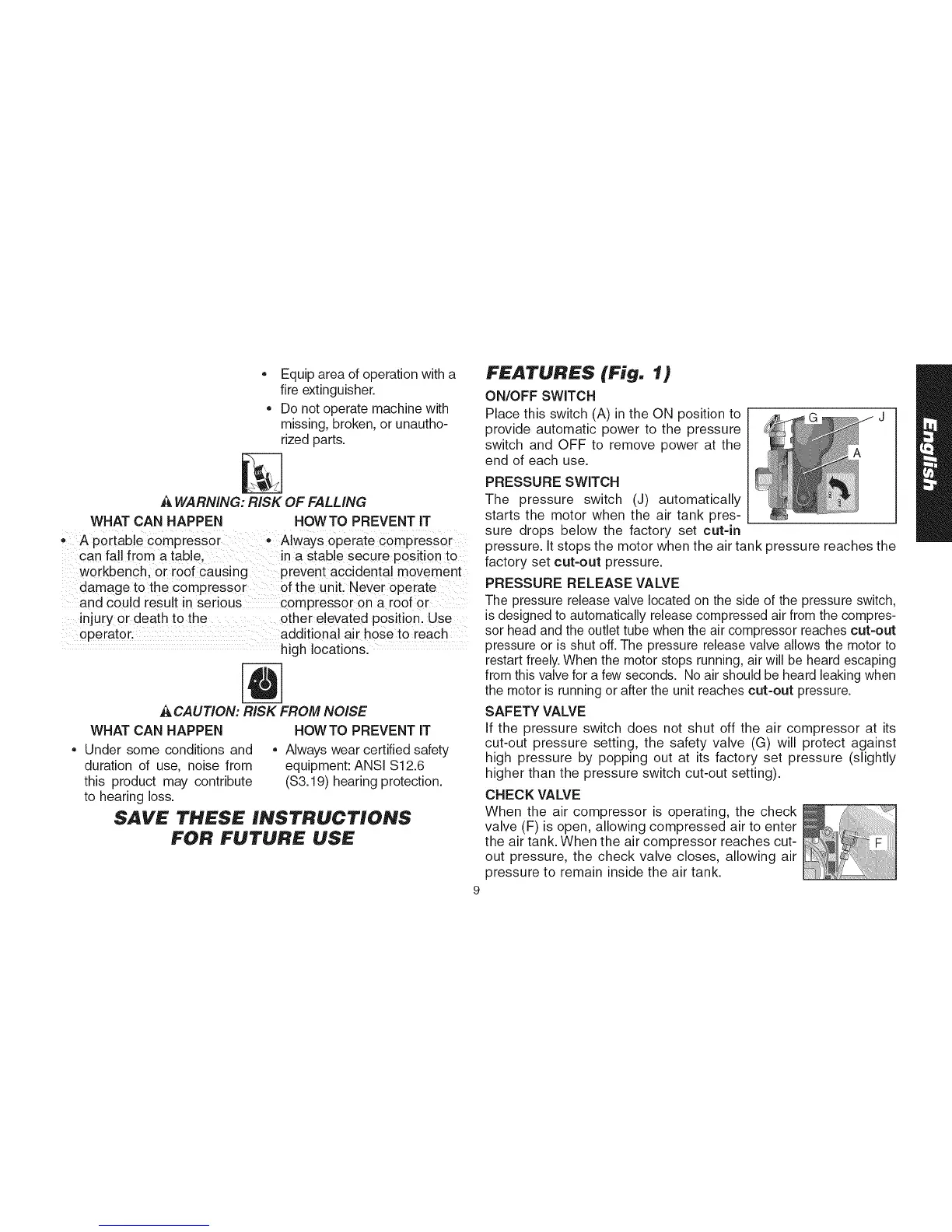

FEATURES (Fig. 1)
ON/OFF SWITCH
Place this switch (A) in the ON position to
provide automatic power to the pressure
switch and OFF to remove power at the
end of each use.
PRESSURE SWITCH
The pressure switch (J) automatically
starts the motor when the air tank pres-
sure drops below the factory set cut-in
pressure. It stops the motor when the air tank pressure reaches the
factory set cut-out pressure.
PRESSURE RELEASE VALVE
The pressure release valve located on the side of the pressure switch,
is designed to automatically release compressed air from the compres-
sor head and the outlet tube when the air compressor reaches cut-out
pressure or is shut off. The pressure release valve allows the motor to
restart freely.When the motor stops running, air will be heard escaping
from this valve for a few seconds. No air should be heard leaking when
the motor is running or after the unit reaches cut-out pressure.
SAFETY VALVE
If the pressure switch does not shut off the air compressor at its
cut-out pressure setting, the safety valve (G) will protect against
high pressure by popping out at its factory set pressure (slightly
higher than the pressure switch cut-out setting).
CHECK VALVE
When the air compressor is operating, the check
valve (F) is open, allowing compressed air to enter
the air tank. When the air compressor reaches cut-
out pressure, the check valve closes, allowing air
pressure to remain inside the air tank.
