DeWalt D55684 User Manual

3
English
Specifi cations
MODEL WEIGHT HEIGHT WIDTH LENGTH
AIR TANK
CAPACITY
(GALLONS)
APPROX.
UNLOADER
RESET
PRESSURE
APPROX.
BLOW OFF
PRESSURE
TYPICAL VALUES
@ 100 PSI SCFM
D55684 185 lbs.
(83.9 kg)
22.3"
(566.4 mm)
24.2"
(614.68 mm)
50"
(1270 mm)
10.5
39.7 liters
120 PSI 150 PSI 10.5
Tested per
ISO 1217
Hot Surfaces
Defi nitions: Safety Guidelines
The definitions below describe the level of severity
for each signal word. Please read the manual and
pay attention to these symbols.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING: Indicates a potentially hazardous
situation which, if not avoided, could result in death
or serious injury.
CAUTION: Indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION: Used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT
THIS OR ANY D
E WALT TOOL, CALL US TOLL FREE AT:
1-800-4-D
EWALT (1-800-433-9258)

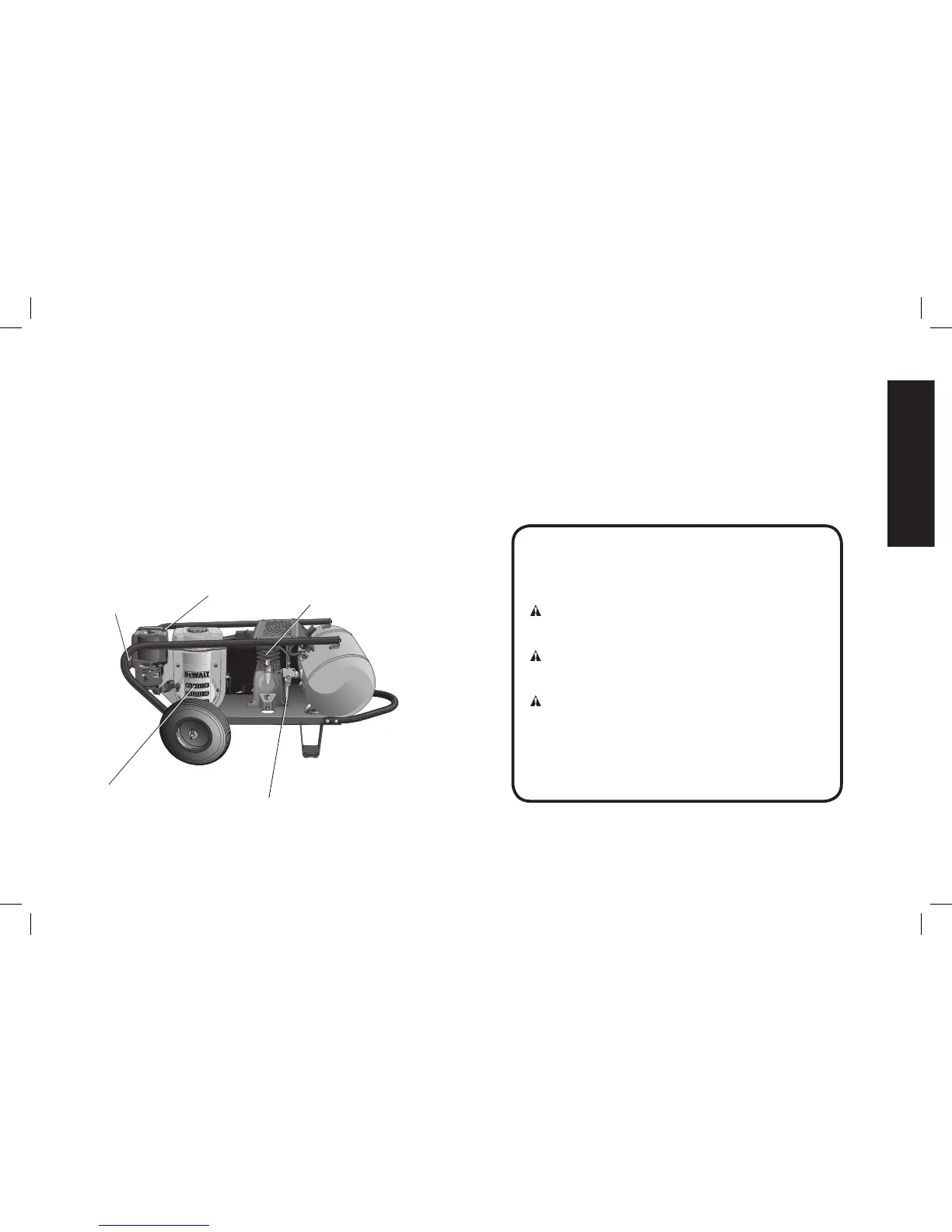

FIG. 2
PUMP CYLINDER
AND HEAD
CROSSOVER BAR
ENGINE
MUFFLER
GASOLINE
ENGINE
AFTERCOOLER
