DeWalt D55684 User Manual

2
English
A. Pump Air Intake Filter
B. Engine Air Filter
C. Engine On/Off Switch
D. Air Tank Pressure Gauge
E. Regulated Pressure Gauge
F. Pressure Regulator
G. Air Outlet
H. Unloader Valve
I. Safety Valve
J. Air Tank Drain Valve
K. Throttle Control
Pump Specifi cations
Inline, vertical twin cylinder
Single stage
Oil lubricated
Cast iron crankcase and cylinder
Bore: 2.756" (70 mm)
Stroke: 2.26" (57.5 mm)
Weight: 46 lbs. (20.86 kg)
Oil Capacity: 24.7 oz. (730 mL)
D55684 Air Compressor
L. Pump Oil Dipstick
M. Pump Oil Drain Plug
N. Belt Tensioning Bolt
O. Low Oil Shut Down
P. Handle
Q. Handle Bracket
R. Fixed Throttle
S. Choke Control
T. Fuel Valve Lever
U. Starter Grip
Engine Specifi cations
DEWALT 196 cc
Internal Combustion
4-stroke
High RPM 3000 - 3200
Idle RPM 1800 - 2200
I
B
A
C
M
L
H
Q
P

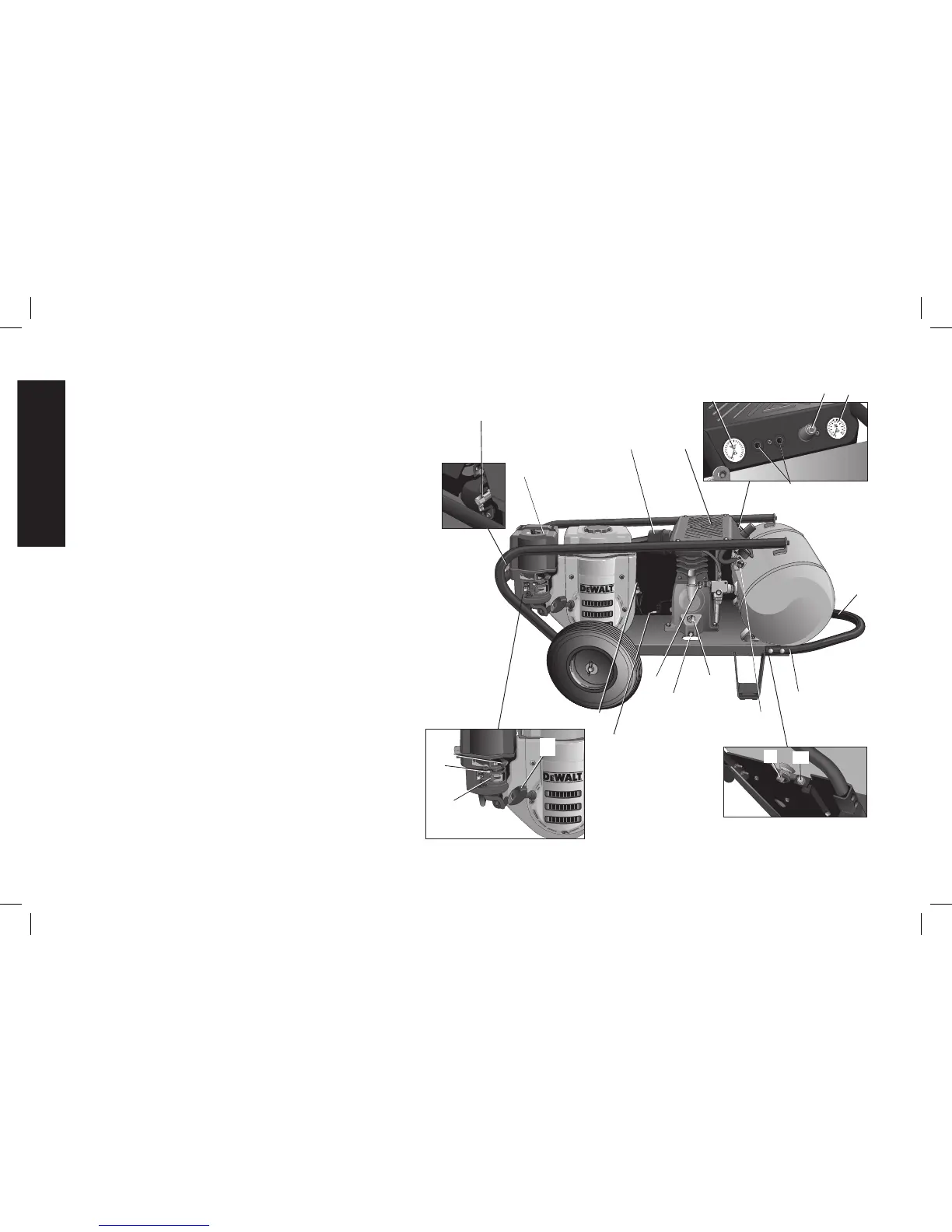

FIG. 1
NOT A
STEP
N
J
O
K
R
S
T
U
200
180
160
140
120
100
80
60
40
20
E
F
D
G
