12
English
WARNING: Before removing or installing battery,
make
certain the lock-off lever is engaged
to prevent switch actuation.
Insert battery pack (N) into battery housing
(Q) as shown in until fully seated and an audible click is heard.
Make sure battery pack is fully seated and fully latched into position.
FIG. 3
Q
N
FIG. 4
O
: Depress the battery release button (O) in
the back of the battery housing and pull battery pack out of tool as
shown in
Some D
eWALT battery packs include a fuel gauge which consists of
three green LED lights that indicate the level of charge remaining in
the battery pack.
To actuate the fuel gauge, press and hold the fuel gauge button (5A).
A combination of the three green LED lights will illuminate designating
2. For long storage, it is recommended to store a fully charged battery
pack in a cool dry place out of the charger for optimal results.
NOTE: Battery packs should not be stored completely depleted of
charge. The battery pack will need to be recharged before use.

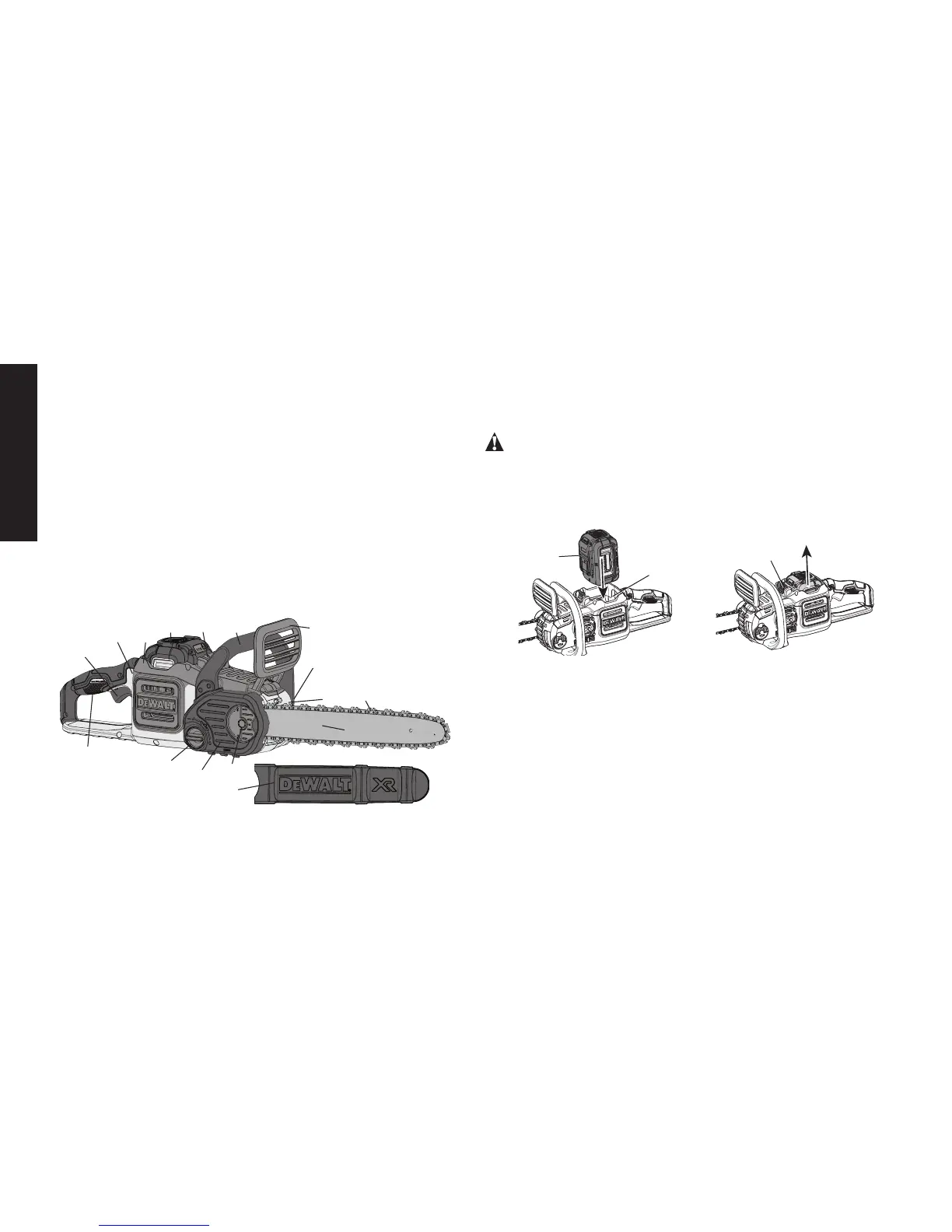

A. Variable speed trigger switch I. Oil level indicator
B. Lock-off lever J. Guide bar scabbard
C. Chain brake / front hand guard K. Rear handle
D. Guide bar L. Front handle
E. Saw chain M. Battery housing
F. Sprocket cover N. Battery Pack
G. Bar adjust locking knob O. Battery release button
H. Chain tensioning knob P. Oil cap (not shown)
N
G
D
F
E
A
FIG. 2
B
H
J
C
M
K
L
I
P
O
