DeWalt DCH133M2 User Manual

ENGLISH
32
Intended Use
Your heavy-duty cordless rotary hammers are designed for
professional concrete drilling and chiselingapplications.
DO NOT use under wet conditions or in presence of
flammable liquids orgases.
Your heavy-duty cordless rotary hammers are professional
power tools.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.

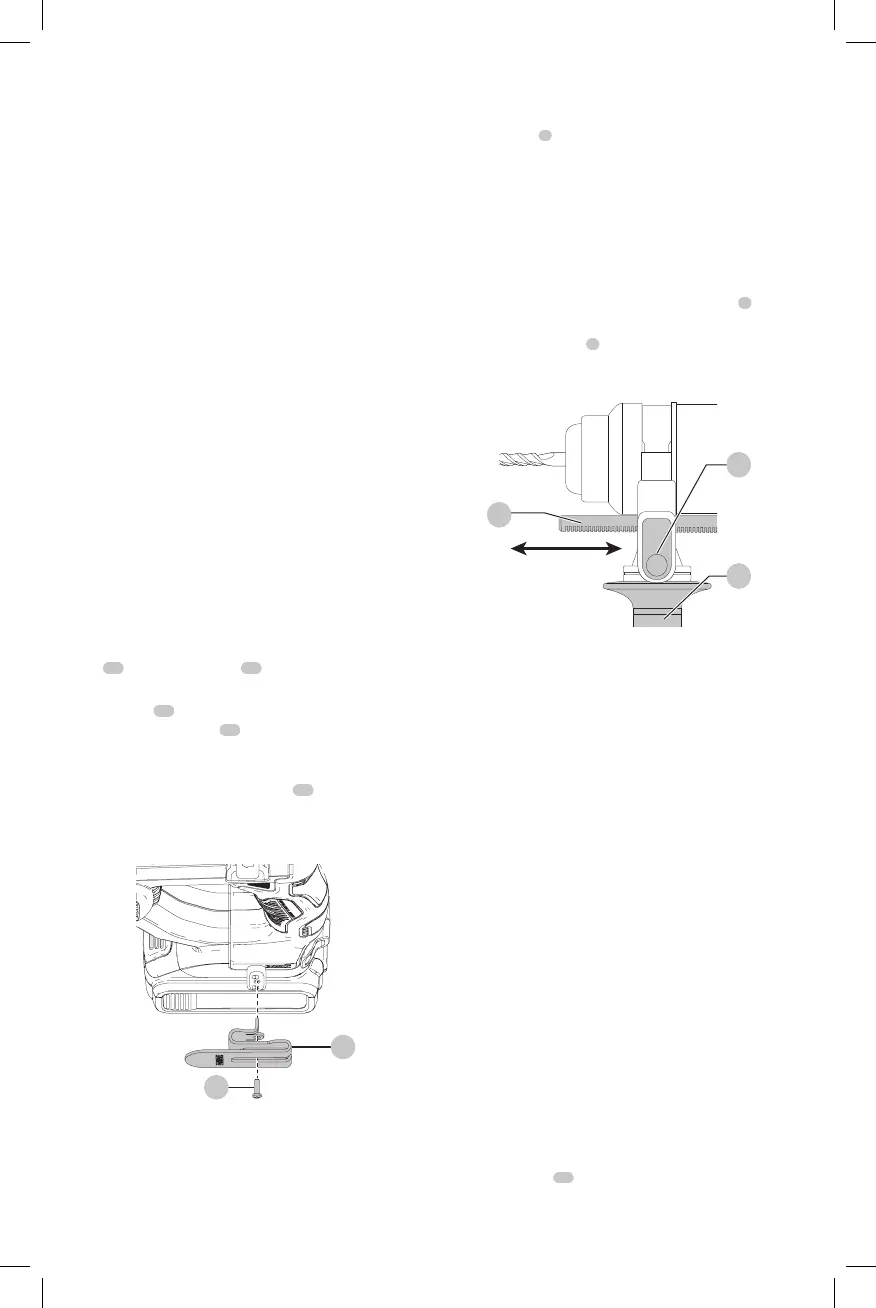

Belt Hook (Optional Accessory) (Fig. D)

WARNING: To reduce the risk of serious personal
injury, ONLY use the tool’s belt hook to hang the
tool from a work belt. DO NOT use the belt hook
for tethering or securing the tool to a person
or object during use. DO NOT suspend tool
overhead or suspend objects from the belt hook.

WARNING: To reduce the risk of serious personal
injury, ensure the screw holding the belt hook
issecure.
IMPORTANT: When attaching or replacing the belt
hook
15
, use only the screw
16
that is provided. Be sure to
securely tighten the screw.
The belt hook
15
can be be attached to either side of the
tool using only the screw
16
provided, to accommodate
left- or right- handed users. If the hook is not desired at all, it
can be removed from the tool.
To move belt hook, remove the screw
16
that holds the
belt hook in place then reassemble on the opposite side. Be
sure to securely tighten the screw.
16
15
Fig. D
Side Handle and Depth Rod (Fig. A, E)

WARNING: To reduce the risk of personal injury,
ALWAYS operate the tool with the side handle
properly installed. Failure to do so may result in
the side handle slipping during tool operation and
subsequent loss of control. Hold tool with both hands
to maximizecontrol.
The side handle
3
clamps to the front of the gear case
and may be rotated 360˚ to permit right- or left-hand use.
The side handle must be tightened sufficiently to resist the
twisting action of the tool if the accessory binds or stalls. Be
sure to grip the side handle at the far end to control the tool
during astall.
To loosen side handle, rotatecounterclockwise.
To Adjust the Depth Rod (Fig. E)
1. Push in and hold the depth rod release button
9
on the
side handle.
2. Move the depth rod
8
so the distance between the
end of the rod and the end of the bit equals the desired
drilling depth.
Fig. E
3
8
9
3. Release the button to lock rod into position. When
drilling with the depth rod, stop when end of rod
reaches surface of material.
Bit and Bit Holder

WARNING: Burn Hazard. ALWAYS wear gloves when
changing bits. Accessible metal parts on the tool and
bits may get extremely hot during operation. Small
bits of broken material may damage barehands.
The hammerdrill can be fitted with different bits depending
on the desired application. Use sharp drill bits only.
Bit Reccomendations
• For wood, use twist bits, spade bits, power auger bits or
hole saws.
• For metal, use high-speed steel twist drill bits or
holesaws. Use a cutting lubricant when drilling metals.
The exceptions are cast iron and brass which should be
drilleddry.
• For masonry, such as brick, cement, cinder block, etc.,
use carbide-tipped bits rated for percussiondrilling.
SDS Plus Bit Holder (Fig. F)
NOTE: Special adapters are needed to use the SDS Plus bit
holder with straight shank bits and hexagonal screwdriver
bits. Refer to Accessories.
To insert a drill bit or other accessory:
1. Insert the shank of the bit about 19mm (3/4") into SDS
Plus bit holder
11
.
2. Push and rotate bit until it locks in place. The bit will be
securelyheld.
