Description (Fig.A)
WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Speed trigger (DCS334), On/Off switch (DCS335)
2
Lock‑off button (DCS334 only)
3
Speed control dial
4
Blade release latch
5
Finger guard
6
Orbital action lever
7
Shoe
8
Shoe bevel lever
9
Handle
10
Date code
Intended Use
Your DCS334 and DCS335 jig saws are designed for professional
cutting of wood, steel, aluminium, plastic and ceramic material
at various work sites (i.e., constructionsites).
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
Date Code Position (Fig.A)
The date code
10
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2019 XX XX
Year of Manufacture
Markings on Tool

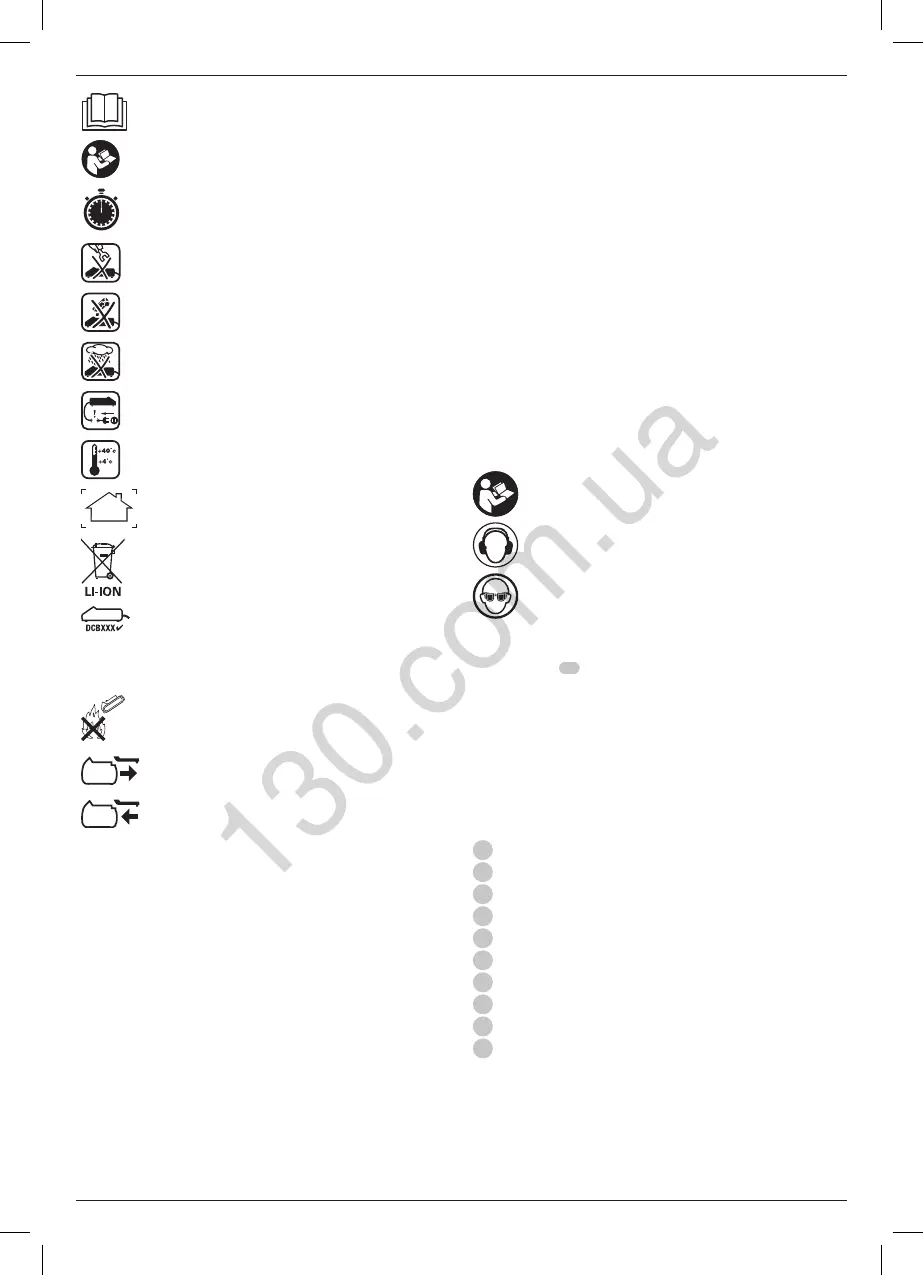

The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
2 Li‑Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2, Y2
models)
3 Li‑Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3, Y3,
models)
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by
is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Package Contents
The package contains:
1 Cordless jigsaw
1 Anti‑scratch shoe cover
1 Dust port
1 Dust shroud
1 Dust chute
1 Li‑Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1, Y1 models)
Battery Type
The DCS334, DCS335 operates on an 18 volt batterypack.
These battery packs may be used: DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B, DCB185, , DCB546, DCB189
DCB546, DCB548, DCB187, DCB547. Refer to Technical Data for
moreinformation.
Read instruction manual beforeuse.
See Technical Data for chargingtime.
Do not probe with conductiveobjects.
Do not charge damaged batterypacks.
Do not expose towater.
Have defective cords replacedimmediately.
Charge only between 4˚C and 40˚C.
Only for indooruse.
Discard the battery pack with due care for
theenvironment.
Charge
battery packs only with designated
chargers. Charging battery packs other
than the designated
batteries with a
charger may make them burst or lead to
other dangeroussituations.
Do not incinerate the batterypack.
USE (without transport cap). Example: Wh rating
indicates 108Wh (1 battery with 108Wh).
TRANSPORT (with built‑in transport cap). Example:
Wh rating indicates 3x 36Wh (3batteries of 36Wh).
