ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.

WARNING: To reduce the risk of serious personal
injury, always wear ANSI compliant eyeprotection.
Assembling the Dust Port (Fig. D, E)
(Optional Accessory)
1. Fully loosen depth adjustment lever (
4
, Fig. D).
2. Align the dust port–back half
19
over upper blade
guard
20
as shown. Be sure to insert the tab
21
into
the casting notch on the tool as shown in FigureE.
When installed correctly, it will snap fully over the
original depth of cutpointer.
3. Align the dust port
22
with the dust port–back
half
19
.
4. Insert two dust port screws
23
as shown and
tightensecurely.

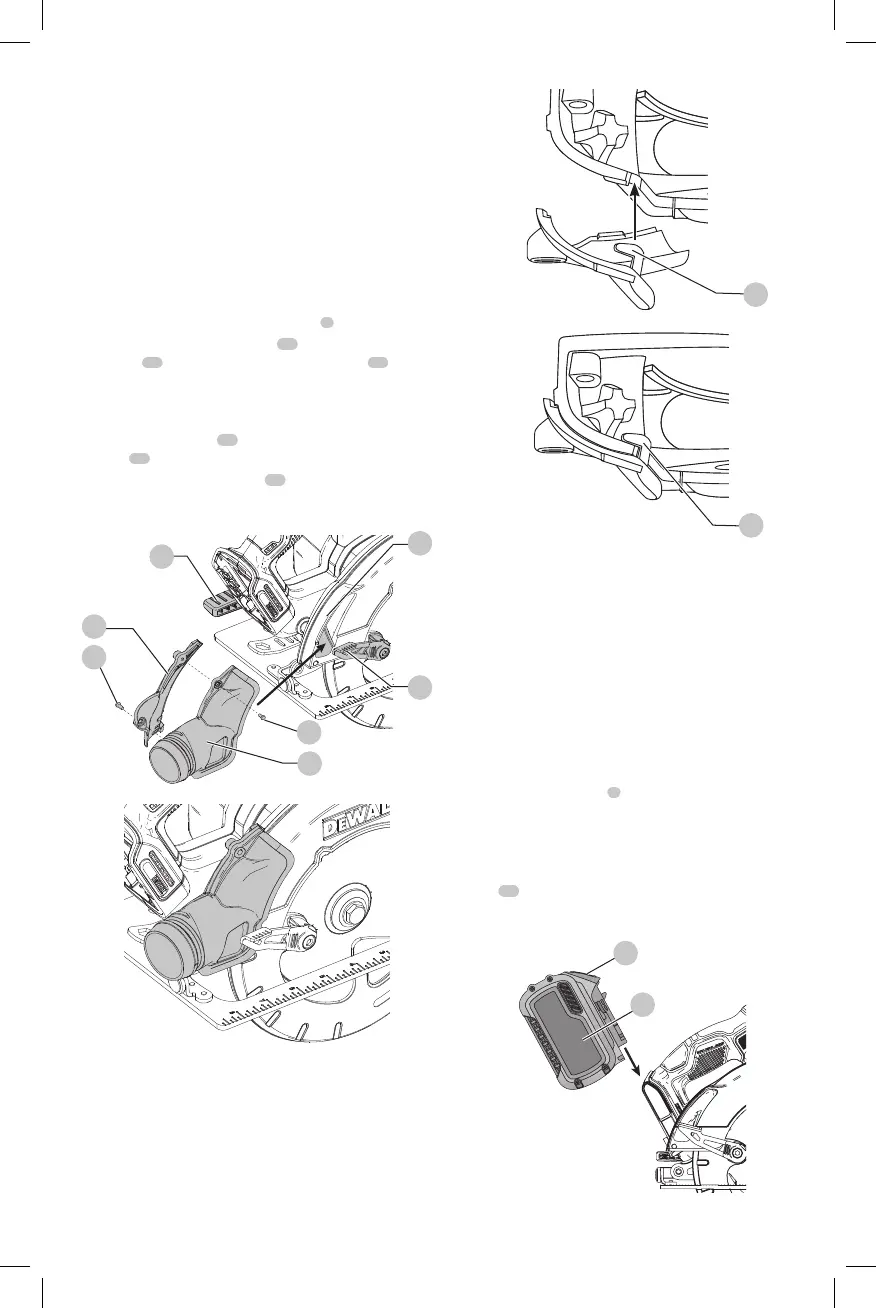

Fig. D
20
4
6
19
22
23
23
Fig. E
21
21
OPERATION

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Installing and Removing the Battery Pack
(Fig. F)
NOTE: For best results, make sure your battery pack is
fullycharged.
To install the battery pack
3
into the tool handle, align the
battery pack with the rails inside the tool’s handle and slide
it into the handle until the battery pack is firmly seated in
the tool and ensure that it does notdisengage.
To remove the battery pack from the tool, press the release
button
13
and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of thismanual.
Fig. F
13
3
