DeWalt DW716 User Manual

English
4
Clamp: DW7082
Used for firmly clamping workpiece to the saw table for precision cutting.
Dust Bag: DW7053 (Included with some models)
Equipped with a zipper for easy emptying, the dust bag will capture the majority
of the sawdust produced (not shown).
NOTE: Deflector on dust spout channels debris to ground. Spout has a provision
to attach a vacuum hose to collect sawdust. Lift dust spout to connect hose.
Crown Molding Fence: DW7084
Used for precision cutting of crown molding.
Kerf Plate Blank: DW7055
Used to limit back side tear out of material or as a replacement kerf plate.
SAW BLADES: ALWAYS USE 12" SAW BLADES WITH 1" ARBOR HOLES. SPEED
RATING MUST BE AT LEAST 4800 RPM. Never use a smaller diameter blade. It will
not be guarded properly.
Unpacking Your Saw
Check the contents of your miter saw carton to make sure that you have received all
parts. In addition to this instruction manual, the carton should contain:
1. One No. DW716 miter saw.
2. One D
EWALT 12" dia. saw blade
3. One blade wrench in wrench pocket shown in Figure 2.
4. One DW7053 dustbag (some models).
BLADE DESCRIPTIONS
TOOTH
APPLICATION MODEL # DIAMETER TEETH GRIND
Construction Saw Blades (thin kerf with anti-stick rim)
General Purpose DW3123 12" 32 ATB
Fine Crosscuts DW3126 12" 60 ATB
Fine Crosscuts DW3128 12" 80 ATB
Woodworking Saw Blades (provide smooth, clean cuts)
Fine crosscuts DW7648 12" 60 ATB
Fine crosscuts DW7649 12" 80 ATB
Ultra-fine crosscuts DW7650 12" 96 ATB
Laminates DW7661 12" 80 TCG
Solid surface
and plastics DW7668 12" 80 Mod TCG
Non-ferrous metals DW7666 12" 80 TCG

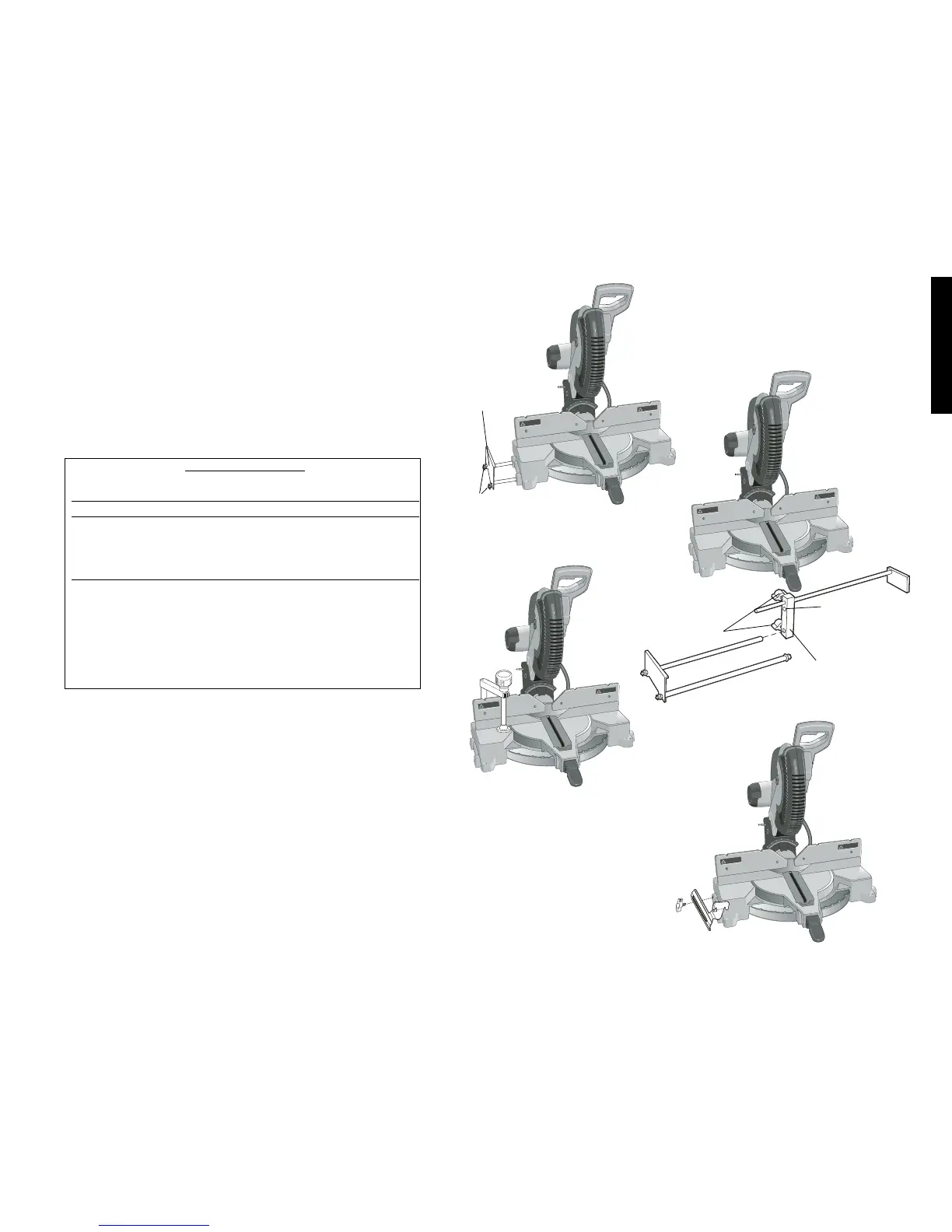

DW7051
KNOBS
BRACKET
TOP HOLE
(USE FOR
DW716)
LOCKNUTS
END
PLATE
DW7080
DW7082
DW7084
45˚ bevel - Left
Max. Height 2.3" (58.4 mm) Result Width 7.4" (188mm)
Max. Width 7.9" (200.7mm) Result Height 1.9" (48.3 mm)
45˚ bevel - Right
Max. Width 7.9” (200.7mm) Result Height 1.1" (28mm)
Max. Height 1.6" (40.6 mm) Result Width 7.1" (180.3mm)
Specifications
CAPACITY OF CUT
50˚ miter left and right
48˚ bevel left and right
0˚ miter
Max. Height 3.6" (91.5mm) Result Width 7.2" (183mm)
Max. Width 7.9" (200.7mm) Result Height 2.9" (73.7mm)
45˚ miter
Max. Height 3.6" (91.5mm) Result Width 4.9" (125mm)
Max. Width 5.5" (140mm) Result Height 2.9" (73.7mm)

DeWalt DW716 Specifications

General

Type	Compound Miter Saw
Blade Diameter	12 inches
Amperage	15 amps
Tool Weight	44 lbs
Power Source	Corded
Voltage	120V
Bevel Capacity	48° left and right
Miter Capacity	50° left and right
Arbor Size	1 inch
Vertical Capacity Baseboard Against Fence	6-1/2 in
Horizontal Capacity Baseboard Lying Flat	8 in
45° Bevel Cut Capacity	4x6 in
45° Miter Cut Capacity	4x6 in
Vertical Capacity Crown Molding Vertically Nested	6-5/8 inches
