B. Loosen chuck retaining set screw with 1/8" (3 mm) allen wrench
until chuck and detent spring can be removed from swinghead.
C. Adjust latch set screw with 1/16" (1.6 mm) allen wrench so that
swinghead locks firmly into sharpening position.
D. Replace detent spring (note orientation of “U” and “V” shaped
projections) and chuck.
E. Tighten set screw so that chuck is snug in swinghead but can
be easily rotated.
3. Finger Guard and Guard Band (Fig. 27)
Adjust opening between guards and wheel to 1/16" (1.6 mm) by
means of adjusting screws as shown. Maintain clearance as wheel
wears.
NOTE: This sharpener is completely adjusted at the factory.
However, due to rough handling that might occur during shipment,
slight readjustments may be necessary. Please take a few minutes to
check the adjustments of your unit.
9
English

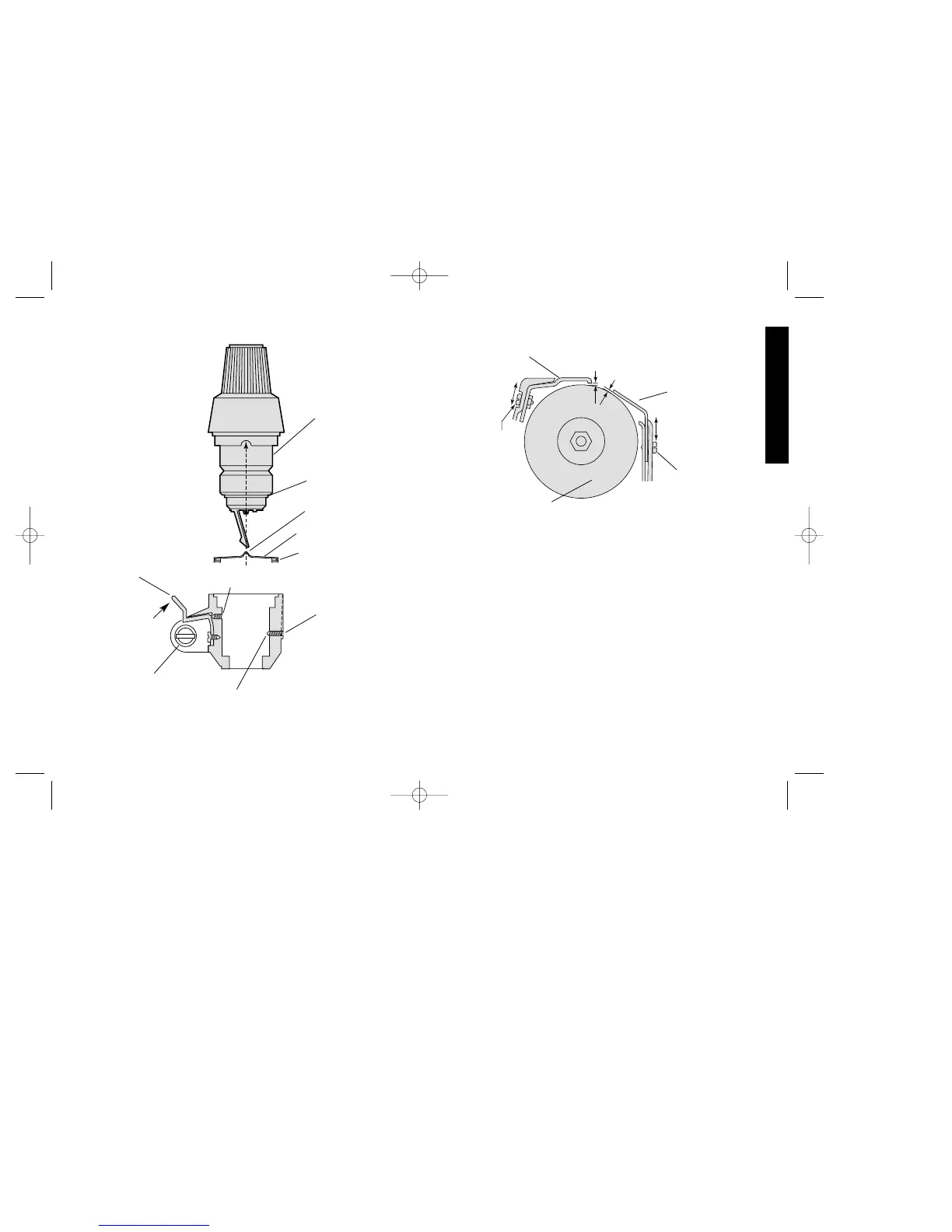

FIG. 26
CHUCK
FELT SEAL
“V” SHAPE UP
DETENT SPRING
“U” SHAPE DOWN
CHUCK
RETAINING
SET SCREW
PLUG
LATCH SET SCREW
SWINGHEAD
CLAMP SCREW
PRESS
FIG. 27
GUARD
BAND
ADJUSTING
SCREW
GRINDING
WHEEL
FINGER GUARD
ADJUSTING
SCREW
FINGER
GUARD
GUARD
BAND
LATCH
1/16”
(1.6 MM)
1/16”
(1.6 MM)
