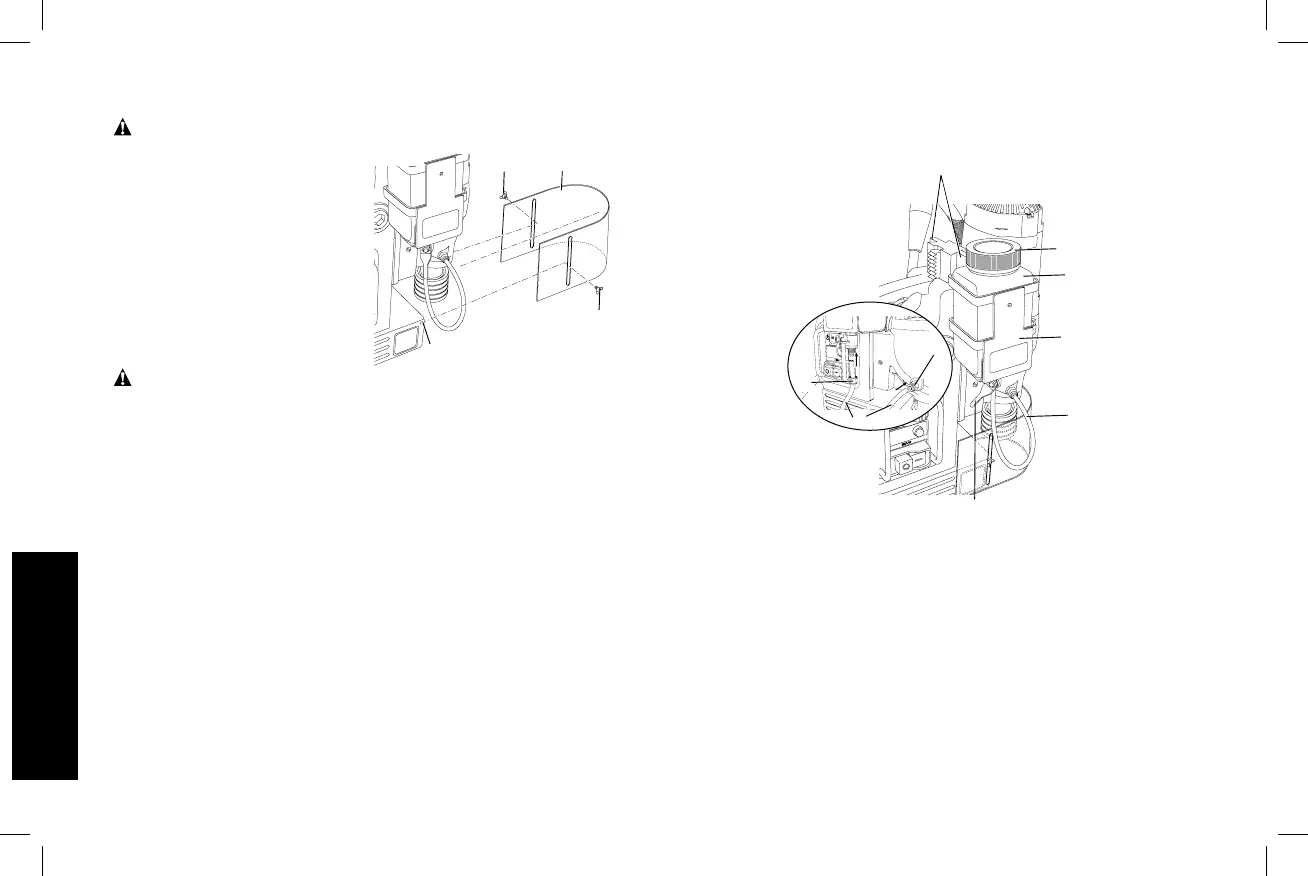

Mounting the drill guard (fig. 3)
WARNING: Alwaysusethedrillguard.
1. Hold the guard (I) in front of
overload
S
FIG. 3
I
R
R
the tool holder, aligning the
slots in the guard with the
holes (S) in the machine.
2. Fit the screw (R) into the hole
(S) located in the front of the
frame.
Fitting the
lubrication system
(fig. 4)
WARNING: Do not use the
lubrication system in vertical or overhead drilling applications.
The lubrication system can be used for horizontal drilling applications
(the drill being used vertically).
1. With the coolant bottle (J) placed into the magnetic bracket
(E), slide the magnetic bracket onto the either side of the steel
strip(T).
2. Attach the coolant tube (K) to the coolant bottle:
a. Remove the nut (U) and thread it onto the tube (K).
b. Slide the tube onto the nipple and tighten the nut (U).
3. Attach the tube to the quick-release connector (L) on the gearbox.
a. Push the coolant tube (K) in to install.
b. To remove, push the collar on the connector (L) in and pull the
tube from the connector.
In order to use the lubrication system, the coolant bottle (J) must be
filled with a sufficient amount of cutting fluid.
overload
FIG. 4
J
K
E
T
V
M
overload
U
L
K
FILLING THE COOLANT BOTTLE
1. Make sure the flow regulator (M) is closed.
2. Unscrew the cap (V).
3. Fill the container with cutting coolant diluted with water.
4. Screw the cap back on.
