Installing the machine
1. Assemble the feed handle.
2. Mount the drill guard.
3. Fit the lubrication system as necessary.
4. Place the machine on a clean, level and solid surface. Remove
any particles that will obstruct full contact between the magnetic
stand and the mounting surface.
5. Fit and tighten the safety chain (O, Fig. 5).

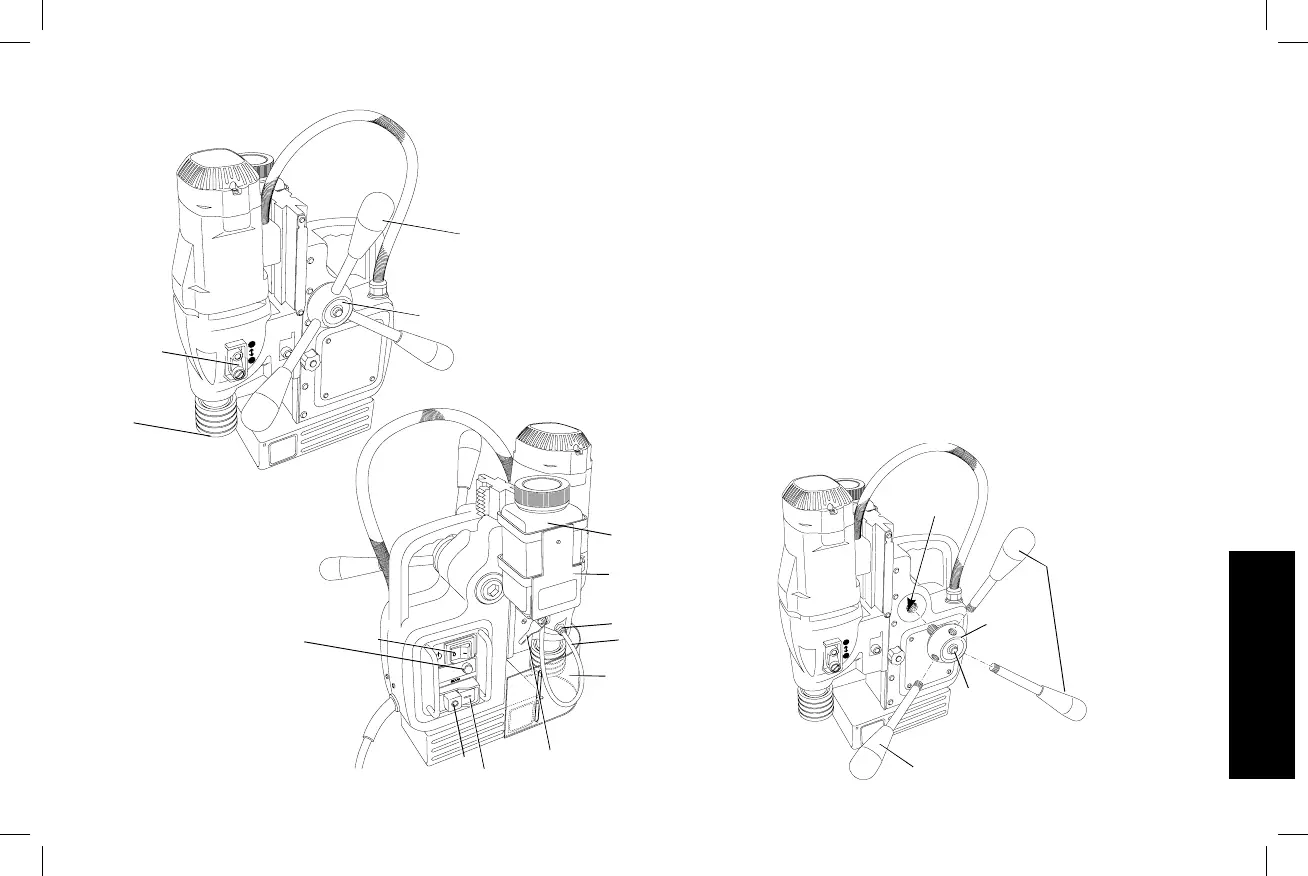

Assembling the feed handle (fig. 1, 2)
The quick-release feed handle (F) can be mounted in one simple
operation both to the left and the right of the machine.
1. Screw the handles (F) into the hub (G).
2. Keep the button (P) depressed while inserting the hub shaft into
the hole (Q).
3. Release the button.
2
1
FIG. 2
F
G
P
Q
F
overload
FIG. 1
A
B
D
H
F
J
K
C
G
L
M
N
E
I
