Motor
Be sure your power supply agrees with the nameplate marking.
Voltage decrease of more than 10% will cause loss of power and
overheating. D
WALT tools are factory tested; if this tool does not
operate, check power supply.
COMPONENTS (Fig. 1, 6)
WARNING: Never modify the power tool or any part of it. Damage
or personal injury could result.
A. Spindle lock button
B. Spindle
C. Side handle
D. Backing flange
E. Threaded clamp nut
F. Guard
G. Slider switch
H. Paddle switch
I. Lock on Button
J. Lock off lever (Fig. 6)
K. Guard release lever
INTENDED USE
This grinder is designed for professional grinder, sander, wire brush or
cut-off applications.
DO NOT use under wet conditions or in presence of flammable
liquids or gases.
This grinder is a professional power tool. DO NOT let children come
into contact with the tool. Supervision is required when inexperienced
operators use this tool.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of injury, turn unit off and
disconnect it from power source before installing and removing
accessories, before adjusting or when making repairs. An
accidental start-up can cause injury.

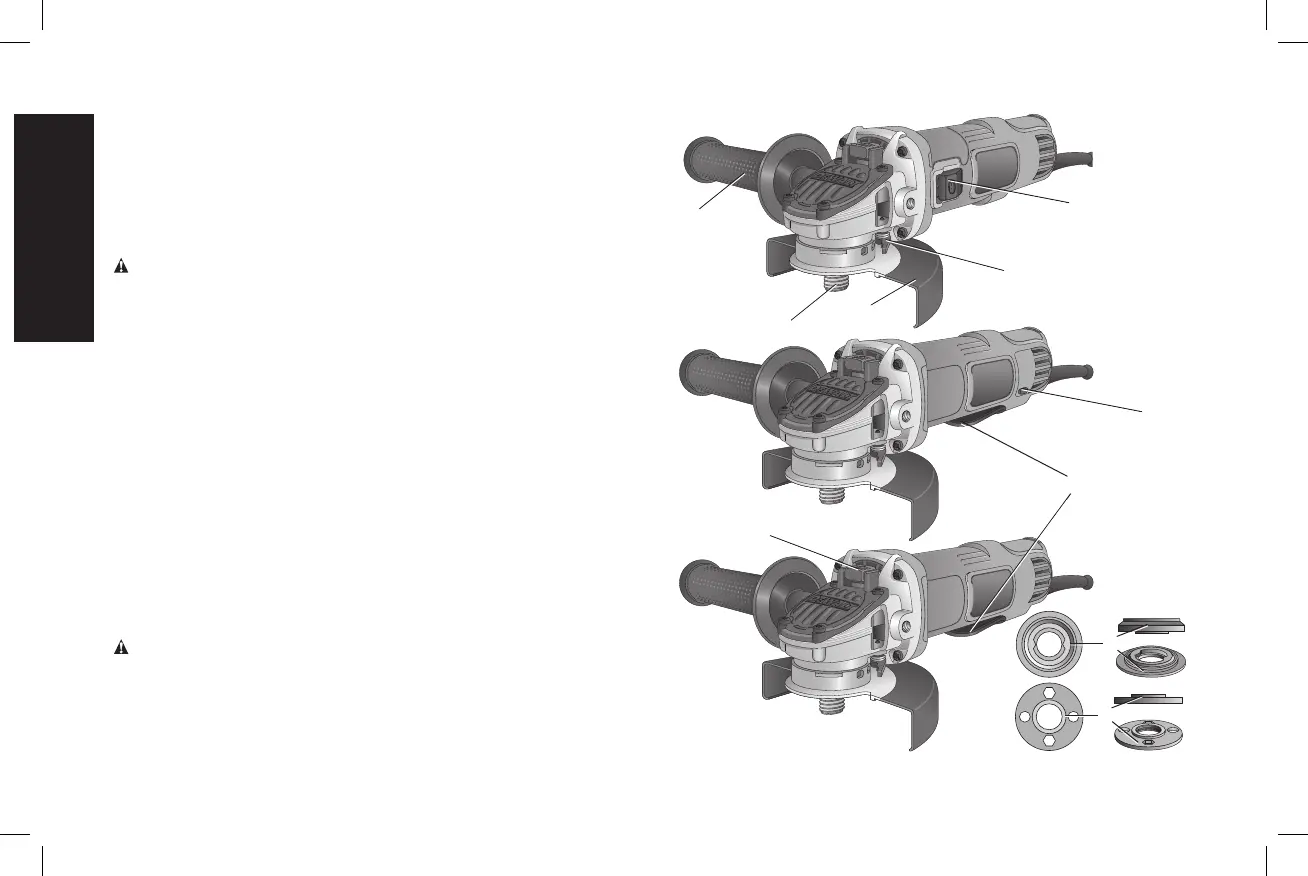

FIG. 1
E
D
DWE4100
DWE4120
DWE4120N
G
I
H
A
F
C
K
B
8
