This dust extraction system will fit most
DeWALT
corded and
cordless SDSPlus rotary hammers, corded hammer drills
and premium cordless drill/driver/hammerdrills.
DO NOT use under wet conditions or in presence of
flammable liquids orgases.
The dust extraction system is an attachment for use with
professional powertools.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.

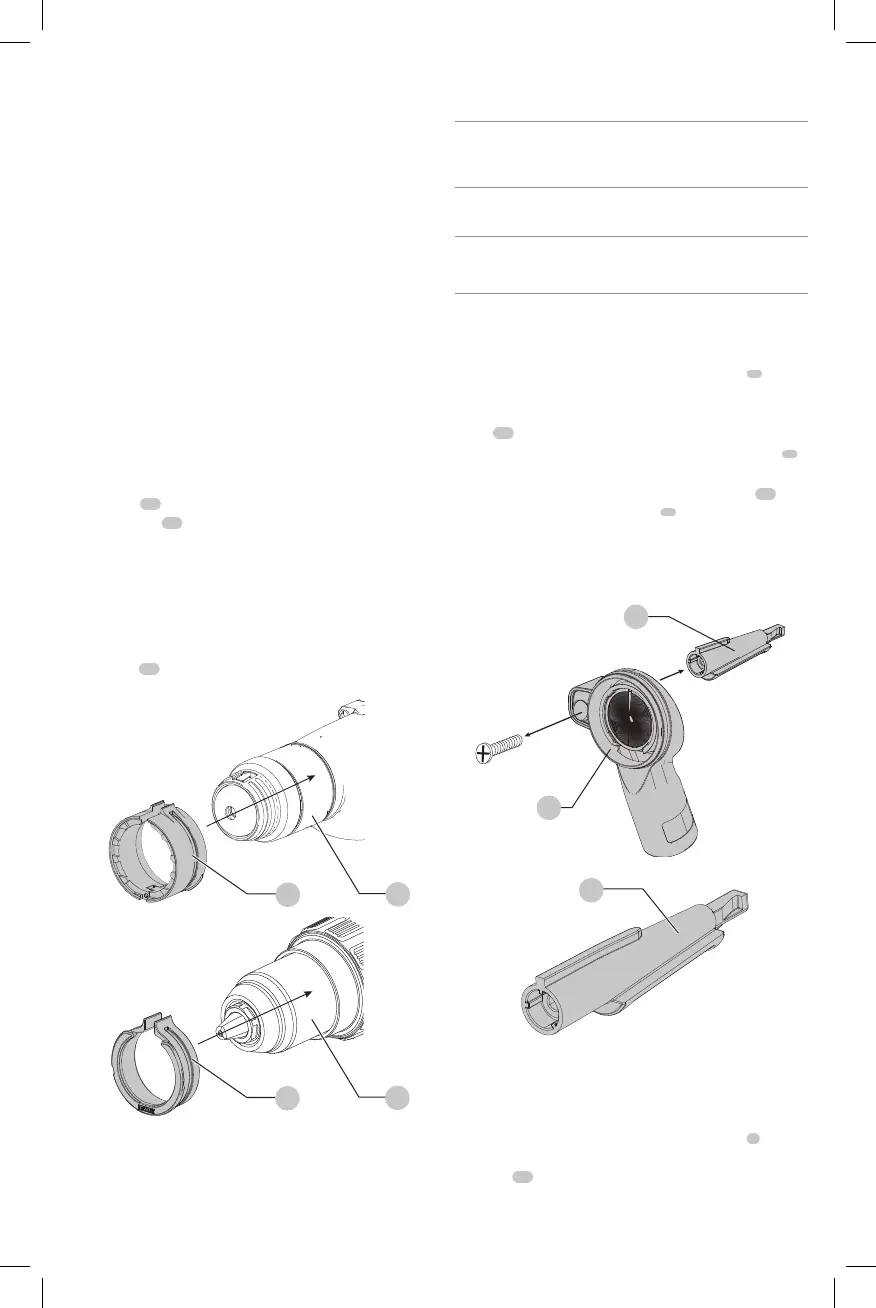

Attaching the Ring Adapter (Fig. A, B)
Your dust extraction system comes with two adapters;
a metal ring adapter with hinge for SDS Plus rotary
hammers
15
and a plastic ring adapter for percussion
hammerdrills
16
.
Refer to the Fitment Guide chart for proper adapteruse.
NOTE: If the diameter of the tool's collar is 54 mm, no ring
adapter isneeded.
1. If a ring adapter is needed, choose the correct ring
adapter for yourtool.
2. Open the ring adapter and slide it onto the tool's
collar
19
as shown in FigureB.
NOTE: The adapter will slide back and forth on thetool.
15
19
Fig. B
16
19
FITMENT GUIDE
No adapter collar needed
D25333, DCH293, D25263, DCH263,
DCH273, D25262, D25323, DCH253,
DCH213, D25223, D25213, D25123
Toothed adapter needed
DCH133, D25133, D25260, D25052,
D25012, D25023, DWD525, DWD520
Smooth adapter needed
DCD950, DCD970, DCD985, DCD995,
DCD996, DCD997
Assembling the Dust Extraction System
(Fig.A, C–E)
The standard SDS Plus tool holder adapter (short)

14

comes attached to some tools. But if your tool requires the
Quick Change Chuck (QCC) SDS Plus tool holder adapter
(long)
13
, assemble asfollows.
1. Remove the cross head screw from the short adapter

14

using a cross head screwdriver (Fig. C). Then use the
screw to assemble the long tool holder adapter
13
(Fig.D) to the dust brush body

18

. Tightensecurely.
2. Carefully slide the newly assembled dust brush and
tool holder adapter into the slot on the top of the side
handle assembly until you hear a click (Fig. E).
14
18
Fig. C
13
Fig. D
Attaching the Dust Extraction System to
the Tool (Fig.A, F)
1. Slide the assembled dust extraction system onto
the nose of the tool through the ring opening
2
,
past the tool holder andsleeve and onto the tool's
collar
19
. If a ring adapter is needed, refer to Attaching
theRingAdapter.
