DeWalt DWH200D User Manual

ENGLISH
5
5
4
Fig. G
10
11

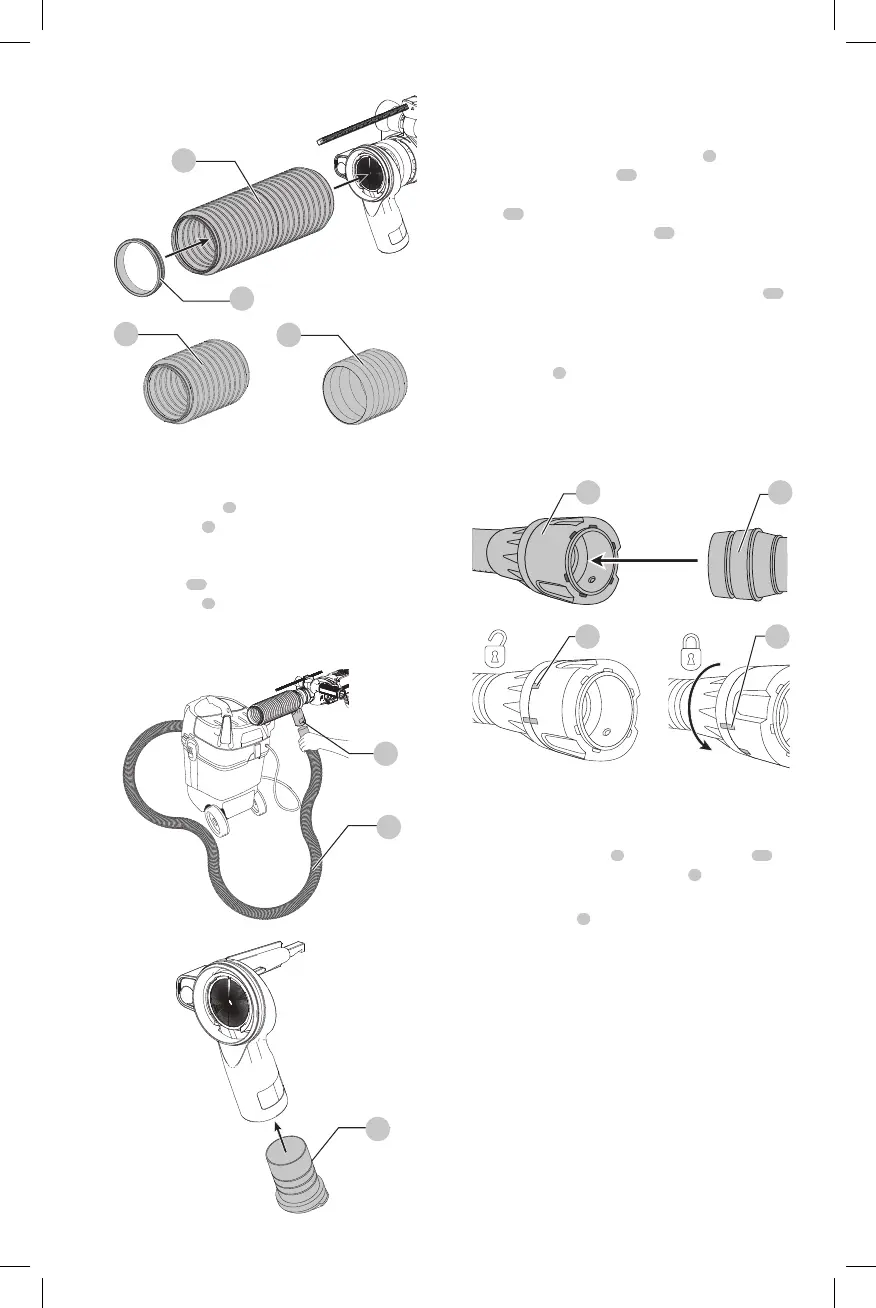

Attaching a Dust Extractor to the Dust
Extraction Assembly (Fig. H–J)
1. Insert the dust hose
8
into the dust extraction
connection port
7
and a dust extractor (Fig. H).
NOTE: The dust extraction system is compatible with
or without a dust extractor. The tool can be used
with the plug
17
inserted in the dust extraction
connection port
7
(Fig. I). If you are using the plug, it
is recommended you remove the dust from the bellow
after drilling eachhole.
8
7
Fig. H
17
Fig. I
AirLock Compatible (Fig. A, H–J)
Your D
e
WALT dust extractor is compatible with the D
e
WALT
AirLock connection system. The AirLock allows for a fast,
secure connection between the dust hose
8
and power
tool. The AirLock connector
20
(Fig. J) connects directly to
D
e
WALT compatible tools or through the use of an AirLock
adapter
21
(available from your local D
e
WALTsupplier).
NOTE: If using an AirLock adapter
21
, ensure it is firmly
attached to the tool outlet before following the stepsbelow.
1. Ensure the collar on the AirLock connector is in the
unlock position. (Refer to FigureJ.) Align notches
23
on
collar and AirLock connector as shown for unlock and
lockpositions.
2. Push the AirLock connector onto the dust extraction
system hose
8
.
3. Rotate the collar to the lockedposition.
NOTE: The ball bearings inside collar lock into the slot
and secure the connection. The dust extraction system is
now securely connected to the dustextractor.
20 21
2323
Fig. J
Removing the Dust Extraction System
from the Tool (Fig. A, I)
1. Remove the dust hose
8
or the dust port plug
17
from
the dust extraction connection port
7
.
2. Remove the bit from the toolholder.
3. Turn side handle
1
to loosen and slide from the nose
of thetool.
4. If a ring adapter was used, open and remove the adapter
from the nose ofthetool.
OPERATION
Instructions for Use

WARNING: Always observe the safety instructions
and applicableregulations.

WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect tool from
power source before making any adjustments or
removing/installing attachments or accessories.
Be sure the trigger switch is in the OFF position. An
accidental start-up can causeinjury.
