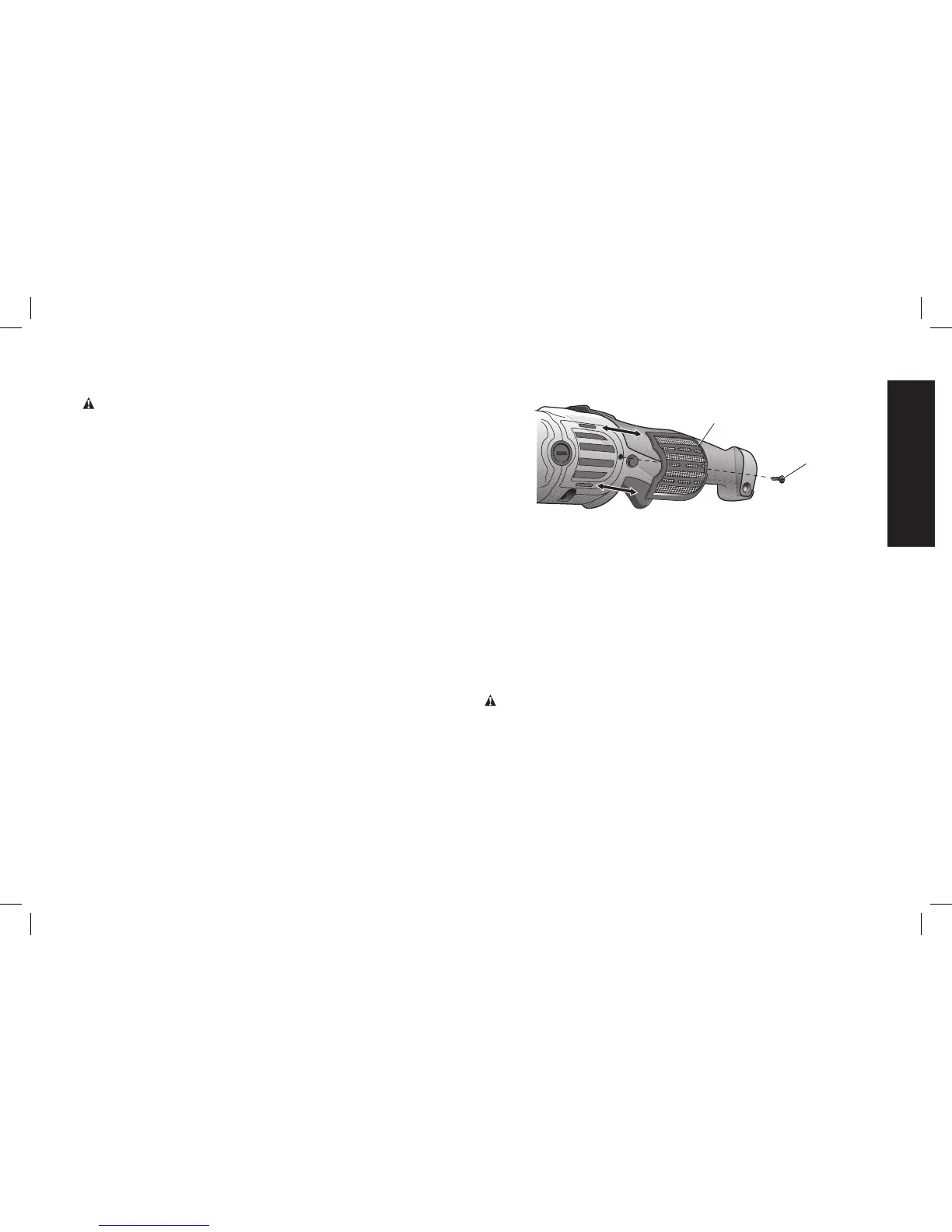

FIG. 2
K
L
Soft Rubber Gear Case Cover (Fig. 1)
The soft rubber gear case cover (J) is designed to eliminate metal gear
case scuffs on painted or polished surfaces.
The soft rubber gear case cover can be removed if required. To take
off the cover, remove the three mounting screws and lift the cover over
the gear case.
Your tool may come with a soft rubber gear case cover. The soft
rubber gear case cover is available at extra cost from your local dealer
or authorized service center.
OPERATION
WARNING: To reduce the risk of serious personal injury,
turn tool off and disconnect tool from power source before
making any adjustments or removing/installing attachments or
accessories. Before reconnecting the tool, depress and release
the trigger switch to ensure that the tool is off.
Polishing pads with a diameter of 6", 7" or 9" (15.2, 17.8 or 22.9 cm)
may be used with the DWP849 and DWP849X.
Spindle Lock Button (Fig. 1)
WARNING: To reduce the risk of serious personal injury,
turn tool off and disconnect tool from power source before
making any adjustments or removing/installing attachments or
accessories. Before reconnecting the tool, depress and release
the trigger switch to ensure that the tool is off.
In order to prevent the spindle of the tool from rotating while installing
or removing accessories, a spindle lock button (E) has been provided
in the gear head of the machine. To lock the spindle, depress and hold
the lock button. NEVER DEPRESS THE SPINDLE LOCK BUTTON
WITH THE TOOL RUNNING OR COASTING.
Wool Ingestion Shields (Fig. 1, 2)
The wool ingestion shields (K) are designed to reduce the amount of
wool, dust, and debris that gets ingested by the motor during normal
use. The goal of the ingestion shields is to improve durability as
compared to a unit without the ingestion shields.
Each ingestion shield can be easily removed for cleaning by removing
the mounting screw (L), followed by sliding the shield back towards the
trigger end of the tool and then lifting it off.
The wool ingestion shields can be cleaned with soap and water and a
soft bristle brush in the event they get clogged with polish and debris.
Clean the shields as soon as you start to see buildup on the outside.
Your tool may come with a set of wool ingestion shields. The wool
ingestion shields are available at extra cost from your local dealer or
authorized service center.
