DeWalt DXCM201 - Product Specifications and Components; Air Compressor Components; Pump and Model Specifications

2
English
Air Compressor

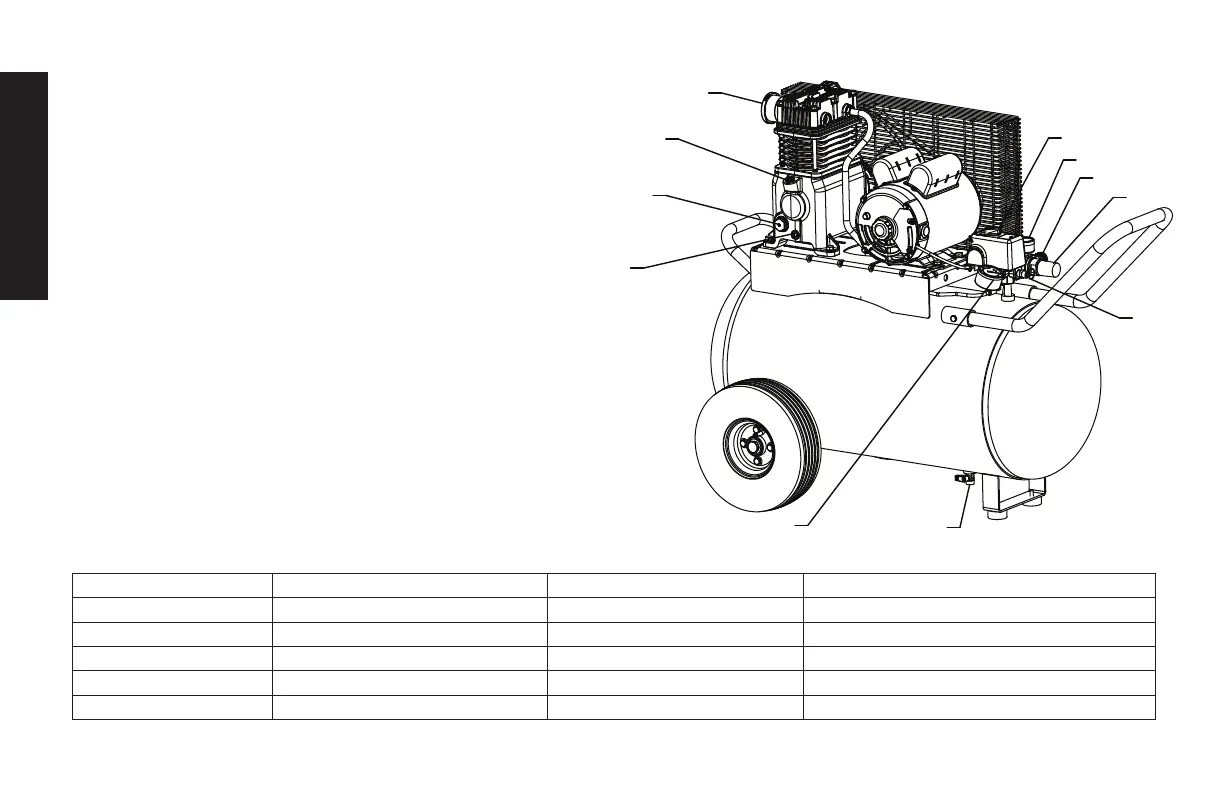

A. Pump Air Intake Filter
B. Auto(-)/Off(O) Switch
C. Air Tank Pressure Gauge
D. Regulated Pressure Gauge
E. Pressure Regulator
F. Air Outlet
G. Safety Valve
H. Air Tank Drain Valve
I. Pump Oil Fill Plug
J. Pump Oil Drain Plug
K. Pump Oil Sight Glass
L. Quick Connect
Pump Specifications
2 Cylinder
Single Stage
Oil Lubricated
Cast iron crankcase, cylinder, and aluminum head
Weight: 27.0 lbs (12.2 kg.)
Oil Capacity: 16 fl. oz. (473 mL)
Specifications
MODEL DXCM201
APPROX. CUT OUT PRESSURE
200 PSI
WEIGHT 137 lbs. (62.1 kg)
AIR DELIVERY 6.2 SCFM @ 90 PSI
HEIGHT 32"
TANK FILL TIME 5.5 MINUTES
WIDTH 22"
INPUT
120V, 60HZ, SINGLE PHASE AC ONLY, 15 AMPS
LENGTH 33" WITHOUT FRONT HANDLE MIN. BRANCH CIRCUIT REQ 20 AMPS
AIR TANK CAPACITY 20 GALLONS (75.7 L) FUSE TYPE TIME DELAY
A
B
C
D
E
F/L
G
H
I
J
K
