DeWalt DXCM272 - Pump;Motor Specifications

2
English

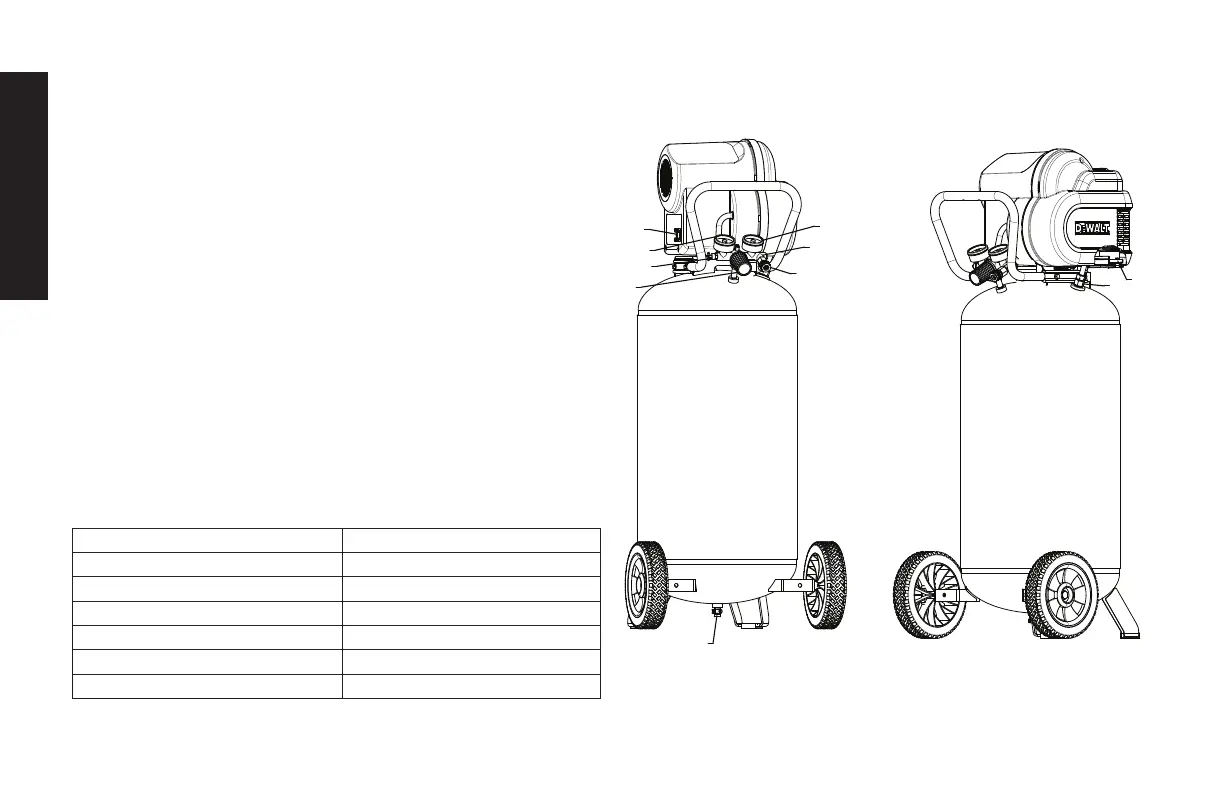

Air Compressor
A. Pump Air Intake Filter
B. Auto (1) / Off (O) Switch
C. Air Tank Pressure Gauge
D. Regulated Pressure Gauge
E. Pressure Regulator
F. Air Outlet
G. Safety Valve
H. Air Tank Drain Valve
I. Check Valve
J. Quick Connect
Pump/Motor Specifications
Oil Free
Direct Drive
5.1 SCFM @ 90 PSI
VOLTAGE: Single Phase 120V
MINIMUM BRANCH CIRCUIT REQUIREMENT: 15A
FUSE TYPE: Time Delay
Specifications
MODEL DXCM272 (CSA# U3A1758ND)
WEIGHT 101 lbs. (45.8 kg)
HEIGHT 49.75"
WIDTH 21"
LENGTH 20"
AIR TANK CAPACITY 27 gallons (102,2 liters)
APPROX. CUT-OUT PRESSURE 175 PSI
H
J
F
D
A
I
B
C
G
E
FIG. 1
