Magnetic Portion
of Control
Tip Over
Switch
Thermocouple
Tip Over
Switch
Leads
Adaptor
Leads
Heater Bottom
Control
4
1
5

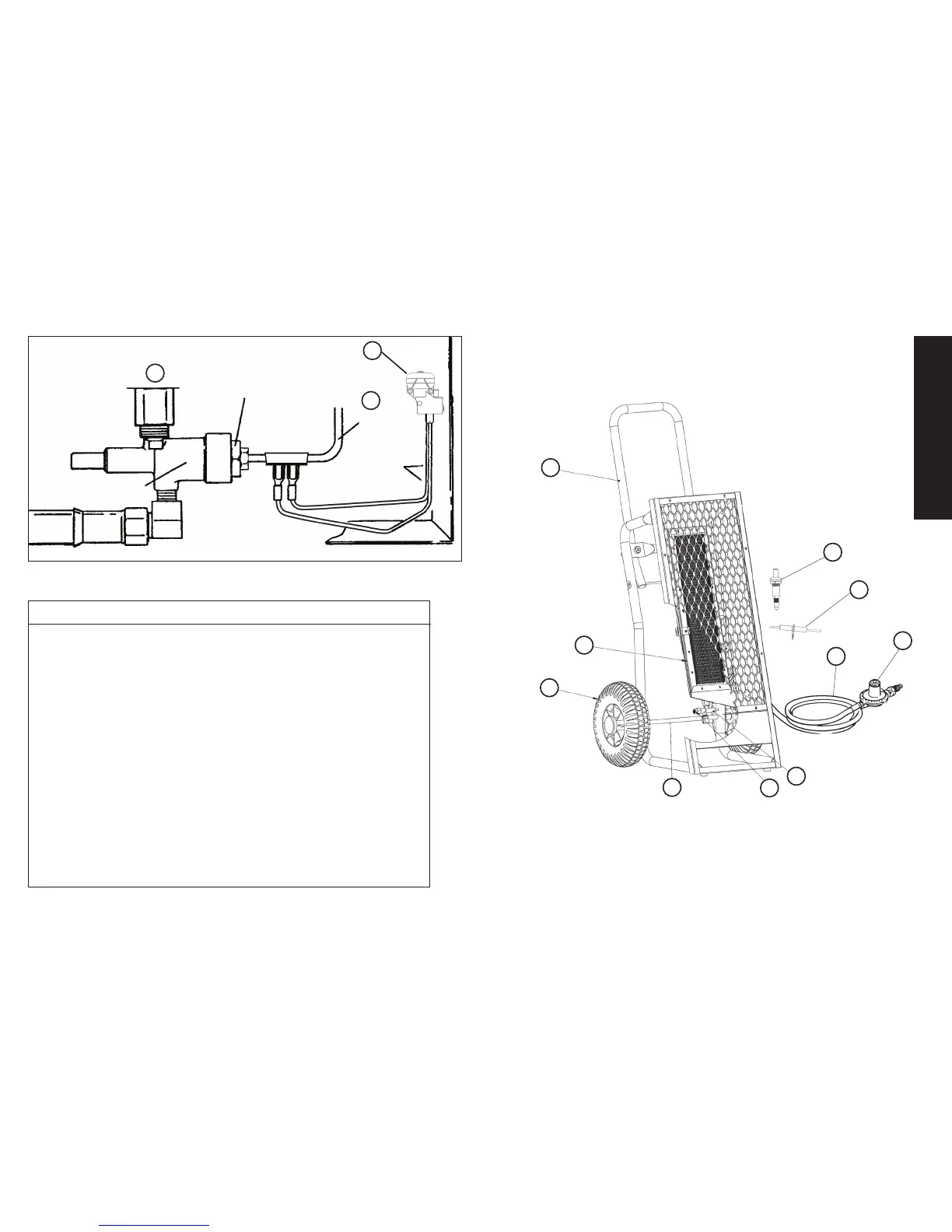

Figure 2
TIP‑OVER SWITCH ARRANGEMENT
NOTE: The purpose of the tip-over Switch is to stop the flow of gas when
heater is accidentally knocked over. When and if the heater is knocked over,
simply stand heater up.
R E F. # ..............ITEM# DESCRIPTION
1 ...................23525 ............. CONT M-N SS PORT 3/8MPXI/4MP
2 ...................23526 ............. BURNR/LTFR PORTABLES/D1096
3 ...................70758 ............. ORIFICE/BURNER #53 DRILL
4 ...................21920 ............. THERMOCOUPLE ASSY/18”
5 ...................4 2116 .............. TIP-OVER SWITCH
7 ...................11663 ............. REC.L/P 21” WC OUT
8 ...................23531 ............. IGNITOR, MODEL #45
9 ...................20735 ............. PIEZO, MODEL #45
10 ...................22169 ............. WHEEL, MODEL #45
11 ...................70757 ............. FRAME ASS’Y W/HANDLE
12 ...................23534 ............ HANDLE LOCKING KNOBS (2)*
13 ...................70756 ............. AXLE
14 ...................16671-20 ........ HOSE, 20’
15 ...................28787 ............. HARDWARE KIT*
*Part not shown.
Replacement Parts List
IF SERVICE IS REQUIRED
PLEASE DO NOT RETURN THIS APPLIANCE TO YOUR STORE
For information regarding service, please call our Toll-Free Number: 855-805-5745.
Our office hours are 8:30 AM to 5:00 PM, Eastern Time Zone, Monday through Friday
Please include the model number, date of purchase and description of problem in all
communication.
11
2
10
3
13
1
9
8
14
7
