Air Compressor
A. Pump Air Intake Filter
B. Auto (-) / Off (O) Switch
C. Air Tank Pressure Gauge
D. Regulated Pressure Gauge
E. Pressure Regulator
F. Air Outlet
G. Safety Valve
H. Air Tank Drain Valve
I. Check Valve
J. Quick Connect
Pump/Motor Specifications
Oil Free
Direct Drive
5.1 SCFM @ 90 PSI
VOLTAGE: Single Phase 120V
MINIMUM BRANCH CIRCUIT REQUIREMENT: 15A
FUSE TYPE: Time Delay
Specifications
MODEL DXCM271 (CSA# U3A2008X)
WEIGHT 111 lbs. (50.3 kg)
HEIGHT 50.6"
WIDTH 24.2"
LENGTH
21.3"
AIR TANK CAPACITY 27 gallons (102,2 liters)
APPROX. CUT-OUT PRESSURE
200 PSI
G
I
D
F
B
A
C
J
E
H

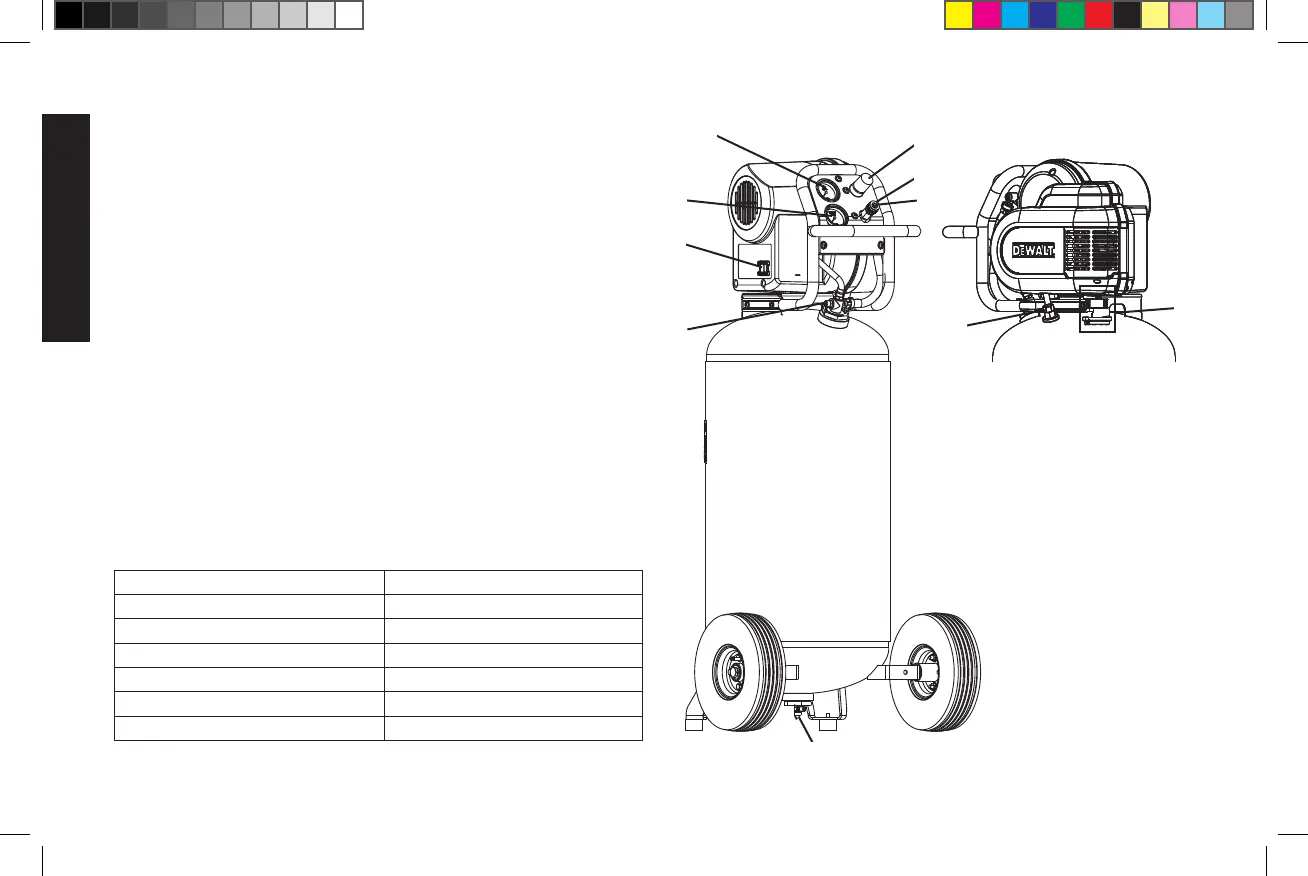

FIG. 1
