11
ENGLISH

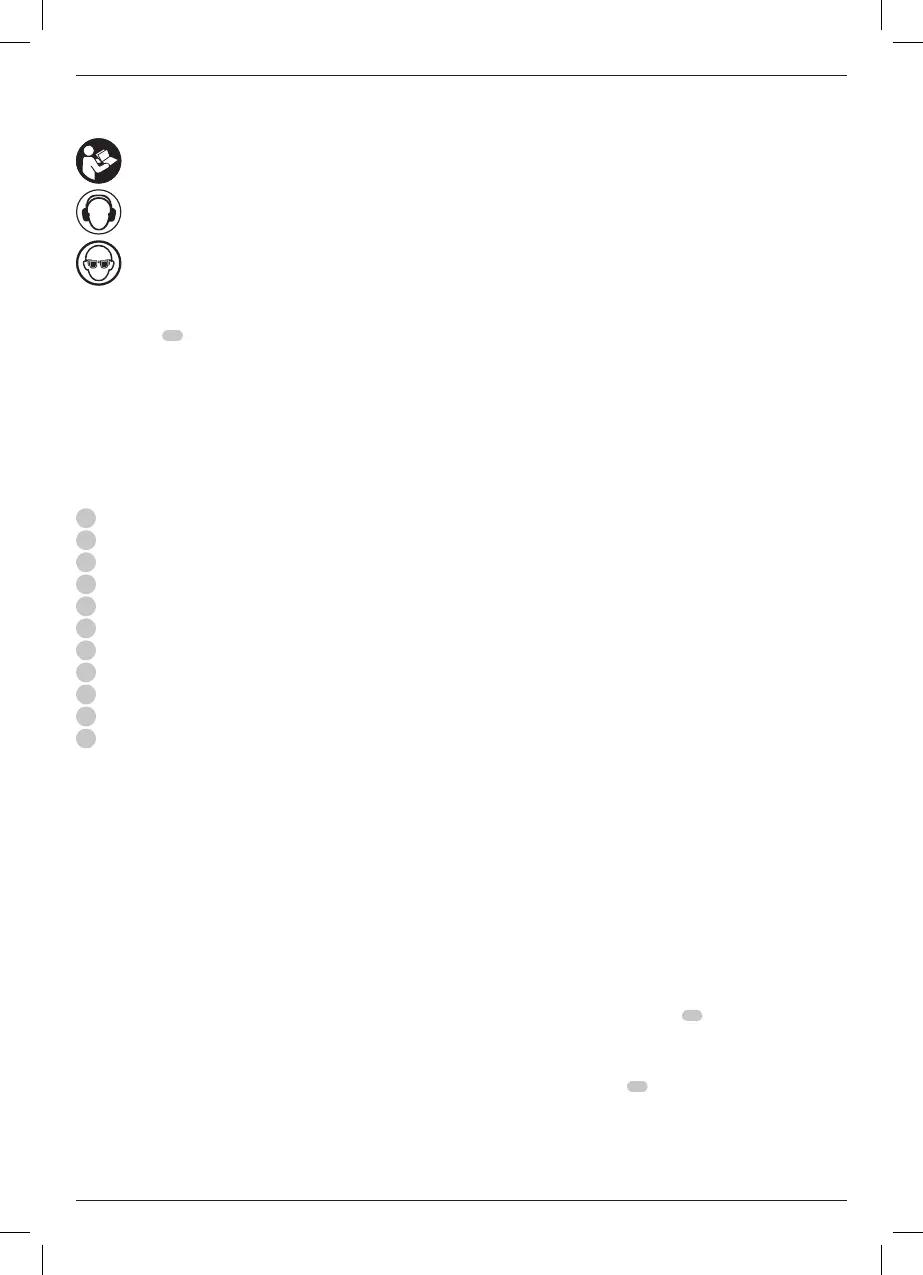

Markings on Tool
The following pictograms are shown on the tool:
Read instruction manual beforeuse.
Wear earprotection.
Wear eyeprotection.
Date Code Position (Fig. E)
The date code
15
, which also includes the year of manufacture,
is printed into thehousing.
Example:
2017 XX XX
Year of Manufacture
Description (Fig. A)
WARNING: Never modify the power tool or any part of it.
Damage or personal injury couldresult.
1
Slider switch
2
Lock-off lever
3
Spindle lock button
4
Spindle
5
Side handle
6
Backing flange
7
Locking flange
8
Guard
9
Guard release lever
10
Battery pack
11
Battery release button
Intended Use
Your cordless angle grinder has been designed for professional
cutting, grinding, sanding and wire brushapplications.
DO NOT use grinding wheels other than centre depressed
wheels and flapdiscs.
DO NOT use under wet conditions or in the presence of
flammable liquids orgases.
Your cordless angle grinder is a professional powertool.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
• Young children and the infirm. This appliance is not
intended for use by young children or infirm persons
withoutsupervision.
• This product is not intended for use by persons (including
children) suffering from diminished physical, sensory or
mental abilities; lack of experience, knowledge or skills
unless they are supervised by a person responsible for their
safety. Children should never be left alone with thisproduct.
Features
Kickback Brake™
When a pinch, stall, or bind-up event is sensed, the electronic
brake engages with maximum force to quickly stop the wheel,
reduce the movement of the grinder, and shut the grinder
off. The switch will need to be released then depressed to
restarttool.
Power-OFF™ Overload Protection
The power supply to the motor will be reduced in case of
motor overload. With continued motor overload, the tool will
shut off. The switch will need to be released then depressed
to restarttool. The tool will power off each time the current
load reaches the overload current value (motor burn-up point).
If continued overload shutdowns occur, apply less force/
weight on the tool until the tool will function without the
overloadengaging.
Anti-vibration Side Handle
The anti-vibration side handle offers added comfort by
absorbing the vibrations caused by thetool.
Soft Start Feature
The soft start feature allows a slow speed build-up to avoid an
initial jerk when starting. This feature is particularly useful when
working in confinedspaces.
No-Volt
The No-volt function stops the grinder restarting without the
switch being cycled if there is a break in the powersupply.
Electronic Clutch
The electronic torque limiting clutch reduces the maximum
torque reaction transmitted to the operator in case of jamming
of a disc. This feature also prevents the gearing and electric
motor from stalling. The torque limiting clutch has been factory-
set and cannot beadjusted.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn tool off and disconnect battery pack
before making any adjustments or removing/
installing attachments or accessories. An accidental
start-up can causeinjury.
WARNING: Use only
battery packs andchargers.
Inserting and Removing the Battery Pack
from the Tool (Fig. B)
NOTE: Make sure your battery pack
10
is fullycharged.
To Install the Battery Pack into the Tool
Handle
1. Align the battery pack
10
with the rails inside the tool’s
handle (Fig. B).
2. Slide it into the handle until the battery pack is firmly seated
in the tool and ensure that you hear the lock snap intoplace.
