DeWalt XR LI-ION DCN680 Original Instructions

10
ENGLISH
Date Code Position
The date code, which also includes the year of manufacture, is
printed into thehousing.
Example:
2020 XX XX
Year of Manufacture

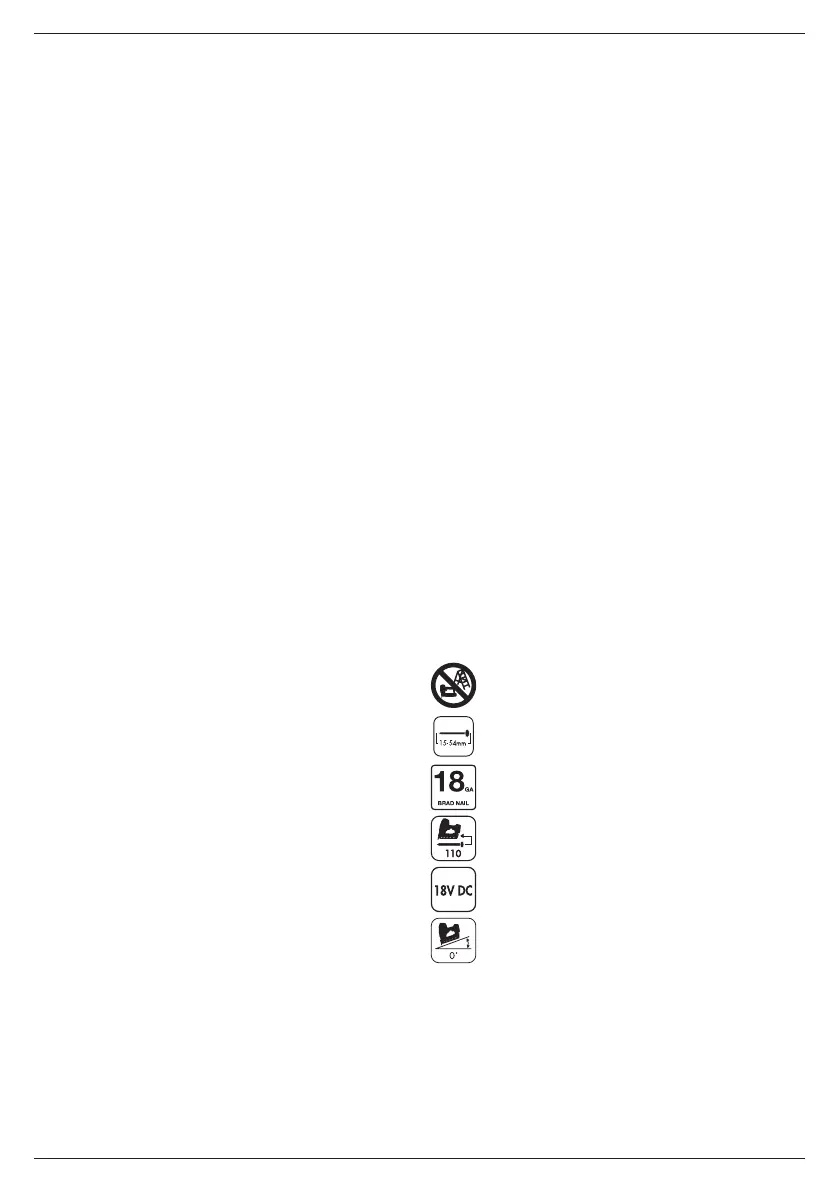

Do not operate tool on scaffoldings,ladders.
Length ofnails.
Nailgauge.
Magazinecapacity.
Toolvoltage.
Magazine angle: 0˚.
Markings on Tool
The following pictograms are shown on the tool:
a
Read instruction manual beforeuse.
g
Wear earprotection.
f
Wear eyeprotection.
Package Contents
The package contains:
1 Nailer
3 Non‑mar tips
1 Charger
1 Li‑Ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1, Y1 models)
2 Li‑Ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2, Y2 models)
3 Li‑Ion battery packs (C3, D3, L3, M3, P3, S3, T3, X3, Y3 models)
1 Instruction manual
NOTE: Battery packs, chargers and kitboxes are not included
with N models. Battery packs and chargers are not included with
NT models. Bmodels include Bluetooth® batterypacks.
NOTE: The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth®, SIG, Inc. and any use of
such marks by DEWALT is under license. Other trademarks and
trade names are those of their respectiveowners.
• Check for damage to the tool, parts or accessories which may
have occurred duringtransport.
• Take the time to thoroughly read and understand this manual
prior tooperation.
Battery Type
The following SKU(s) operate on a 18 volt battery pack: DCN680
These battery packs may be used: DCB181, DCB182, DCB183,
DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189,
DCB546, DCB547, DCB548. Refer to Technical Data for
moreinformation.
2. For long storage, it is recommended to store a fully charged
battery pack in a cool, dry place out of the charger for
optimalresults.
NOTE: Battery packs should not be stored completely
depleted of charge. The battery pack will need to be recharged
beforeuse.
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels
on the charger and the battery pack may show the following
pictographs:
L
Read instruction manual beforeuse.
p
See Technical Data for chargingtime.
q
Do not probe with conductiveobjects.
r
Do not charge damaged batterypacks.
s
Do not expose towater.
t
Have defective cords replacedimmediately
u
Charge only between 4˚C and 40˚C.
v
Only for indooruse.
x
Discard the battery pack with due care for
theenvironment.
y
Charge DEWALT battery packs only with designated
DEWALT chargers. Charging battery packs other than
the designated DEWALT batteries with a DEWALT
charger may make them burst or lead to other
dangeroussituations.
z
Do not incinerate the batterypack.
B
USE (without transport cap). Example: Wh rating
indicates 108Wh (1battery with 108Wh).
A
TRANSPORT (with built‑in transport cap). Example: Wh
rating indicates 3x 36Wh (3batteries of 36Wh).

DeWalt XR LI-ION DCN680 Specifications

General

Type	Cordless Brad Nailer
Battery Type	20V MAX Lithium-Ion
Nail Diameter	18 gauge
Magazine Capacity	110 nails
Tool-Free Jam Release	Yes
Battery Included	No
Charger Included	No
Firing Mode	Sequential
Depth Adjustment	Yes
Nail Length	5/8" to 2-1/8"
Weight	5.3 lbs (without battery)
